Model
Maytag MGD6600TQ1
29" Gas Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGD6600TQ129" Gas Dryer
4 diagrams154 parts
Parts Sections (4)
Diagram

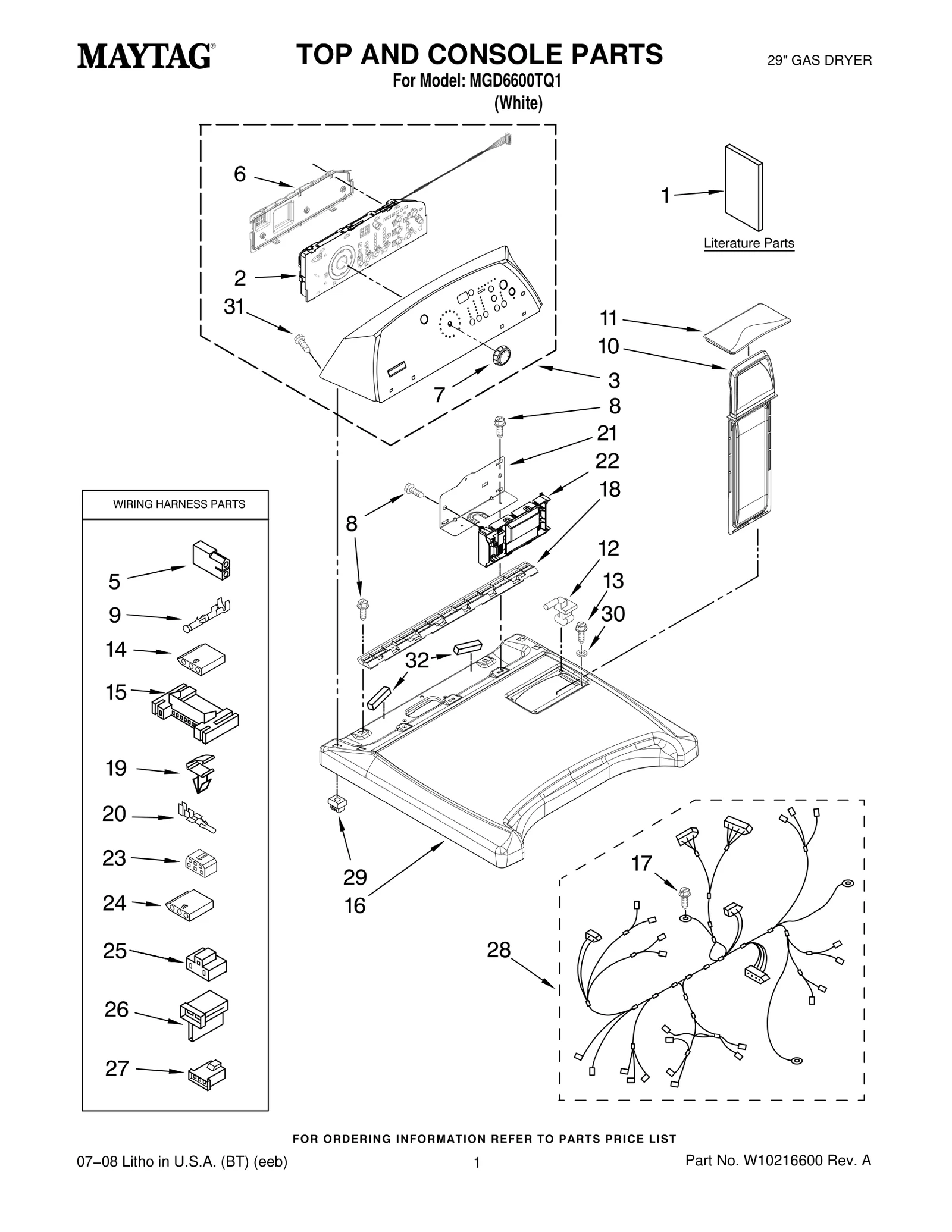

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10160249 Guide, Quick Start | - |
| 1 | – | W10160251 Use & Care Guide | - |
| 1 | – | W10156041 Tech Sheet | - |
| 1 | – | W10160248 Tip Sheet | - |
| 1 | – | W10165147 Sheet, Steam Tip | - |
| 2 |  | W10051167NLA Assembly, User Interface | Discontinued |
| 3 | – | W10131472 Console Assembly | - |
| 4 |  | WP4449745replaces W10003770 Screw, 6−19 x 3/64 | - |
| 5 | | 717252NLA Plug, 2 Way Terminal | Discontinued |
| 6 |  | Cover, Rear UI−Assembly | - |
| 7 | | Knob, Assembly | - |
| 8 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 9 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 10 |  | WP8572270replaces 8572270 Assembly, Lint Screen | $45.40 Part Advantage |
| 11 | | W10168227NLA Cover, Lint Screen | Discontinued |
| 12 |  | WPW10044470replaces W10044470 Hinge, R.H. | $3.38 Part Advantage |
| 12 |  | WPW10044480replaces W10044480 Hinge, L.H. | $3.38 Part Advantage |
| 13 |  | WP3196557replaces 3196537 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 14 |  | Connector | - |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | Top | - |
| 17 |  | WP681414replaces 343641 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 18 | | Bracket, Console | - |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 21 | | Bracket, Machine Controller | - |
| 22 | | W10111616NLA Control, Electronic | Discontinued |
| 23 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 24 |  | Connector Sensor | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 | | Harness, Wiring | - |
| 29 |  | Screw, Grommet (2) | - |
| 30 | – | 237446 Washer (Top/Chute) | - |
| 31 |  | Screw | - |
| 32 | | Seal−Foam | - |
