Model
Maytag MGD9800TK0
Gas Dryer
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGD9800TK0Gas Dryer
6 diagrams205 parts
Parts Sections (6)

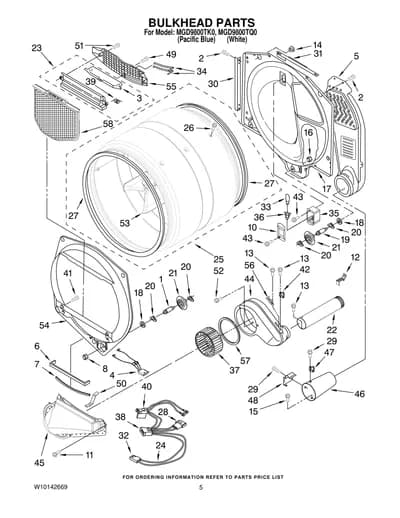

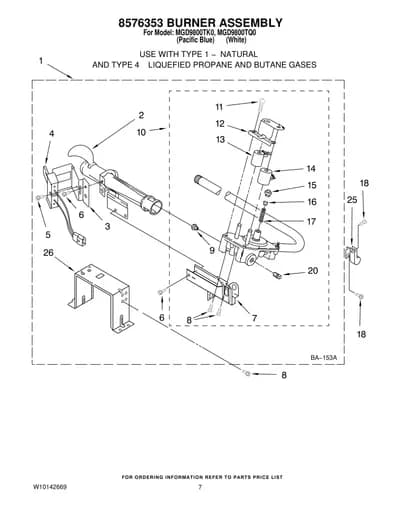

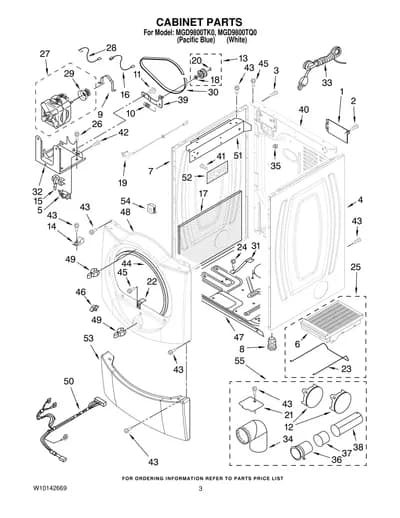

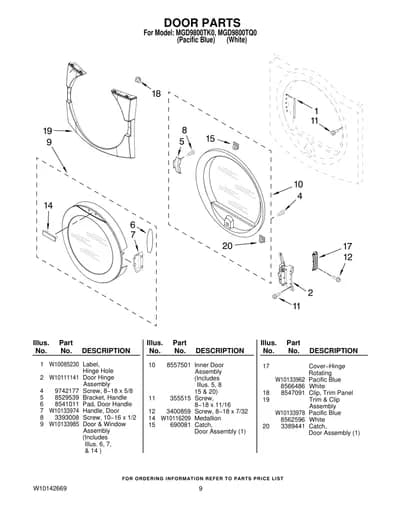

Diagram

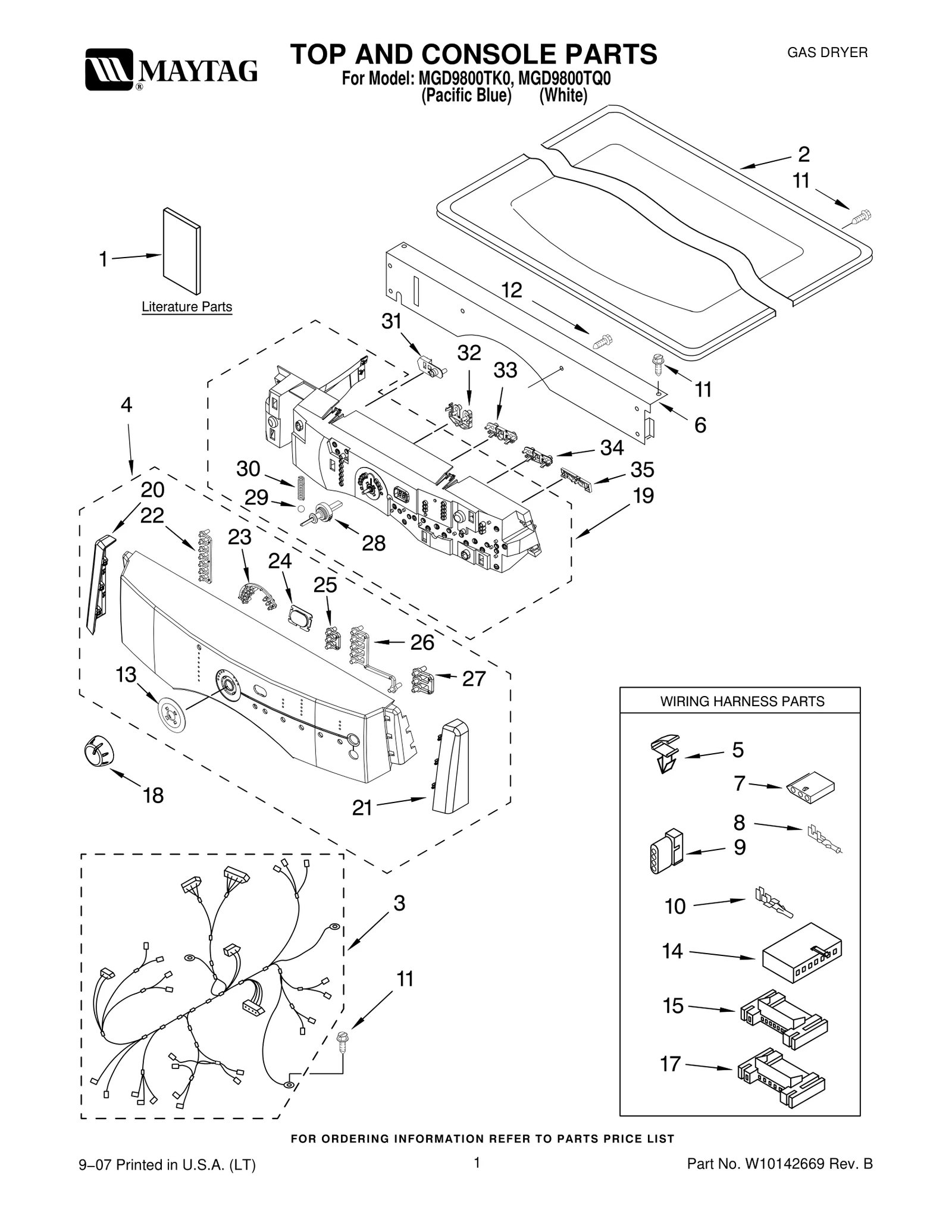

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10139630 Use & Care Guide | - |
| 1 | – | W10049500 Tech Sheet | - |
| 1 | – | W10099080 Guide, Quick Start | - |
| 2 | – | W10133996 Top — Pacific Blue | - |
| 2 | – | 3980634 Top — White | - |
| 3 |  | Harness, Main | - |
| 4 | | Panel, Console (Includes Bezel, Light Indicators & Endcaps) — Pacific Blue | - |
| 4 | | Panel, Console (Includes Bezel, Light Indicators & Endcaps) — White | - |
| 5 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 6 | – | 8519271 Bracket, Console | - |
| 7 |  | Connector, Sensor | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 |  | WP488787replaces 488886 Screw, 8−18 x 1/2 | $11.71 ApplianceParts Pro |
| 13 | | 8542690NLA Bezel, Cycle | Discontinued |
| 14 |  | Connector, 7−Circuit | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 17 |  | Connector, 5−Circuit | - |
| 18 | | Knob, Assembly | - |
| 19 | | 8558455NLA User Interface (Includes & 30) | Discontinued |
| 20 | – | W10133965 End Cap (L.H.) — Pacific Blue | - |
| 20 | | End Cap (L.H.) — White | - |
| 21 | – | W10133966 End Cap (R.H.) — Pacific Blue | - |
| 21 | | End Cap (R.H.) — White | - |
| 22 | – | 8542682 Light Indicator | - |
| 23 | – | 8542683 Light Indicator | - |
| 24 | – | 8542691 Lens, Display | - |
| 25 | – | 8542684 Light Indicator | - |
| 26 | – | 8542685 Light Indicator | - |
| 27 | – | 8542686 Light Indicator | - |
| 28 | | 8542717NLA Shaft, Cycle Selector | Discontinued |
| 29 | | 8542716NLA Bearing, Knob | Discontinued |
| 30 | | 8542715NLA Spring, Knob | Discontinued |
| 31 | | W10133970NLA Pushbutton, | Discontinued |
| 32 | – | W10133967 Pushbutton, | - |
| 33 | – | W10133968 Pushbutton, | - |
| 34 | – | W10133969 Pushbutton, | - |
| 35 | | W10133971NLA Pushbutton, | Discontinued |
