Model
Maytag MGDB400VQ0
Gas Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGDB400VQ0Gas Dryer
4 diagrams138 parts

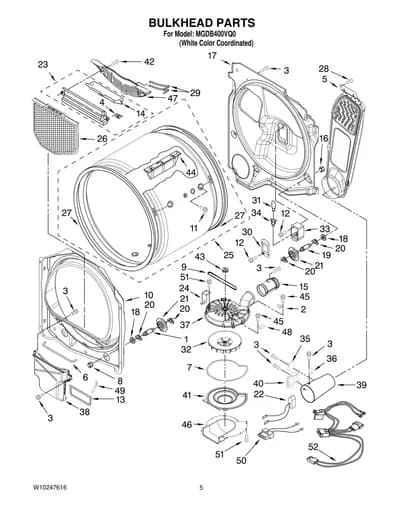

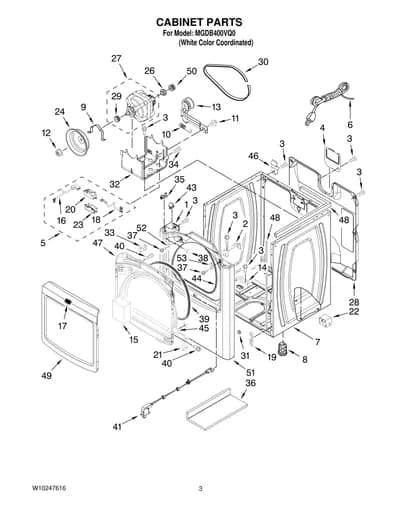

Parts Sections (4)
Diagram

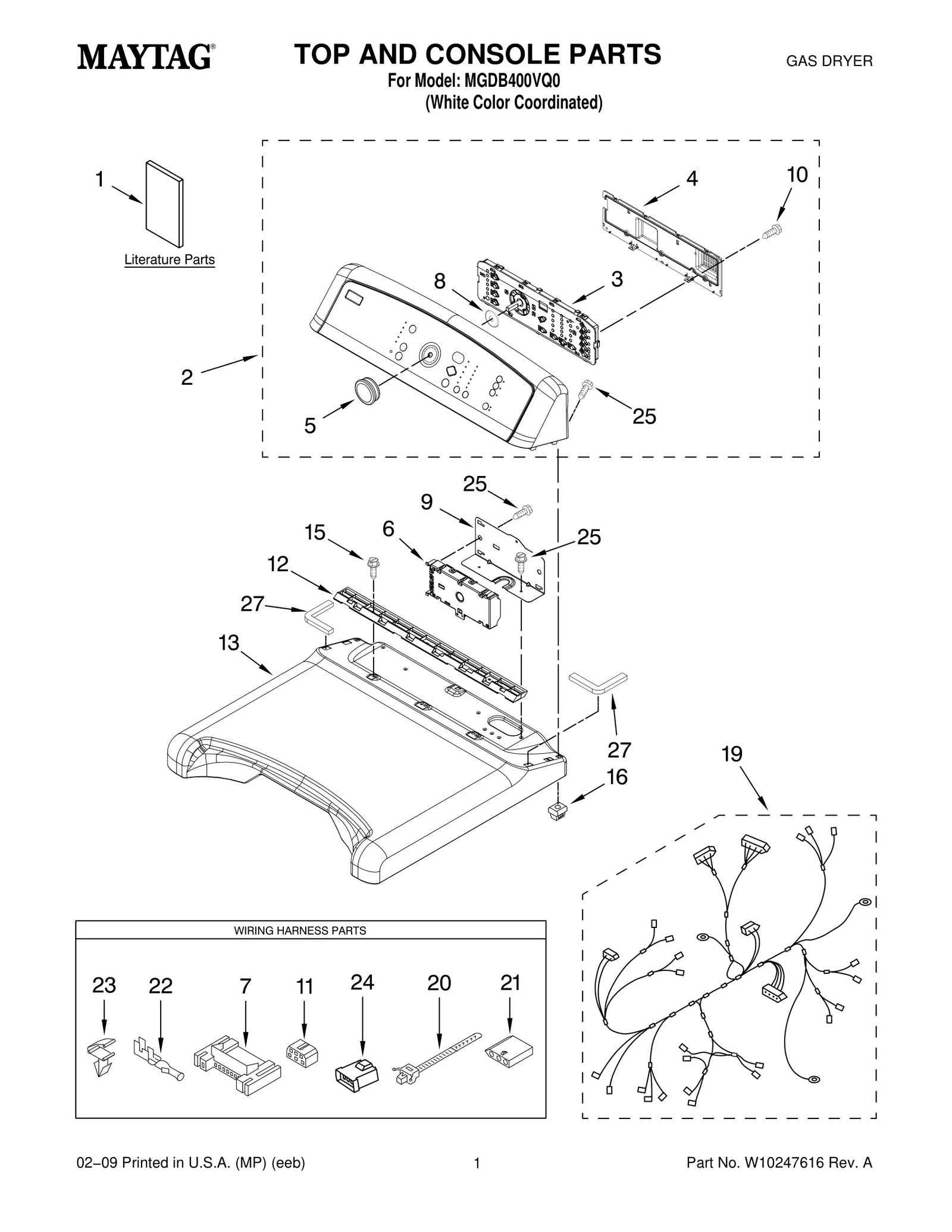

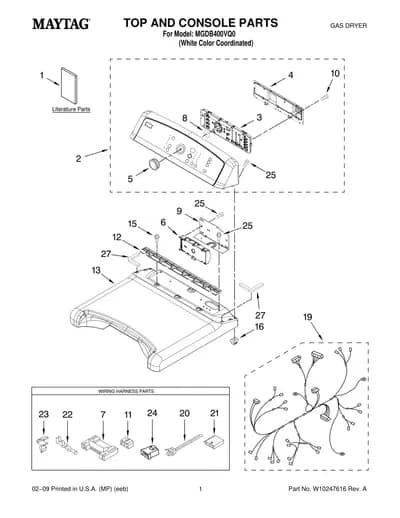

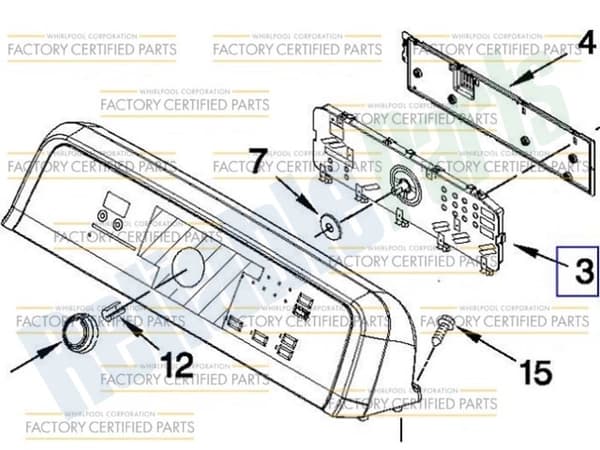

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200966 Perf. Tips Sheet | - |
| 1 | – | W10156734 Tech, Sheet | - |
| 1 | – | W10201175 Guide, Use & Care | - |
| 1 | – | W10201170 Guide, Quick Start | - |
| 2 |  | W10110298NLA Console Assembly | Discontinued |
| 3 |  | WPW10336133replaces W10222206 Assembly, User Interface | $209.66 ApplianceParts Pro |
| 4 | | Cover, UI−Assembly | - |
| 5 |  | WPW10051126replaces W10051126 Knob, Assembly | - |
| 6 | | W10111621NLA Control Electronic | Discontinued |
| 7 |  | Connector | $40.40 ApplianceParts Pro |
| 8 | | 8572039NLA Seal, UI | Discontinued |
| 9 | | Bracket, Machine Controller | - |
| 10 |  | WP4449745replaces W10003770 Screw | - |
| 11 | | 3347243NLA Connector, 6−Circuit Assembly | Discontinued |
| 12 | – | W10110295 Bracket, Console | - |
| 13 | | W10111848NLA Top User Interface | Discontinued |
| 15 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 16 |  | Clip, console | - |
| 19 |  | W10319800replaces W10111056 Harness, Wiring Main | - |
| 20 |  | W10740218replaces 3391018 Tie, Cable | $146.39 Part Advantage |
| 21 |  | Connector | - |
| 22 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 23 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 24 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 25 |  | Screw (3) | - |
| 27 | | Seal, top(LH) | $21.41 RepairClinic |
| 27 | | Seal, top(RH) | $21.41 RepairClinic |
