Model
Maytag MGDB800VB0
Gas Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGDB800VB0Gas Dryer
4 diagrams174 parts
Parts Sections (4)

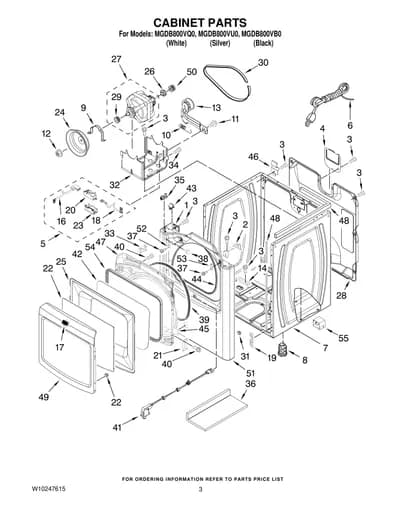

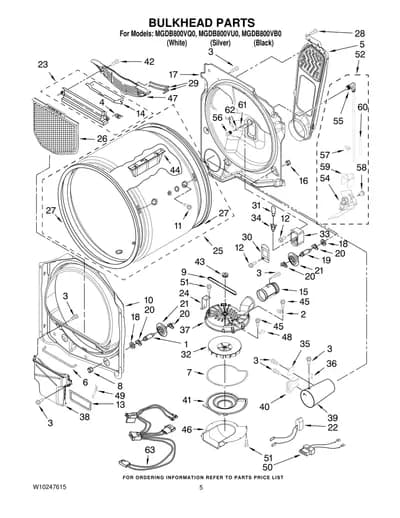

Diagram

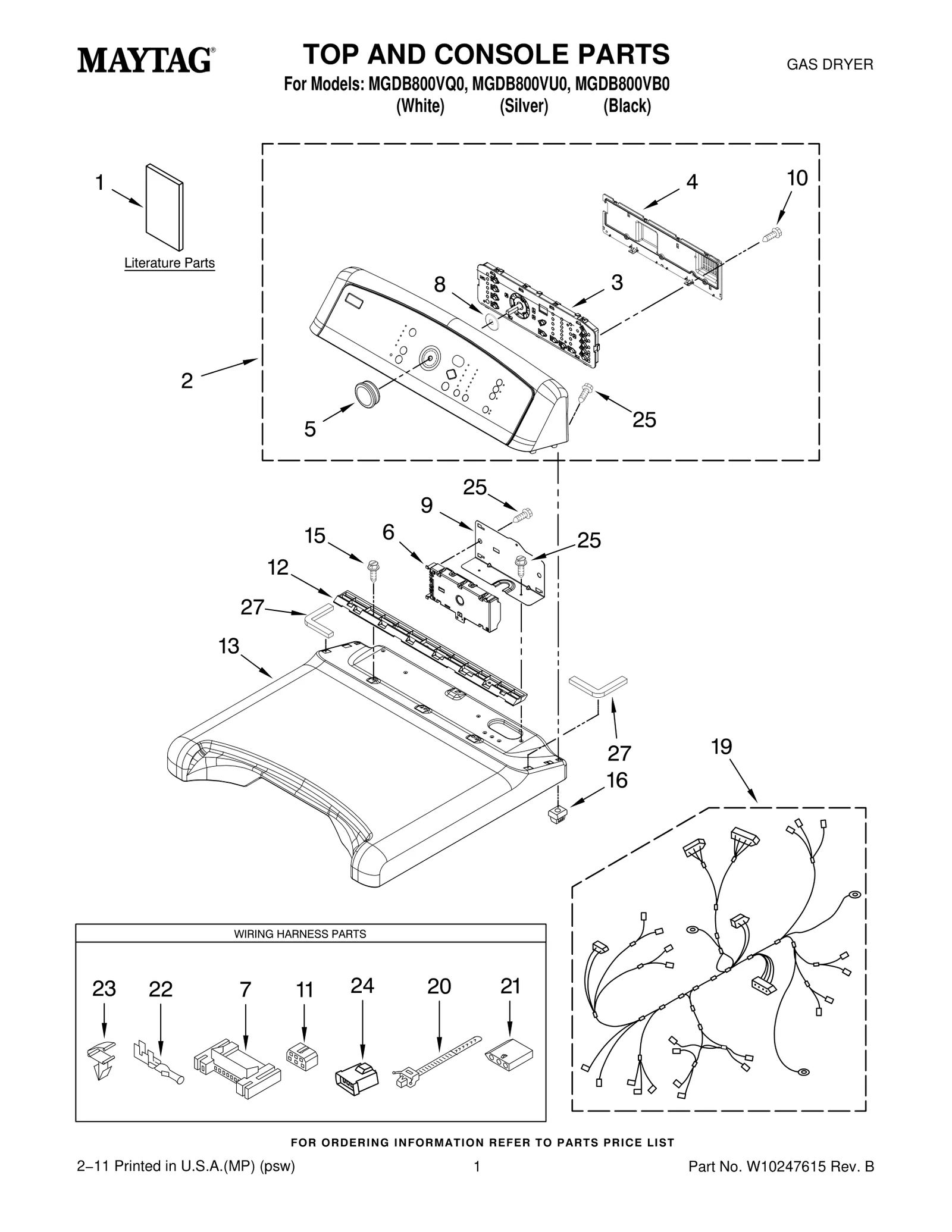

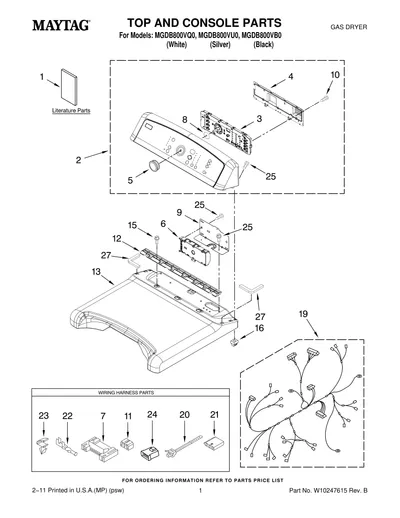

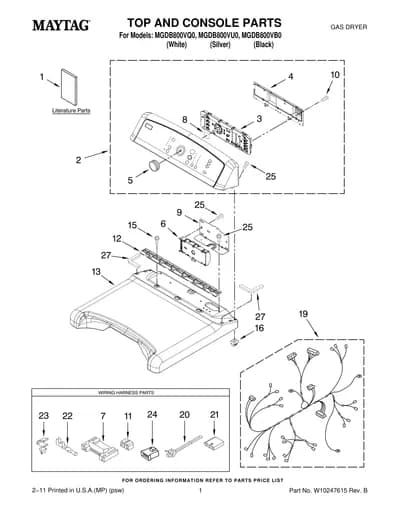

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200961 Perf. Tips Sheet | - |
| 1 | – | W10156734 Tech, Sheet | - |
| 1 | – | W10201177 Guide, Use & Care | - |
| 1 | – | W10201171 Guide, Quick Start | - |
| 1 | – | W10165147 Sheet, Steam Tip | - |
| 2 |  | Console Assembly — White | - |
| 2 | | Console Assembly — Silver | - |
| 2 | – | W10166669 Console Assembly — Black | - |
| 3 | | W10051114NLA Assembly, User Interface | Discontinued |
| 4 | | Cover, UI−Assembly | - |
| 5 |  | WPW10051126replaces W10051126 Knob, Assembly | - |
| 6 | | W10111620NLA Control Electronic | Discontinued |

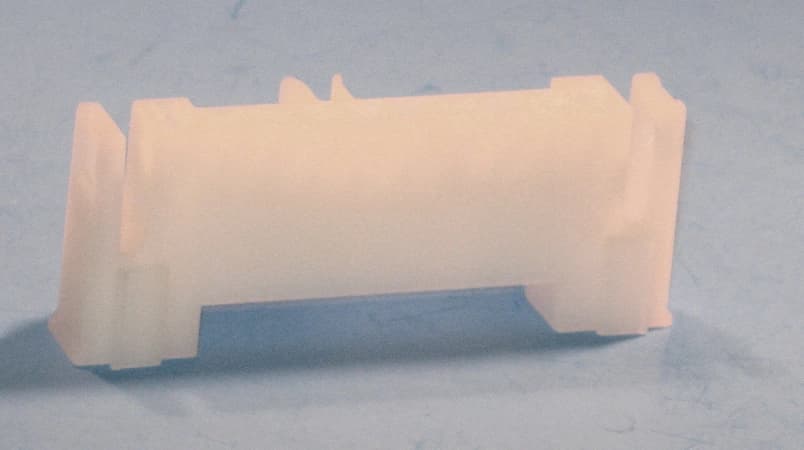

| 7 |  | Connector | $40.40 ApplianceParts Pro |
| 8 | | 8572039NLA Seal, UI | Discontinued |
| 9 | | Bracket, Machine Controller | - |
| 10 |  | WP4449745replaces W10003770 Screw | - |
| 11 | | 3347243NLA Connector, 6−Circuit Assembly | Discontinued |
| 12 | – | W10110295 Bracket, Console | - |
| 13 | | W10111848NLA Top — White | Discontinued |
| 13 | | W10111902NLA Top — Silver | Discontinued |
| 13 | – | W10111911 Top — Black | - |
| 15 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 16 |  | Clip, Console | - |

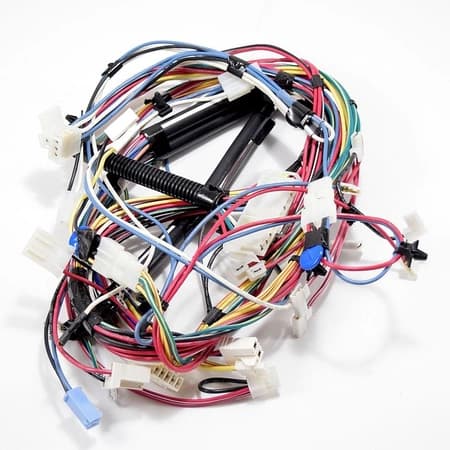

| 19 |  | W10319803replaces W10111059 Harness, Wiring Main | - |

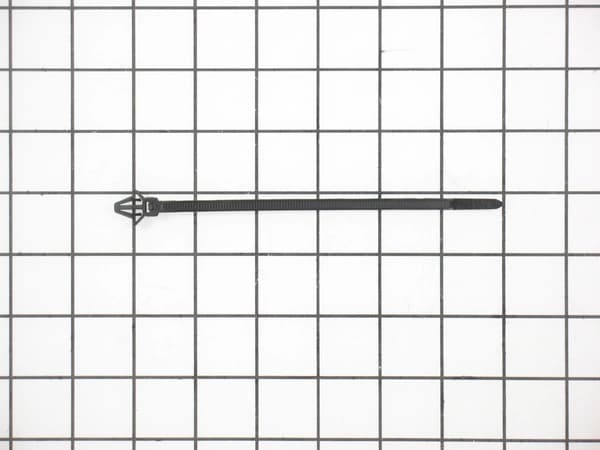

| 20 |  | WP3391018replaces 3391018 Tie, Cable | - |

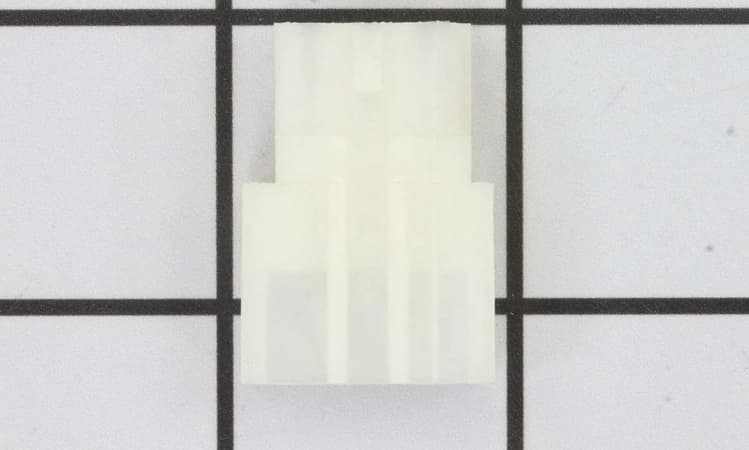

| 21 |  | Connector | - |
| 22 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 23 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |

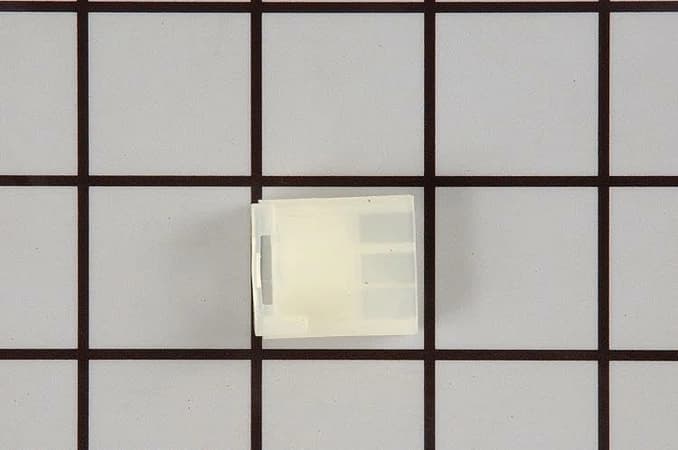

| 24 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 25 |  | Screw (3) | - |
| 27 | | Seal, Top(LH) | $21.41 RepairClinic |
| 27 | | Seal, Top(RH) | $21.41 RepairClinic |
