Model
Maytag MGDE900VJ0
29" Gas Dryer
Parts Sections (6)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGDE900VJ029" Gas Dryer
6 diagrams219 parts

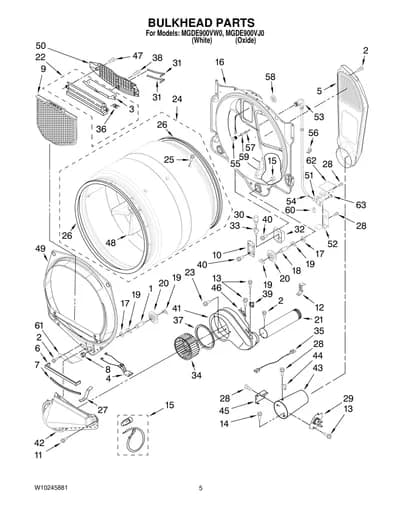

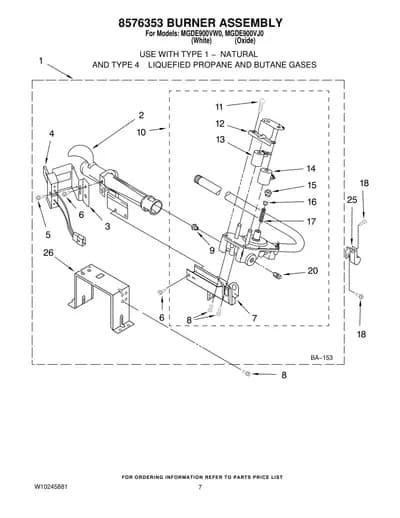

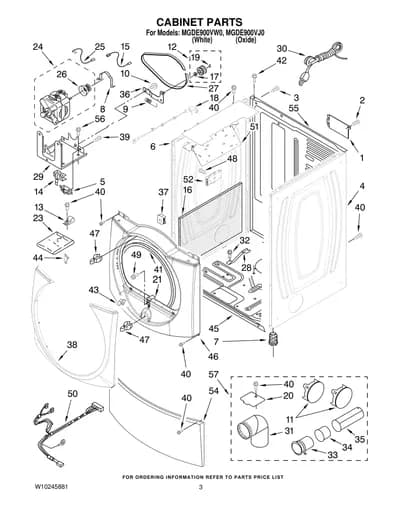

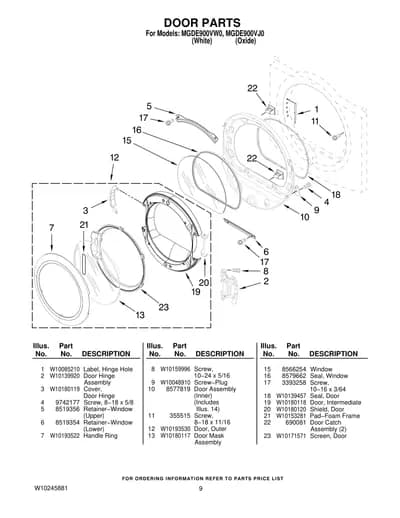

Parts Sections (6)
Diagram

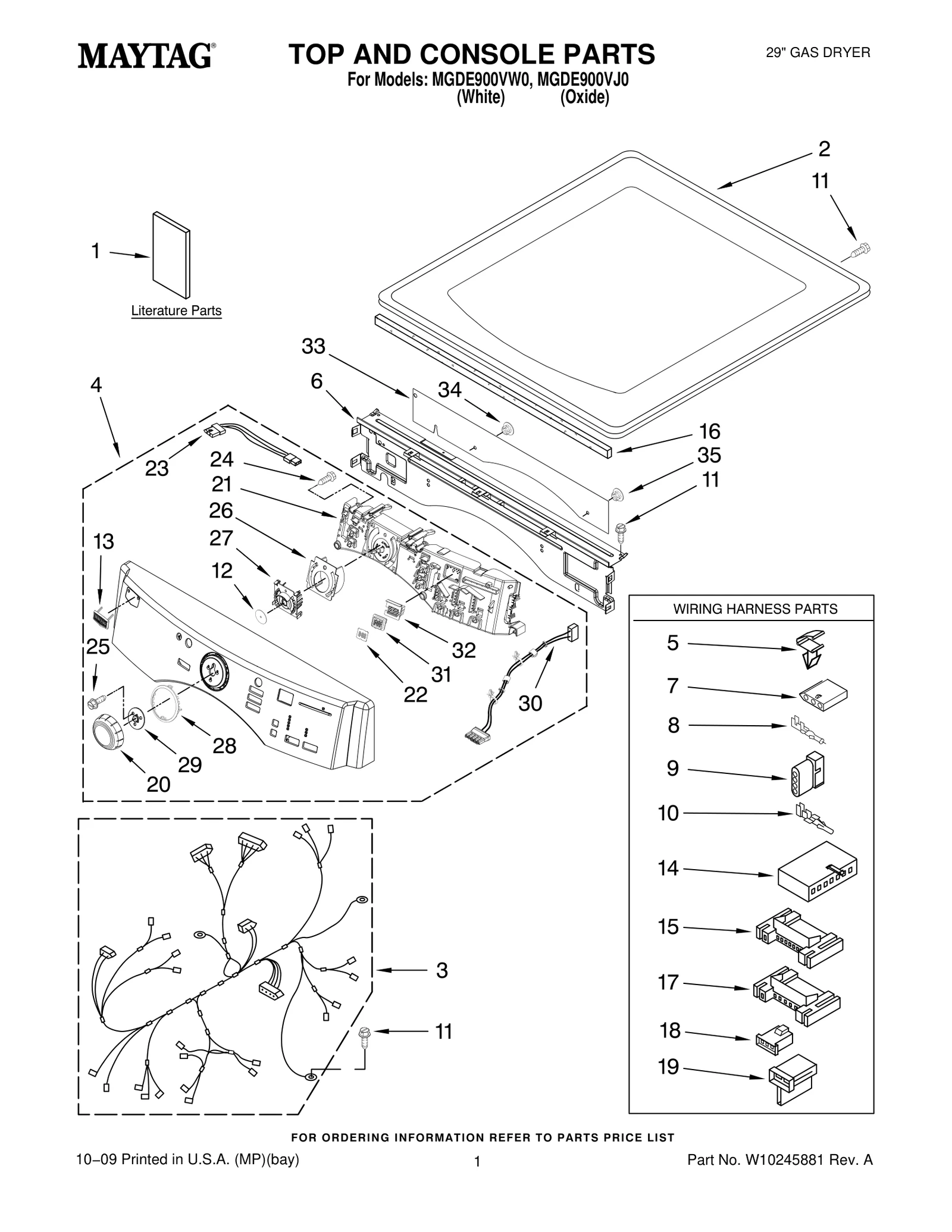

TOP AND CONSOLE PARTS

Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10057354 Use & Care Guide | - |
| 1 | – | W10057357 Guide, Quick Start | - |
| 1 | – | W10057361 Tech Sheet | - |
| 1 | – | W10165147 Sheet, Tip Steam | - |
| 2 | – | 3980634 Top — White | - |
| 2 | Top — Oxide | - | |
| 3 | – | W10111015 Harness, Main | - |
| 4 | W10164454NLA Console Assembly — White | Discontinued | |
| 4 | W10164456NLA Console Assembly — Oxide | Discontinued | |
| 5 | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage | |
| 6 | Bracket, Console | - | |
| 7 | ![]() | Connector, Sensor | - |
| 8 | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro | |
| 9 | ![]() | Plug, Terminal | - |
| 10 | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro | |
| 11 | 303776replaces 98139 Screw, 8−18 x 1/2 | - | |
| 12 | 8572039NLA Seal, User Interface | Discontinued | |
| 13 | ![]() | W10732500replaces W10177245 Medallion | - |
| 14 | ![]() | Connector, 7−Circuit | - |
| 15 | ![]() | Connector, | $40.40 ApplianceParts Pro |
| 16 | ![]() | Foam, Seal Control Bracket | - |
| 17 | ![]() | Connector, 5−Circuit | - |
| 18 | ![]() | WP3403498replaces 3403498 Connector, 3−Position | - |
| 19 | ![]() | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 20 | Knob | - | |
| 21 | W10164611NLA User−Interface | Discontinued | |
| 22 | Foil−Display | - | |
| 23 | Harness, User Interface | $60.57 RepairClinic | |
| 24 | WP8540282replaces 8540282 Screw | $8.95 ApplianceParts Pro | |
| 25 | W11230114replaces 8540513 Screw | $6.41 RepairClinic | |
| 26 | – | W10170295 Frame−Light Guide | - |
| 27 | ![]() | Guide, Light Cylcle Internal | - |
| 28 | Cycle, Light Guide | - | |
| 29 | Bushing, Knob | - | |
| 30 | – | W10185550 Power Cable User Interface | - |
| 31 | Guide, Light | - | |
| 32 | Frame−Light | - | |
| 33 | – | W10215674 Shield, Console Bracket | - |
| 34 | – | W10216201 Plug−Hole 1/4"(2) | - |
| 35 | – | W10216202 Plug−Hole 5/16"(1) | - |
