Model
Maytag MGR6775BDQ13
30" Gas Freestanding Self Clean Range Sealed Burner
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGR6775BDQ1330" Gas Freestanding Self Clean Range Sealed Burner
8 diagrams231 parts
Parts Sections (8)
Diagram

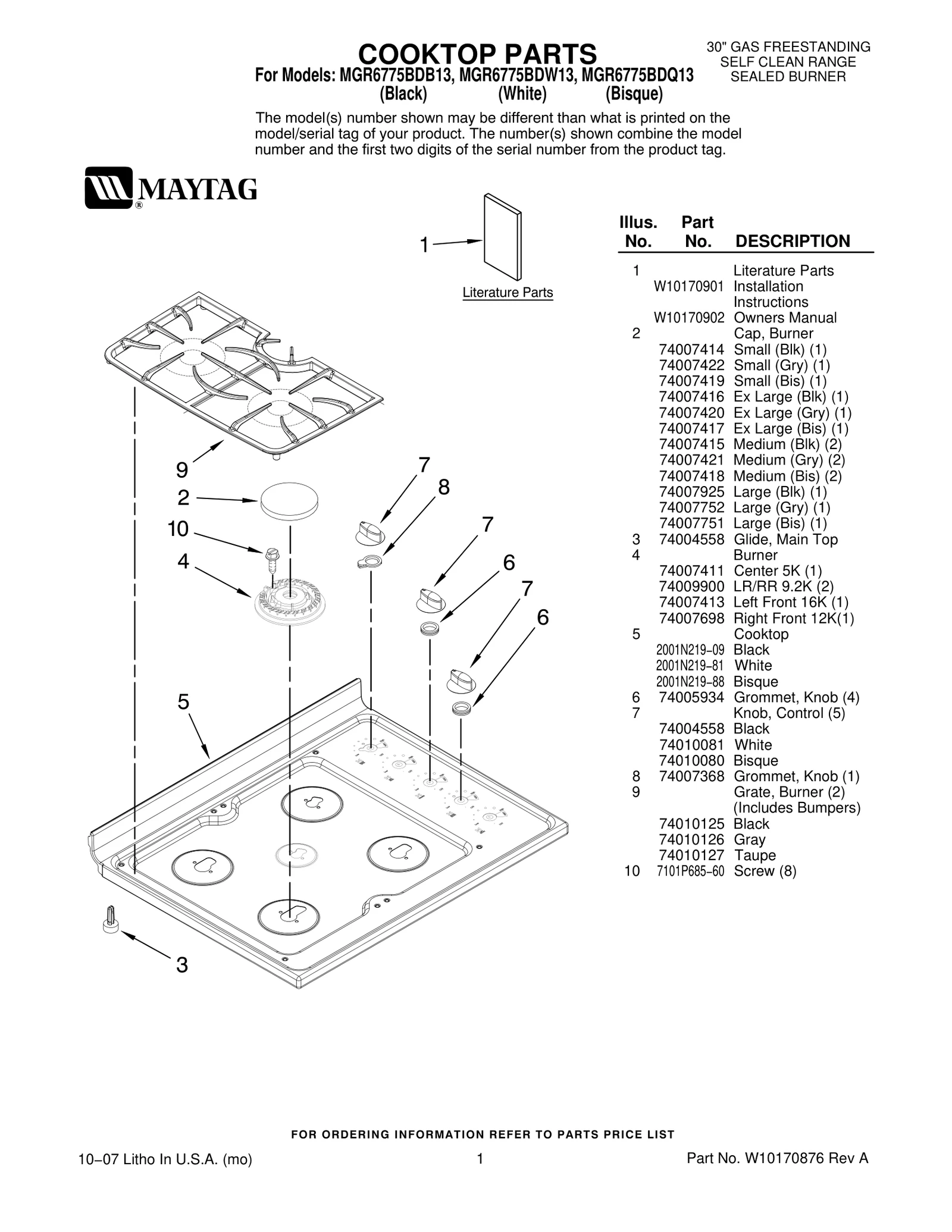

COOKTOP PARTS
Parts in COOKTOP PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10170901 Installation Instructions | - |
| 1 | – | W10170902 Owners Manual | - |
| 2 |  | WPW10154101replaces 74007414 Small (Blk) (1) | $80.95 ApplianceParts Pro |
| 2 | – | 74007422 Small (Gry) (1) | - |
| 2 |  | WP74007419replaces 74007419 Small (Bis) (1) | $25.75 RepairClinic |
| 2 |  | WP3191898replaces 74007416 Ex Large (Blk) (1) | $61.55 PartSelect |
| 2 |  | WP74007420replaces 74007420 Ex Large (Gry) (1) | $68.16 Part Advantage |
| 2 |  | WP74007417replaces 74007417 Ex Large (Bis) (1) | - |
| 2 |  | WP74007415replaces 74007415 Medium (Blk) (2) | $66.60 RepairClinic |
| 2 |  | WP74007421replaces 74007421 Medium (Gry) (2) | - |
| 2 |  | WP74007418replaces 74007418 Medium (Bis) (2) | - |
| 2 |  | WP74007925replaces 74007925 Large (Blk) (1) | $74.95 ApplianceParts Pro |
| 2 |  | WP74007752replaces 74007752 Large (Gry) (1) | $52.43 Part Advantage |
| 2 |  | WP74007751replaces 74007751 Large (Bis) (1) | $32.98 RepairClinic |
| 3 |  | W11189172replaces 74004558 Glide, Main Top | $8.15 Parts Dr |
| 4 |  | WPW10406243replaces 74007411 Center 5K (1) | $12.98 Part Advantage |
| 4 |  | WPW10406283replaces 74009900 LR/RR 9.2K (2) | $37.32 Part Advantage |
| 4 |  | WPW10406878replaces 74007413 Left Front 16K (1) | $38.07 Part Advantage |
| 4 |  | WPW10406797replaces 74007698 Right Front 12K(1) | $33.54 Part Advantage |
| 5 | – | N/S Cooktop 2001N219−09 Black 2001N219−81 White 2001N219−88 Bisque | - |
| 6 |  | WP74005934replaces 74005934 Grommet, Knob (4) | $9.57 ApplianceParts Pro |
| 7 | | W11189172replaces 74004558 Knob, Control (5) — Black | $8.15 Parts Dr |
| 7 |  | W10920307replaces 74010081 Knob, Control (5) — White | - |
| 7 |  | 7733P424-60replaces 74010080 Knob, Control (5) — Bisque | - |
| 8 | | 74007368NLA Grommet, Knob (1) | Discontinued |
| 9 | – | 74010125 Grate, Burner (2) — Black | - |
| 9 | – | 74010126 Grate, Burner (2) — Gray | - |
| 9 | – | 74010127 Grate, Burner (2) — Taupe | - |
| 10 | – | N/S 7101P685−60 Screw (8) | - |
