ModelMaytag
MGRH865QDB030" Gas Freestanding Self Clean Range Sealed Burner Convection
7 diagrams41 parts
Parts Sections (7)
Diagram

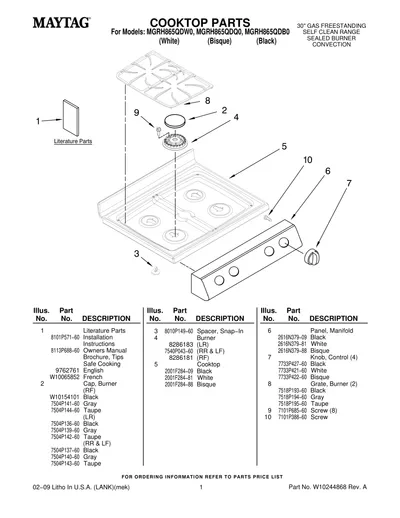

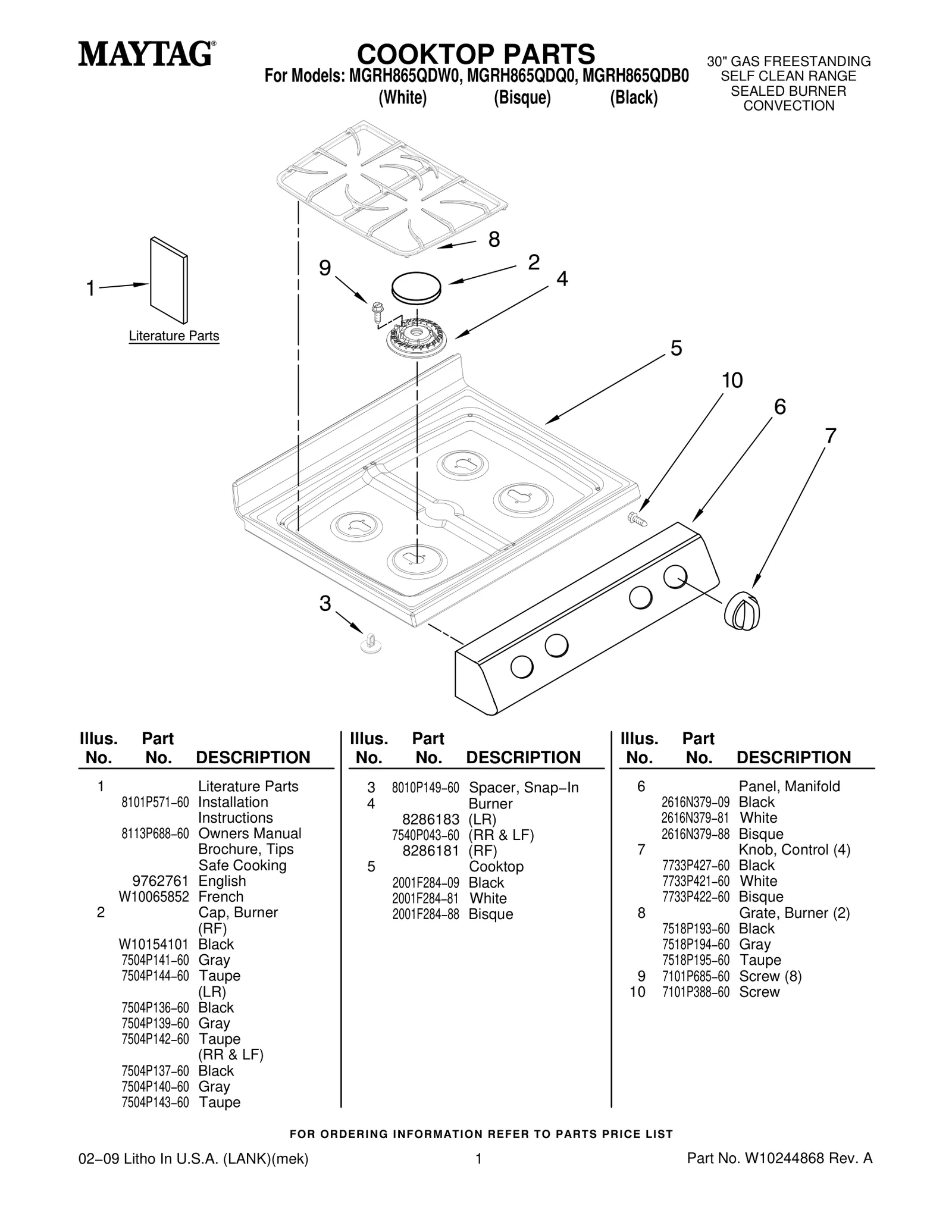

COOKTOP PARTS
Parts in COOKTOP PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762761 8101P571−60 Installation Instructions 8113P688−60 Owners Manual Brochure, Tips Safe Cooking — English | - |
| 1 | – | W10065852 8101P571−60 Installation Instructions 8113P688−60 Owners Manual Brochure, Tips Safe Cooking — French | - |
| 2 |  | WPW10154101replaces W10154101 Cap, Burner — Black | $80.95 ApplianceParts Pro |
| 3 | – | N/S 8010P149−60 Spacer, Snap−In | - |
| 4 |  | WPW10406878replaces 8286183 (LR) 7540P043−60 (RR & LF) | $38.07 Part Advantage |
| 4 |  | WPW10406243replaces 8286181 (RF) | $12.98 Part Advantage |
| 5 | – | N/S Cooktop 2001F284−09 Black 2001F284−81 White 2001F284−88 Bisque | - |
| 6 | – | N/S Panel, Manifold 2616N379−09 Black 2616N379−81 White 2616N379−88 Bisque | - |
| 7 | – | N/S Knob, Control (4) 7733P427−60 Black 7733P421−60 White 7733P422−60 Bisque | - |
| 8 | – | N/S Grate, Burner (2) 7518P193−60 Black 7518P194−60 Gray 7518P195−60 Taupe | - |
| 9 | – | N/S 7101P685−60 Screw (8) | - |
| 10 | – | N/S 7101P388−60 Screw | - |
