Model
Maytag MGRH865QDB12
Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGRH865QDB12Range
7 diagrams180 parts
Parts Sections (7)
Diagram

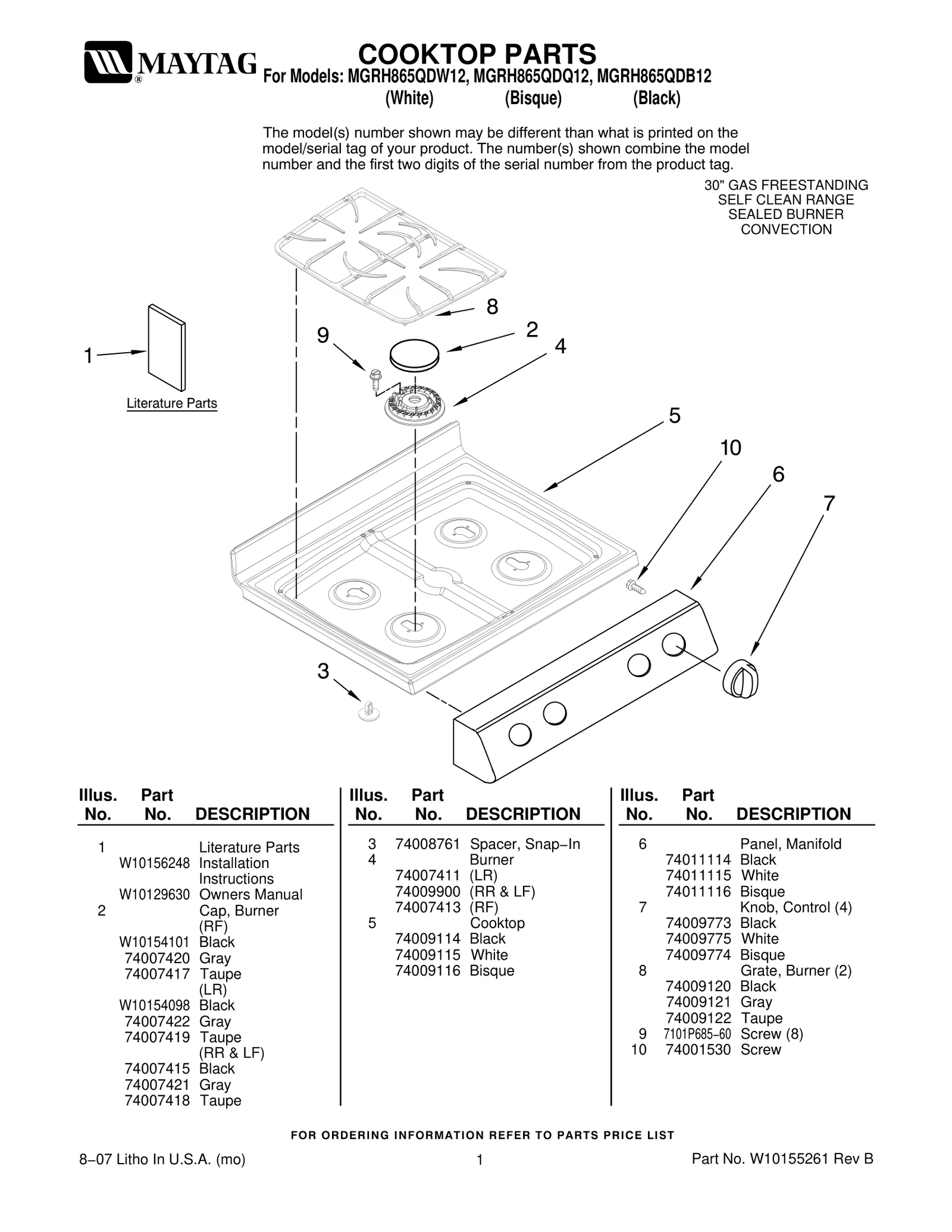

COOKTOP PARTS
Parts in COOKTOP PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10156248 Installation Instructions | - |
| 1 | – | W10129630 Owners Manual | - |
| 2 |  | WPW10154101replaces W10154101 Cap, Burner — Black | $80.95 ApplianceParts Pro |
| 2 |  | WP74007420replaces 74007420 Cap, Burner — Gray | $68.16 Part Advantage |
| 2 |  | WP74007417replaces 74007417 Cap, Burner — Taupe | - |
| 2 |  | WP3191898replaces W10154098 Cap, Burner — Black | $61.55 PartSelect |
| 2 | – | 74007422 Cap, Burner — Gray | - |
| 2 |  | WP74007419replaces 74007419 Cap, Burner — Taupe | $25.75 RepairClinic |
| 2 |  | WP74007415replaces 74007415 Cap, Burner — Black | $66.60 RepairClinic |
| 2 |  | WP74007421replaces 74007421 Cap, Burner — Gray | - |
| 2 |  | WP74007418replaces 74007418 Cap, Burner — Taupe | - |

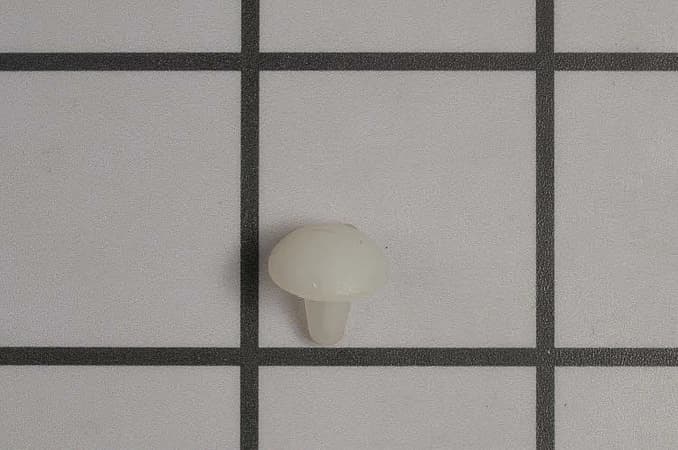

| 3 |  | Spacer, Snap−In | - |
| 4 |  | WPW10406243replaces 74007411 (LR) | $12.98 Part Advantage |
| 4 |  | WPW10406283replaces 74009900 (RR & LF) | $37.32 Part Advantage |
| 4 |  | WPW10406878replaces 74007413 (RF) | $38.07 Part Advantage |
| 5 |  | 74009114NLA Cooktop — Black | Discontinued |
| 5 | – | 74009115 Cooktop — White | - |
| 5 | – | 74009116 Cooktop — Bisque | - |
| 6 | | Panel, Manifold — Black | - |
| 6 | | Panel, Manifold — White | - |
| 6 | – | 74011116 Panel, Manifold — Bisque | - |
| 7 | | Knob, Control (4) — Black | Discontinued |
| 7 |  | WP74009775replaces 74009775 Knob, Control (4) — White | $13.09 Parts Dr |

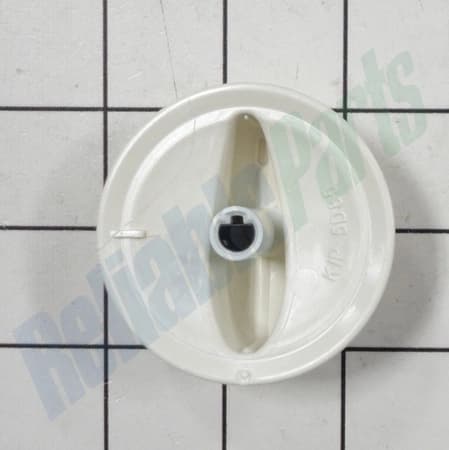

| 7 |  | Knob, Control (4) — Bisque | $17.33 ApplianceParts Pro |
| 8 |  | Grate, Burner (2) — Black | $195.95 ApplianceParts Pro |
| 8 | – | 74009121 Grate, Burner (2) — Gray | - |
| 8 | – | 74009122 Grate, Burner (2) — Taupe | - |
| 9 | – | N/S 7101P685−60 Screw (8) | - |
| 10 | | Screw | - |
