Model
Maytag MGRH865QDS11
Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGRH865QDS11Range
7 diagrams132 parts
Parts Sections (7)
Diagram

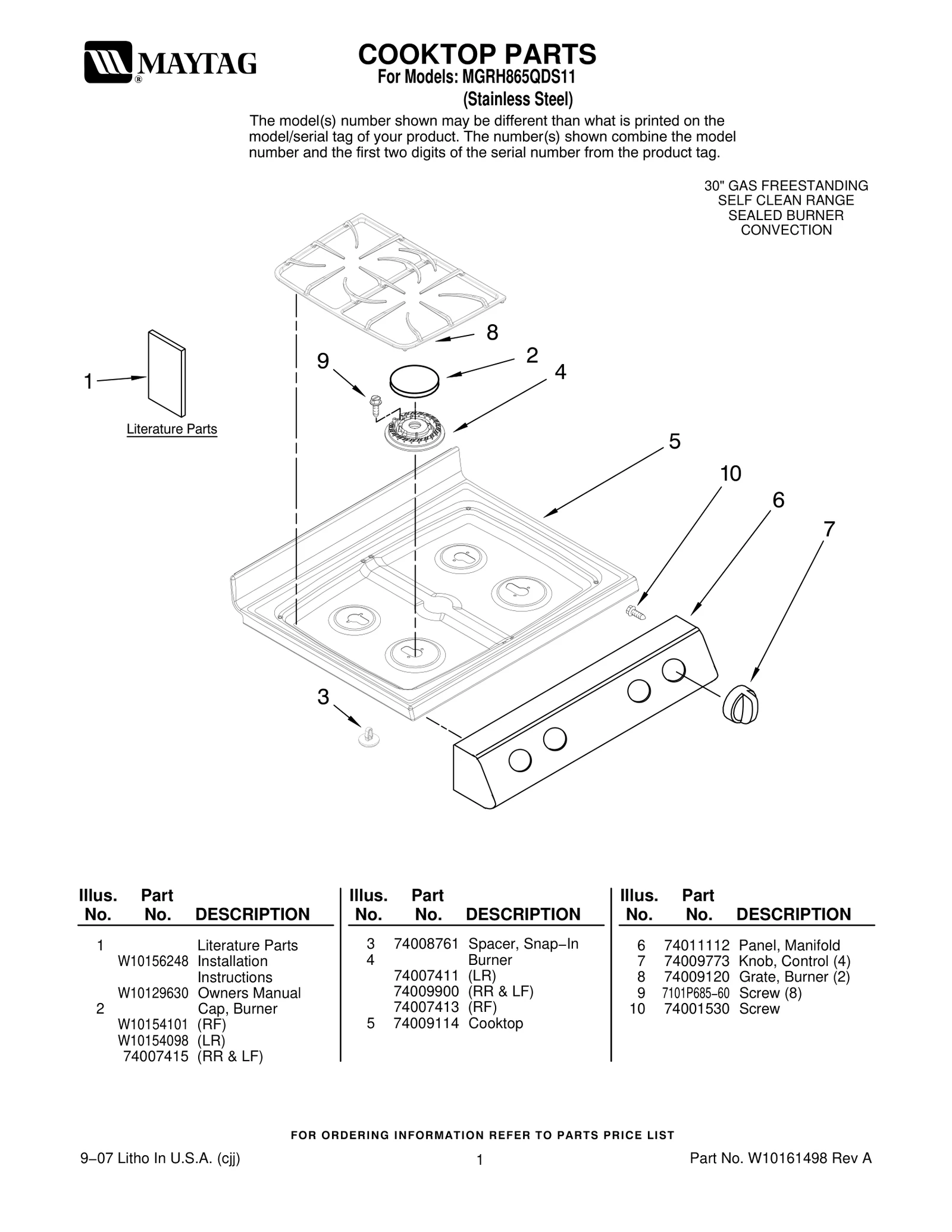

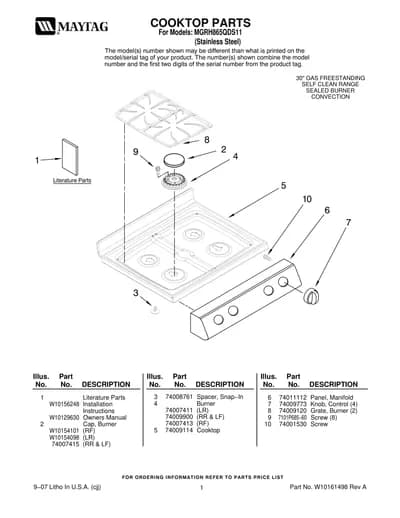

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10156248 Installation Instructions | - |
| 1 | – | W10129630 Owners Manual | - |
| 2 |  | WPW10154101replaces W10154101 (RF) | $80.95 ApplianceParts Pro |
| 2 |  | WP3191898replaces W10154098 (LR) | $61.55 PartSelect |
| 2 |  | WP74007415replaces 74007415 (RR & LF) | $66.60 RepairClinic |
| 3 |  | Spacer, Snap−In | - |
| 4 |  | WPW10406243replaces 74007411 (LR) | $12.98 Part Advantage |
| 4 |  | WPW10406283replaces 74009900 (RR & LF) | $37.32 Part Advantage |
| 4 |  | WPW10406878replaces 74007413 (RF) | $38.07 Part Advantage |
| 5 |  | 74009114NLA Cooktop | Discontinued |
| 6 | – | 74011112 Panel, Manifold | - |
| 7 | | Knob, Control (4) | Discontinued |
| 8 |  | Grate, Burner (2) | $195.95 ApplianceParts Pro |
| 9 | – | N/S 7101P685−60 Screw (8) | - |
| 10 | | Screw | - |
