Model
Maytag MH1170XSS5
Microwave Oven 1.7 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MH1170XSS5Microwave Oven 1.7 Cu. Ft.
6 diagrams86 parts
Parts Sections (6)
Diagram

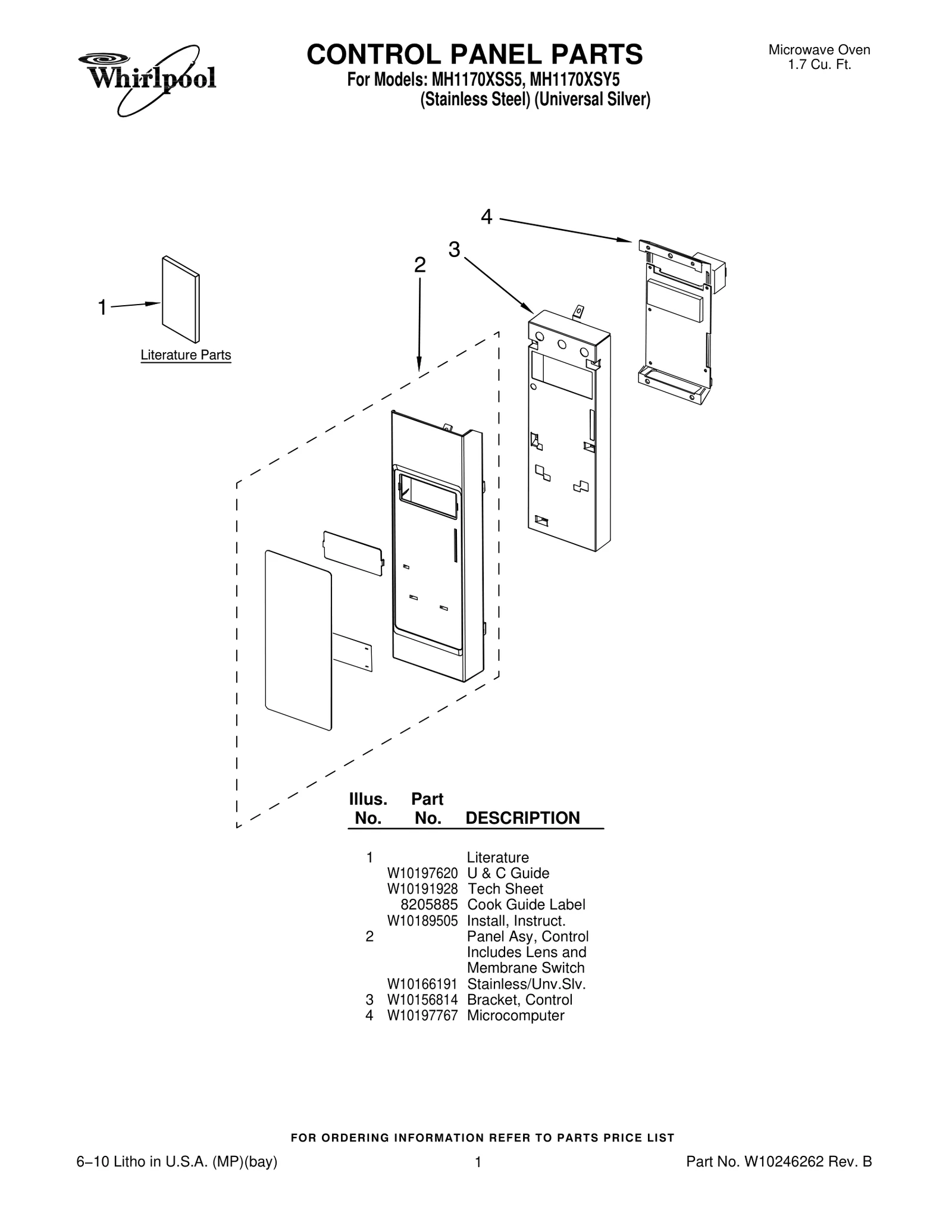

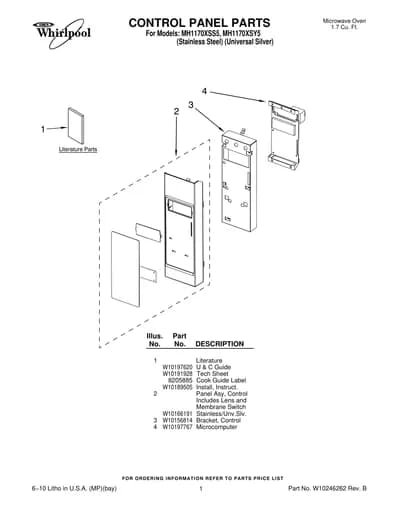

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
7 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10197620 U & C Guide | - |
| 1 | – | W10191928 Tech Sheet | - |
| 1 | – | 8205885 Cook Guide Label | - |
| 1 | – | W10189505 Install, Instruct. | - |
| 2 |  | Panel Asy, Control Includes Lens and Membrane Switch — Stainless/Unv.Slv. | - |
| 3 | | W10156814NLA Bracket, Control | Discontinued |
| 4 | | W10197767NLA Microcomputer | Discontinued |
