Model
Maytag MHP1000SB0
Pedestal
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MHP1000SB0Pedestal
1 diagram17 parts
Parts Sections (1)
Diagram

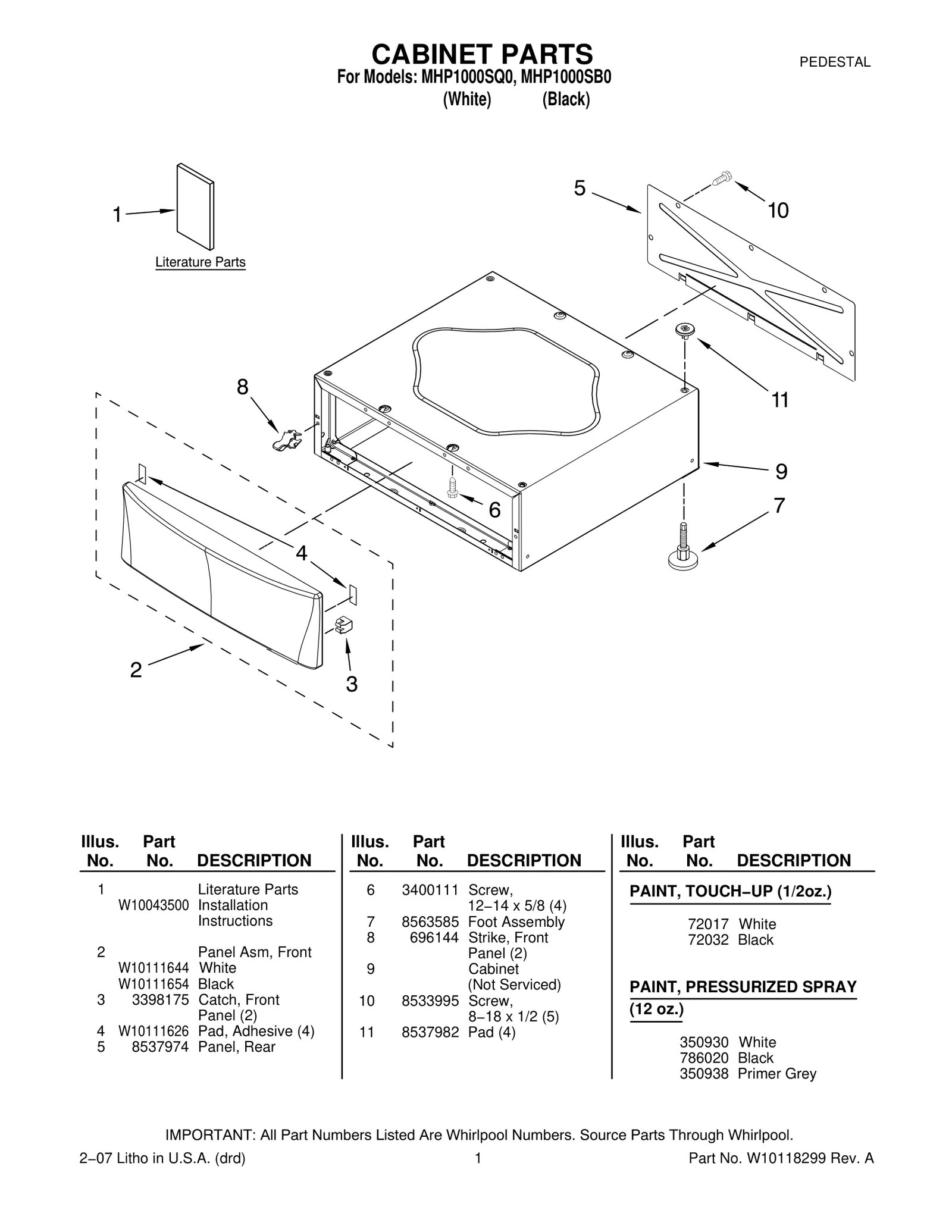

CABINET PARTS
Parts in CABINET PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10043500 Installation Instructions | - |
| 2 |  | WPW10111644replaces W10111644 Panel Asm, Front — White | - |
| 2 | – | W10111654 Panel Asm, Front — Black | - |
| 3 |  | 279570replaces 3398175 Catch, Front Panel (2) | $2.90 Part Advantage |
| 4 |  | Pad, Adhesive (4) | - |
| 5 | | Panel, Rear | - |
| 6 |  | WPW10346892replaces 3400111 Screw, 12−14 x 5/8 (4) | $2.30 Part Advantage |
| 7 |  | WP8563585replaces 8563585 Foot Assembly | $6.46 Part Advantage |
| 8 | | 279570replaces 696144 Strike, Front Panel (2) | $2.90 Part Advantage |
| 9 | – | N/S Cabinet | - |
| 10 |  | WPW10213953replaces 8533995 Screw, 8−18 x 1/2 (5) | $2.30 Part Advantage |
| 11 |  | WP8537982replaces 8537982 Pad (4) PAINT, TOUCH−UP (1/2oz.) | $3.38 Part Advantage |
| 11 |  | White | $3.58 Part Advantage |
| 11 |  | Black PAINT, PRESSURIZED SPRAY | $5.12 Part Advantage |
| 11 |  | White | $11.79 Amazon |
| 11 | – | 786020 Black | - |
| 11 |  | Primer Grey | $37.00 Parts Dr |
