Model
Maytag MHP1500SQ0
Pedestal
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MHP1500SQ0Pedestal
1 diagram23 parts
Parts Sections (1)
Diagram

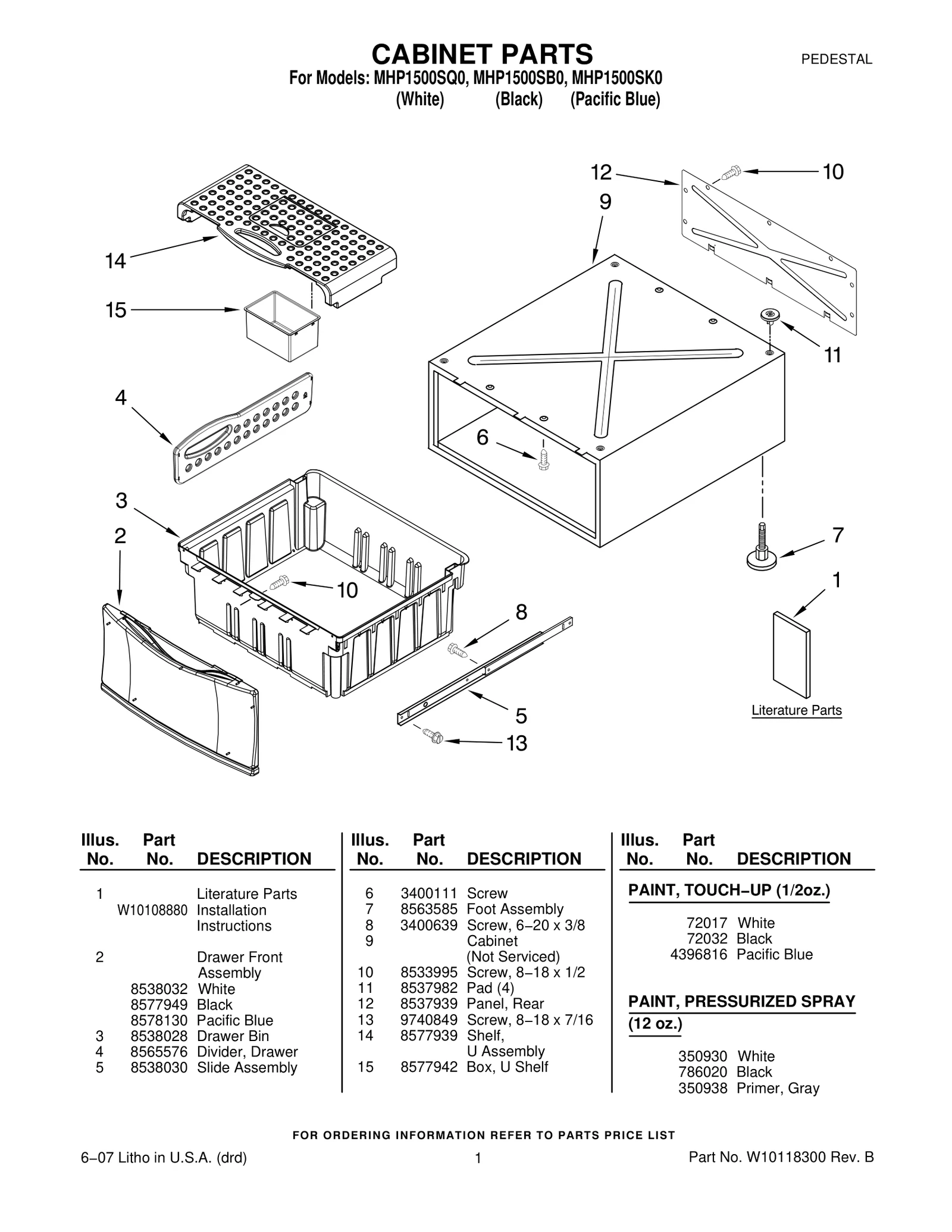

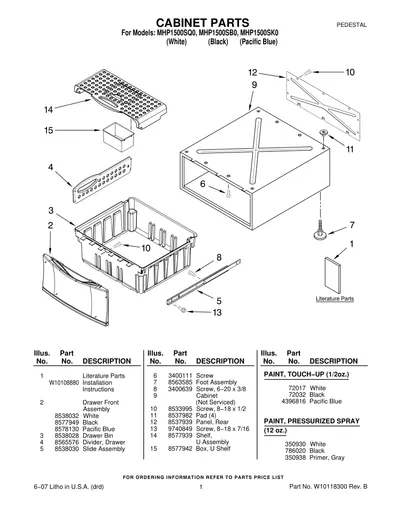

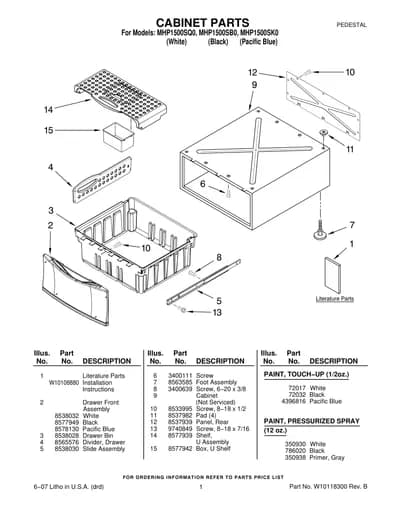

CABINET PARTS
Parts in CABINET PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10108880 Installation Instructions | - |
| 2 |  | 8538032NLA Drawer Front Assembly — White | Discontinued |
| 2 | – | 8577949 Drawer Front Assembly — Black | - |
| 2 | – | 8578130 Drawer Front Assembly — Pacific Blue | - |
| 3 | | Drawer Bin | - |
| 4 | – | 8565576 Divider, Drawer | - |
| 5 | | Slide Assembly | - |
| 6 |  | WPW10346892replaces 3400111 Screw | $2.30 Part Advantage |
| 7 |  | WP8563585replaces 8563585 Foot Assembly | $6.46 Part Advantage |
| 8 |  | WP3388228replaces 3400639 Screw, 6−20 x 3/8 | $2.30 Part Advantage |
| 9 | – | N/S Cabinet | - |
| 10 |  | WPW10213953replaces 8533995 Screw, 8−18 x 1/2 | $2.30 Part Advantage |
| 11 |  | WP8537982replaces 8537982 Pad (4) | $3.38 Part Advantage |
| 12 | | Panel, Rear | - |
| 13 |  | WP9740849replaces 9740849 Screw, 8−18 x 7/16 | $2.30 Part Advantage |
| 14 | | W10164713replaces 8577939 Shelf, U Assembly | - |
| 15 | | 8577942NLA Box, U Shelf PAINT, TOUCH−UP (1/2oz.) | Discontinued |
| 15 |  | White | $3.58 Part Advantage |
| 15 |  | Black | $5.12 Part Advantage |
| 15 |  | Pacific Blue PAINT, PRESSURIZED SPRAY | $8.32 ApplianceParts Pro |
| 15 |  | White | $11.79 Amazon |
| 15 | – | 786020 Black | - |
| 15 |  | Primer, Gray | $37.00 Parts Dr |
