Model
Maytag MMV5165BAS14
Microwave Oven/Hood 1.6 Cu. Ft.
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MMV5165BAS14Microwave Oven/Hood 1.6 Cu. Ft.
3 diagrams26 parts
Parts Sections (3)

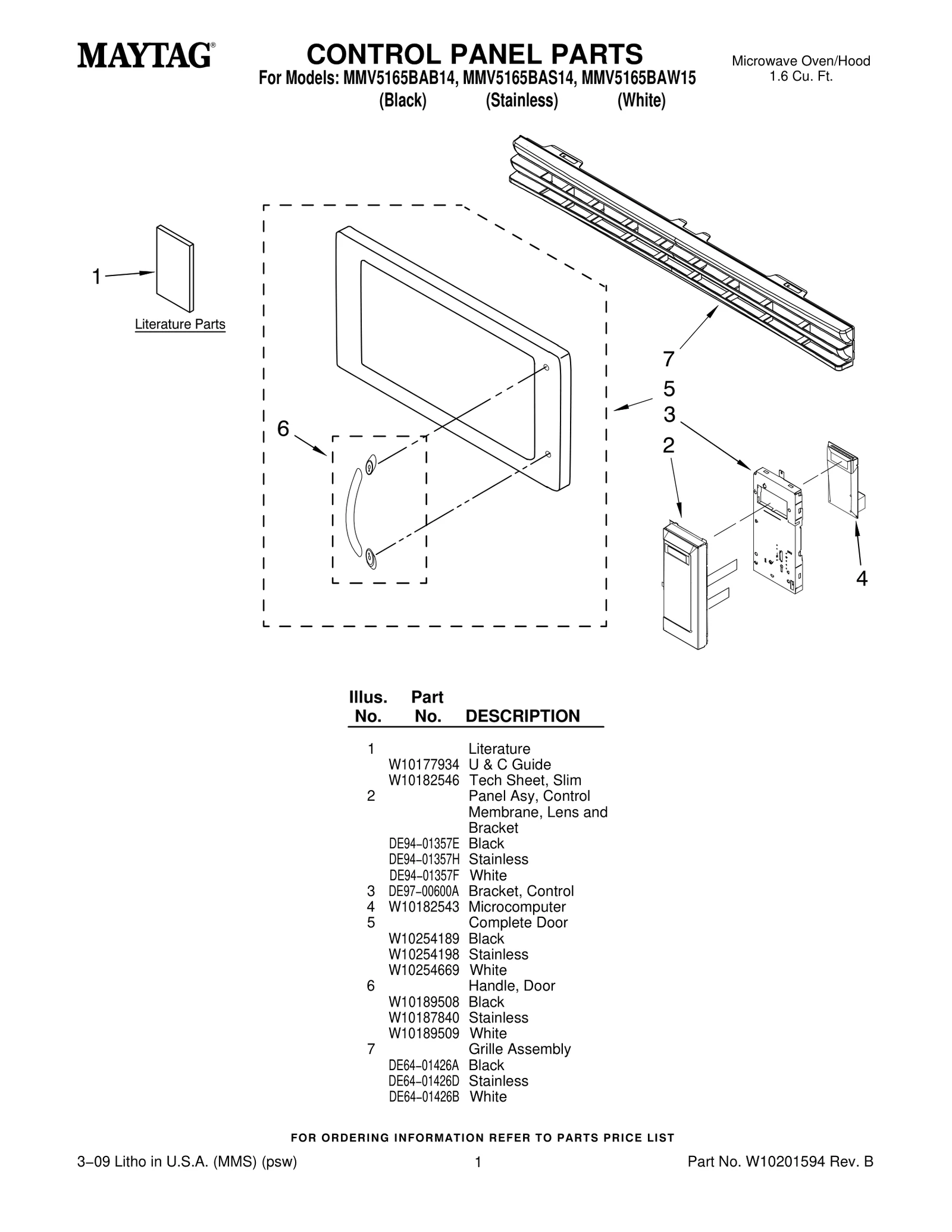

Diagram
CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10177934 U & C Guide | - |
| 1 | – | W10182546 Tech Sheet, Slim | - |
| 2 | – | N/S Panel Asy, Control Membrane, Lens and Bracket DE94−01357E Black DE94−01357H Stainless DE94−01357F White | - |
| 3 | – | N/S DE97−00600A Bracket, Control | - |
| 4 |  | W10182543NLA Microcomputer | Discontinued |
| 5 | | Complete Door — Black | - |
| 5 | | Complete Door — Stainless | - |
| 5 | | Complete Door — White | - |
| 6 | | Handle, Door — Black | - |
| 6 |  | WPW10187840replaces W10187840 Handle, Door — Stainless | $46.52 Part Advantage |
| 6 | | W10189509NLA Handle, Door — White | Discontinued |
| 7 | – | N/S Grille Assembly DE64−01426A Black DE64−01426D Stainless DE64−01426B White | - |
