Model
Maytag MMV5207BAW15
Microwave Oven/Hood 2.0 Cu. Ft.
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MMV5207BAW15Microwave Oven/Hood 2.0 Cu. Ft.
3 diagrams25 parts
Parts Sections (3)
Diagram

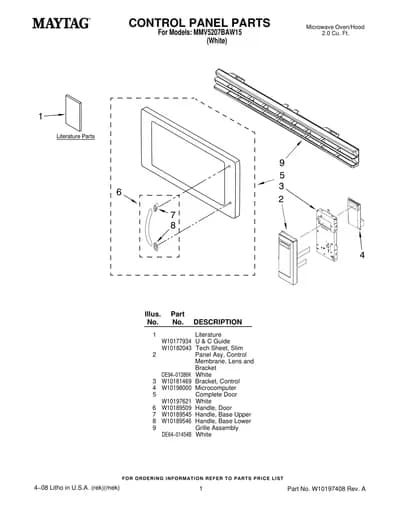

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10177934 U & C Guide | - |
| 1 | – | W10182043 Tech Sheet, Slim | - |
| 2 | – | N/S Panel Asy, Control Membrane, Lens and Bracket DE94−01386K White | - |
| 3 | – | W10181469 Bracket, Control | - |
| 4 |  | W10198000NLA Microcomputer | Discontinued |
| 5 | | Complete Door — White | - |
| 6 | | W10189509NLA Handle, Door | Discontinued |
| 7 | | Handle, Base Upper | - |
| 8 | | Handle, Base Lower | - |
| 9 | – | N/S Grille Assembly DE64−01454B White | - |
