Model
Maytag MTB1854VRS01
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MTB1854VRS01Refrigerator
6 diagrams202 parts
Parts Sections (6)
Diagram

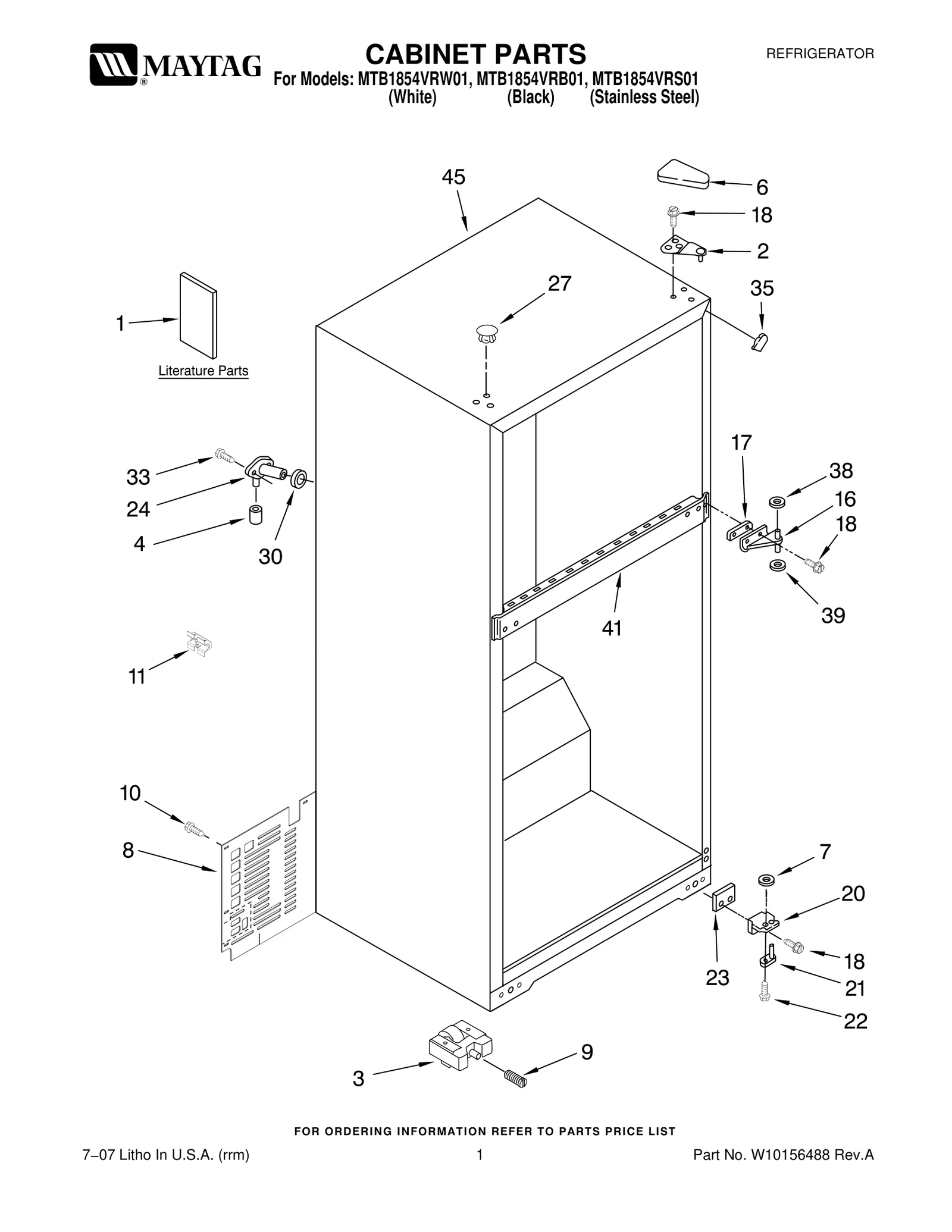

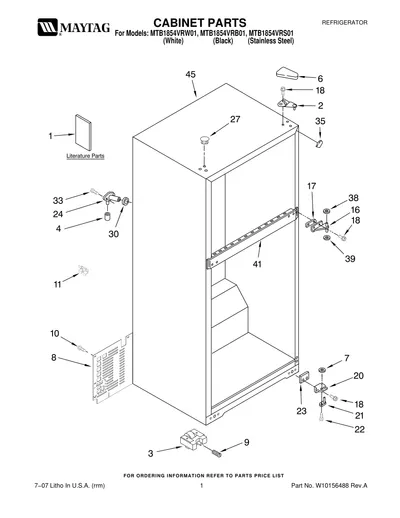

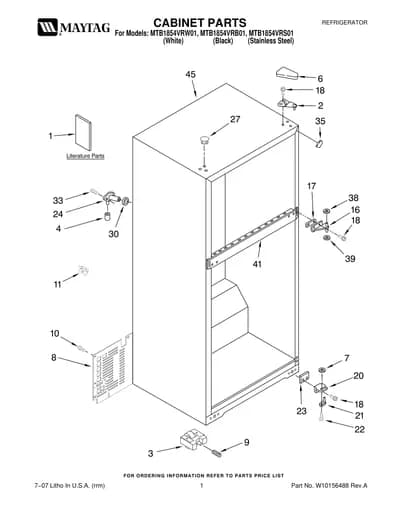

CABINET PARTS
Parts in CABINET PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10145175 Service & | - |
| 1 | – | 2326159 Use & Care Guide | - |
| 1 | – | 2326190 Energy Guide | - |
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2261963 Hinge Butt, Top | $41.83 Part Advantage |
| 3 |  | Roller, Front | - |
| 4 |  | WP487996replaces 487996 Cap, Bushing | $6.95 ApplianceParts Pro |
| 6 |  | WP2213360replaces 2213360 Cover, Hinge — White | $12.92 ApplianceParts Pro |
| 6 |  | WP2213363replaces 2213363 Cover, Hinge — Black | $11.95 ApplianceParts Pro |
| 7 |  | WP488296replaces 488296 Washer | $3.38 Part Advantage |
| 8 |  | WP2264132replaces 2264132 Cover, Unit | - |
| 9 |  | Screw | - |
| 10 |  | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 11 |  | Spacer−Back−CB | $9.37 ApplianceParts Pro |
| 16 |  | WP2166037replaces 2166086 Hinge, Center | $49.72 Part Advantage |
| 17 |  | Shim, Hinge Center — White | $26.61 Parts Dr |
| 17 |  | Shim, Hinge Center — Black | - |
| 18 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 20 |  | WP2325482replaces 2221926 Hinge Butt, Bottom | $33.11 Parts Dr |
| 21 |  | 9791682NLA Hinge−Pin, Bottom | Discontinued |
| 22 |  | WP3428970replaces 3428970 Screw | $5.75 Parts Dr |
| 23 |  | WP2201567replaces 2201567 Shim, Bottom Hinge | $5.95 ApplianceParts Pro |
| 24 |  | WP2196157replaces 2174760 Fitting, Water Tube | $4.42 Part Advantage |
| 27 |  | WP2151652replaces 2201012 Hole Plug (6) — White | $7.50 Part Advantage |
| 27 |  | WP2183998replaces 2183998 Hole Plug (6) — Black | $10.75 ApplianceParts Pro |
| 30 |  | WP1106508replaces 1106508 Seal | $6.42 ApplianceParts Pro |
| 33 |  | WP488729replaces 2262176 Screw | $2.41 Part Advantage |
| 35 |  | W10859322replaces 2166003 Corner Filler — White | $9.57 ApplianceParts Pro |
| 35 |  | W11500943replaces 2215384 Corner Filler — Black | $3.62 Parts Dr |
| 38 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 39 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 41 | – | N/S Rail, Center | - |
| 45 | – | N/S Cabinet (Not a Serviceable Part) | - |
