Model
Maytag MTW5720TQ0
Automatic Washer
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MTW5720TQ0Automatic Washer
9 diagrams211 parts
Parts Sections (9)
Diagram

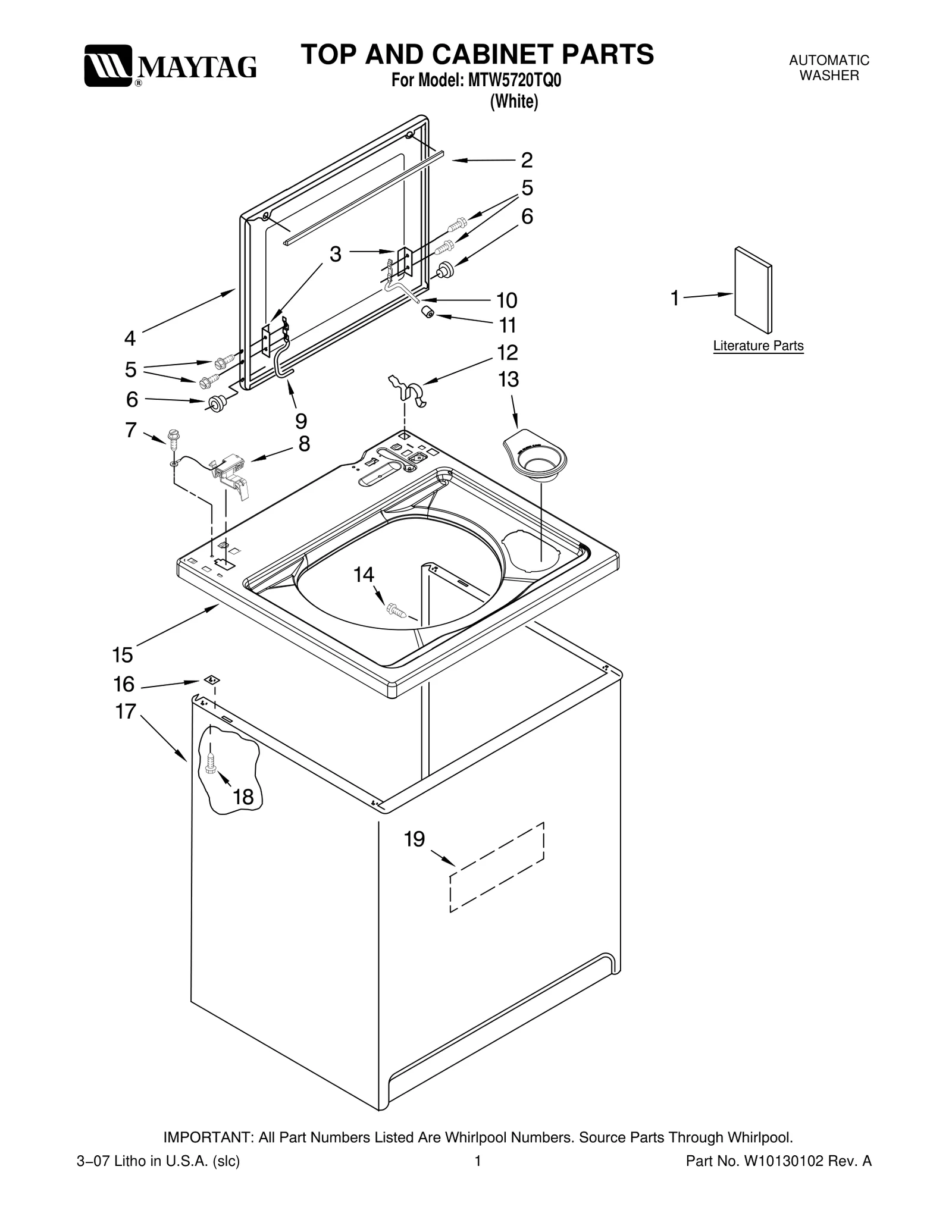

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10092682 Use & Care Guide | - |
| 1 | – | W10092688 Feature Sheet | - |
| 1 | – | W10092735 Energy Guide | - |
| 1 | – | W10111392 Wiring Diagram | - |
| 2 |  | 8054939NLA Seal, Lid | Discontinued |
| 3 |  | WP21097replaces 21097 Pad, Lid Hinge (2) | $3.38 Part Advantage |
| 4 |  | WPW10193865replaces W10093680 Lid | - |
| 5 |  | WPW10119828replaces W10119828 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 6 | | 8319539NLA Bearing, Lid Hinge (2) | Discontinued |
| 7 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 8 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 9 | | 8559336NLA Hinge, Lid (L.H.) | Discontinued |
| 10 |  | WP54583replaces 54583 Hinge, Lid (R.H.) | $8.57 Part Advantage |
| 11 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 12 |  | WP62780replaces 62780 Clip, Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 13 | | Dispenser, Bleach | - |
| 14 |  | WP308685replaces 3357011 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 15 | | Top | - |
| 16 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 17 |  | Cabinet | - |
| 18 |  | WP3390631replaces 3390631 Screw, 10−16 x 3/8 (4) | $2.30 Part Advantage |
| 19 | | 3976348NLA Absorber, Sound | Discontinued |
