Model
Amana NED5240TQ0
29"Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
NED5240TQ029"Electric Dryer
4 diagrams109 parts
Parts Sections (4)
Diagram

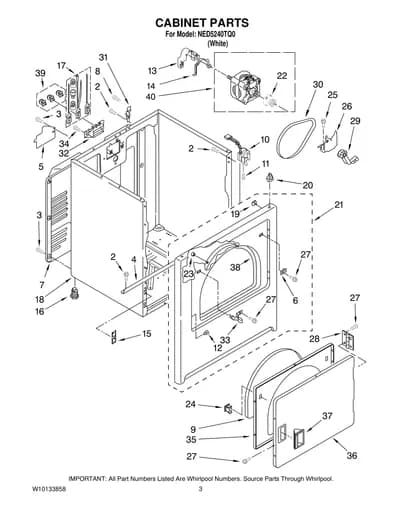

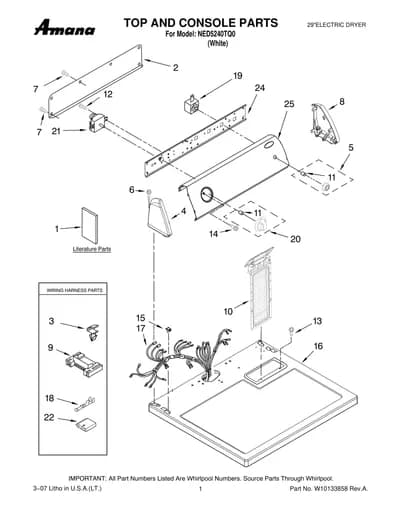

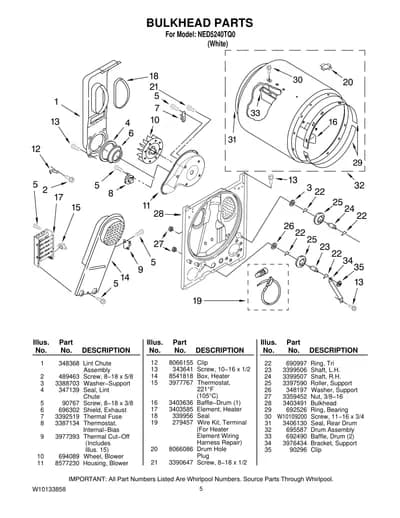

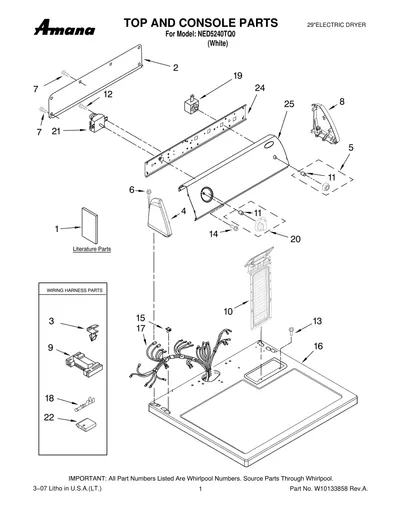

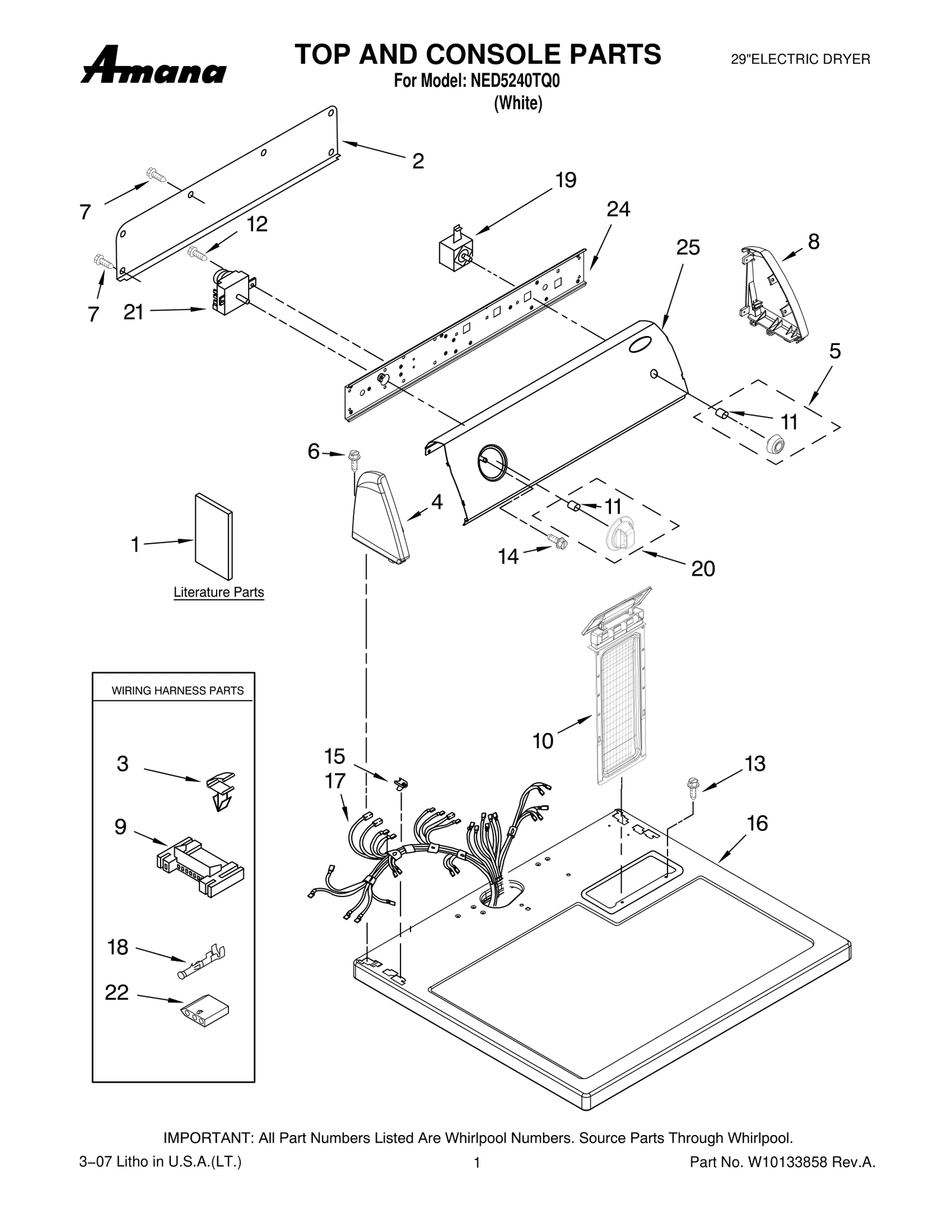

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088970 Installation, Installation | - |
| 1 | – | W10089173 Sheet, Cycle Feature | - |
| 1 | – | W10088771 Use & Care Guide | - |
| 1 | – | 8576793 Wiring Diagram | - |
| 2 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 3 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 4 |  | W10820038replaces 8271365 Cap, End (L.H.) | $62.39 PartSelect |
| 5 |  | WPW10110049replaces W10110049 Knob, Push−To−Start | - |
| 5 | | W10820038replaces 8271365 White | $62.39 PartSelect |
| 6 |  | WP388326replaces 388326 Screw, Console | $5.00 RepairClinic |
| 7 |  | WP489069replaces 693995 Screw, Hex Head | $2.30 Part Advantage |
| 8 | | W10820038replaces 8271359 Cap, End (R.H.) | $62.39 PartSelect |
| 9 |  | Housing, Connector | $40.40 ApplianceParts Pro |
| 10 |  | W11778253replaces 8558463 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 15 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 16 | – | 8557930 Top | - |
| 17 |  | WPW10450292replaces 8576500 Harness, Wiring | - |
| 18 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 19 |  | WP3977456replaces 3977456 Switch, Push−To−Start | $12.92 Part Advantage |
| 20 |  | Timer−Knob | - |
| 21 |  | WP8299778replaces 8299778 Timer, 60 Hz. | $149.54 Part Advantage |
| 22 |  | Connector | - |
| 24 | | Bracket−Control | - |
| 25 | – | W10086672 Panel−Control | - |
