Model
Amana NGD5100TQ0
29" Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
NGD5100TQ029" Gas Dryer
5 diagrams139 parts
Parts Sections (5)
Diagram

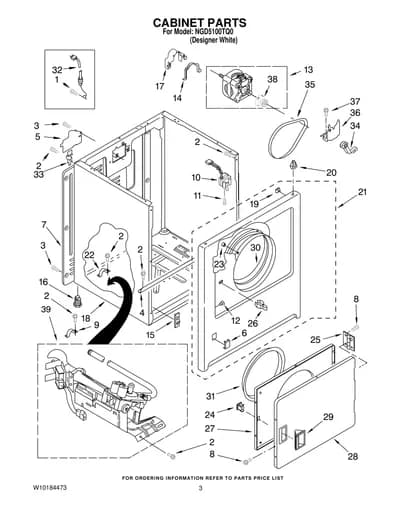

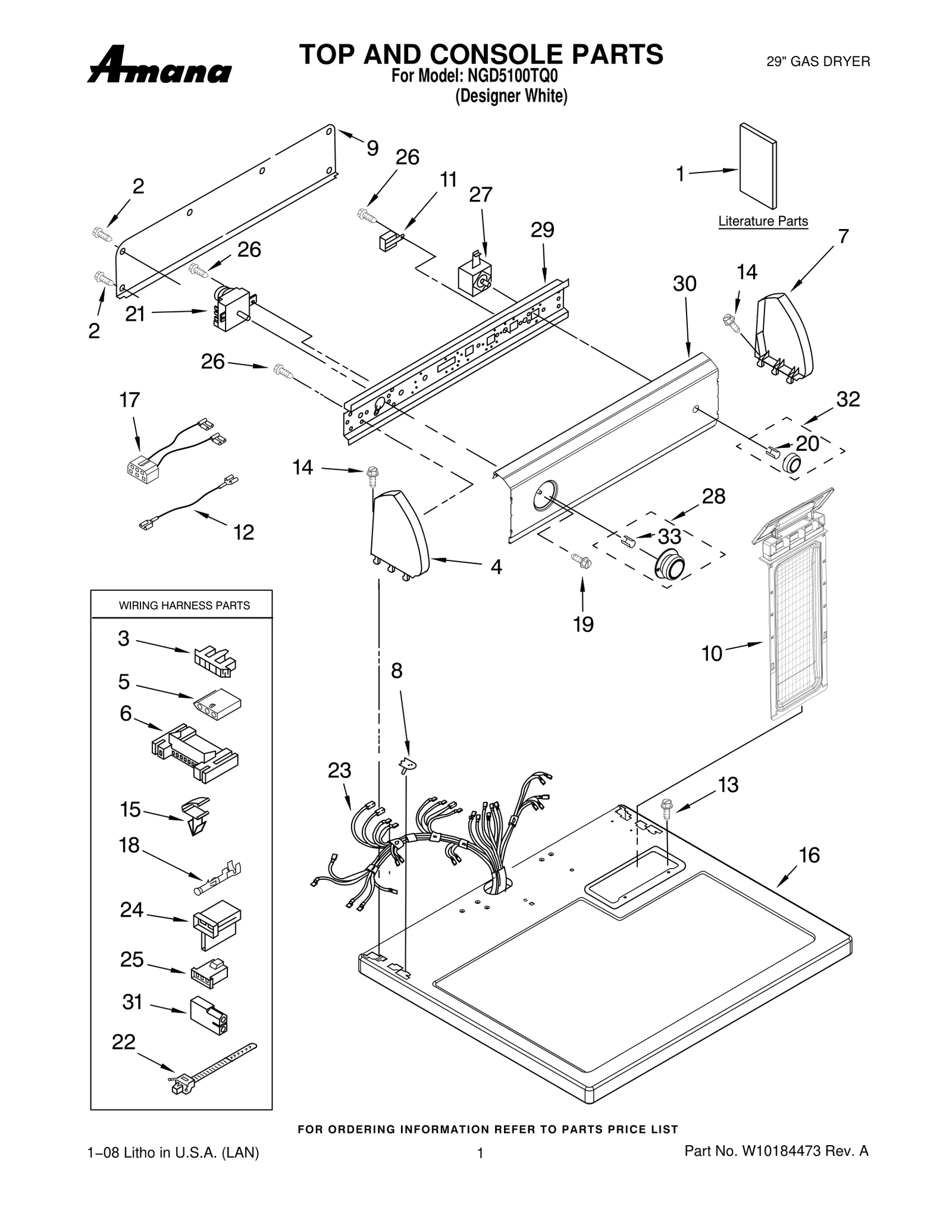

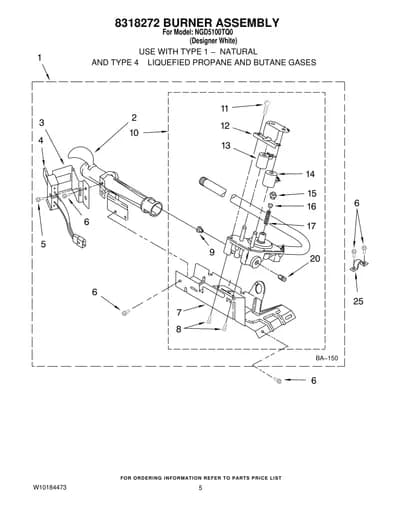

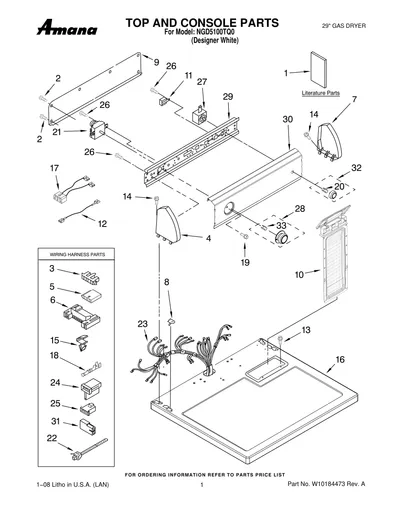

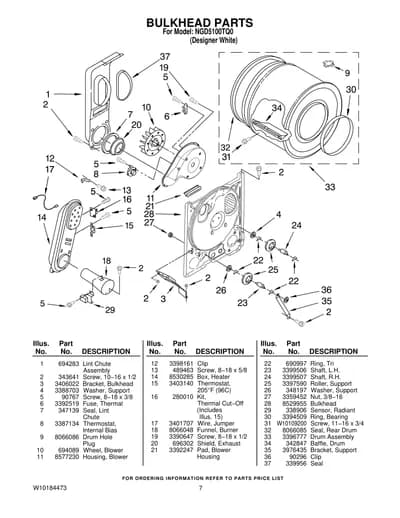

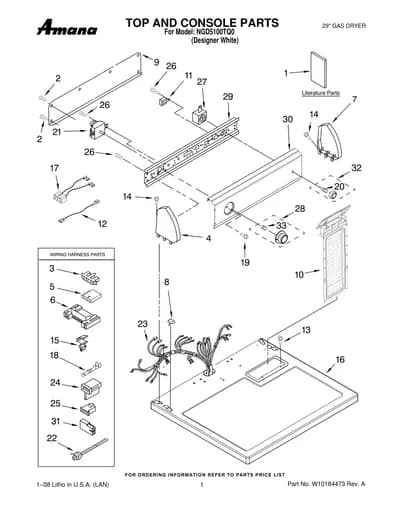

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10150620 Guide, Use & Care — English | - |
| 1 | – | W10150621 Guide, Use & Care — Spanish | - |
| 1 | – | W10150630 Guide, Use & Care — English | - |
| 1 | – | W10150631 Guide, Use & Care — Spanish | - |
| 1 | – | 8576793 Guide, Use & Care — Wiring Diagram | - |
| 1 | – | W10150656 Guide, Use & Care — English | - |
| 1 | – | W10150657 Guide, Use & Care — Spanish | - |
| 2 |  | WP489069replaces 693995 Screw, Hex Washer Head | $2.30 Part Advantage |
| 3 |  | Connector, Timer | - |
| 4 |  | W10820038replaces 8271359 Cap, End (L.H.) | $62.39 PartSelect |
| 5 |  | Connector | - |
| 6 |  | Connector | $40.40 ApplianceParts Pro |
| 7 | | W10820038replaces 8271365 Cap, End (R.H.) | $62.39 PartSelect |
| 8 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 9 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 10 |  | W10874409replaces 8558467 Screen, Lint | $37.37 Part Advantage |
| 11 |  | WP694419replaces 694419 Mini−Buzzer | $71.95 ApplianceParts Pro |
| 12 | – | 3393814 Jumper, Wire | - |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | WP388326replaces 388326 Screw, Console | $5.00 RepairClinic |
| 15 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 16 | – | 8557930 Top | - |
| 17 | – | 3393815 Jumper, Wire | - |
| 18 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 19 |  | 3400859replaces 8533951 Screw, 8−18 x 7/32 | $6.10 RepairClinic |
| 20 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 21 |  | WP8299764replaces 8299764 Timer | $160.95 ApplianceParts Pro |
| 22 |  | Tie, Cable | - |
| 23 | | Harness, Wiring | - |
| 24 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 25 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 26 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 27 |  | WP3977456replaces 3977456 Switch, Push−To−Start | $12.92 Part Advantage |
| 28 | | Timer Knob & Dial | - |
| 29 | | Bracket, Control | - |
| 30 | | Panel, Control | - |
| 31 | | 717252NLA Receptacle | Discontinued |
| 32 |  | WPW10110049replaces W10110049 Knob, Push−To−Start | - |
| 33 | | WP8536939replaces 8536939 Spring−Clip Knob | $3.55 Part Advantage |
