Model
Amana NGD5500TQ0
29" Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
NGD5500TQ029" Gas Dryer
5 diagrams151 parts

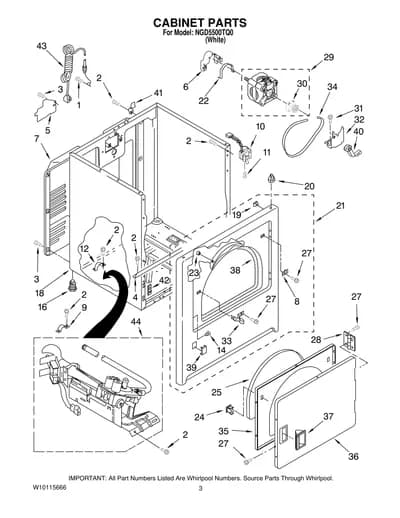

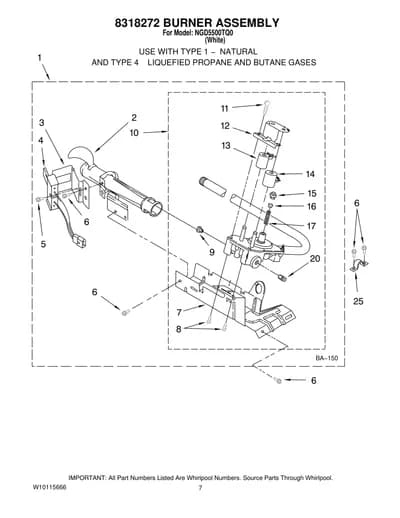

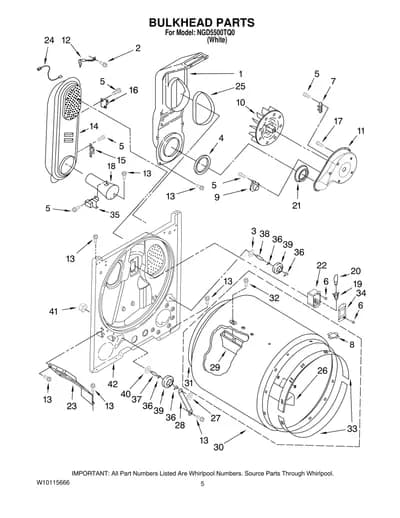

Parts Sections (5)
Diagram

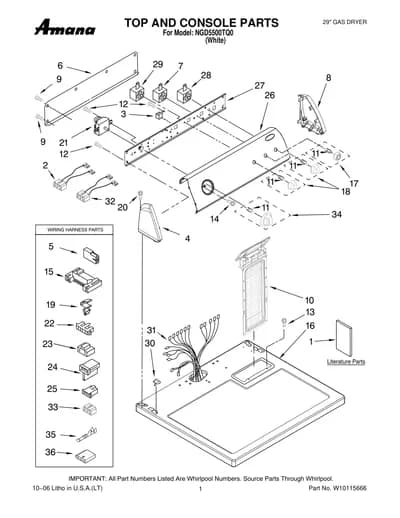

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088971 Instructions, | - |
| 1 | – | W10088771 Use & Care Guide | - |
| 1 | – | 8528190 Wiring Diagram | - |
| 1 | – | W10089173 Sheet, | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 |  | Wire, Jumper | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 |  | W10820038replaces 8271365 Cap, End (L.H.) — White | $62.39 PartSelect |
| 5 | | 717252NLA Plug, 2−Way Terminal | Discontinued |
| 6 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 7 |  | WP3399639replaces 3399639 Switch, Temperature | $31.25 Part Advantage |
| 8 | | W10820038replaces 8271359 Cap, End (R.H.) — White | $62.39 PartSelect |
| 9 |  | WP693995replaces 693995 Screw, Hex Washer Head | $1.73 Part Advantage |
| 10 |  | W11778253replaces 8558463 Screen, Lint — White | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | – | 8557930 Top — White | - |
| 17 |  | WPW10110049replaces W10110049 Knob, Push−To−Start — White | - |
| 18 |  | WPW10110047replaces W10110047 Knob, Control (2) — White | - |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | WP388326replaces 388326 Screw, Console | $5.00 RepairClinic |
| 21 |  | WP8299765replaces 8299765 Timer Assembly | $169.20 Part Advantage |
| 22 |  | Connector−Timer | - |
| 23 |  | Connector, | - |
| 24 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 25 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 26 | | Panel Control — White | - |
| 27 | | Bracket, Control | - |
| 28 |  | WP3398094replaces 3398094 Switch, Push−To−Start | $40.61 Part Advantage |
| 29 |  | Switch, Wrinkle Gaurd | - |
| 30 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 31 |  | Harness, Wiring | - |
| 32 |  | Wire, Jumper | - |
| 33 | | 3347243NLA Connector | Discontinued |
| 34 | | Timer Knob Assembly — White | - |
| 35 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 36 |  | Connector | - |
