Model
Maytag PBF1951KEW11
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
PBF1951KEW11Refrigerator
9 diagrams193 parts
Parts Sections (9)
Diagram

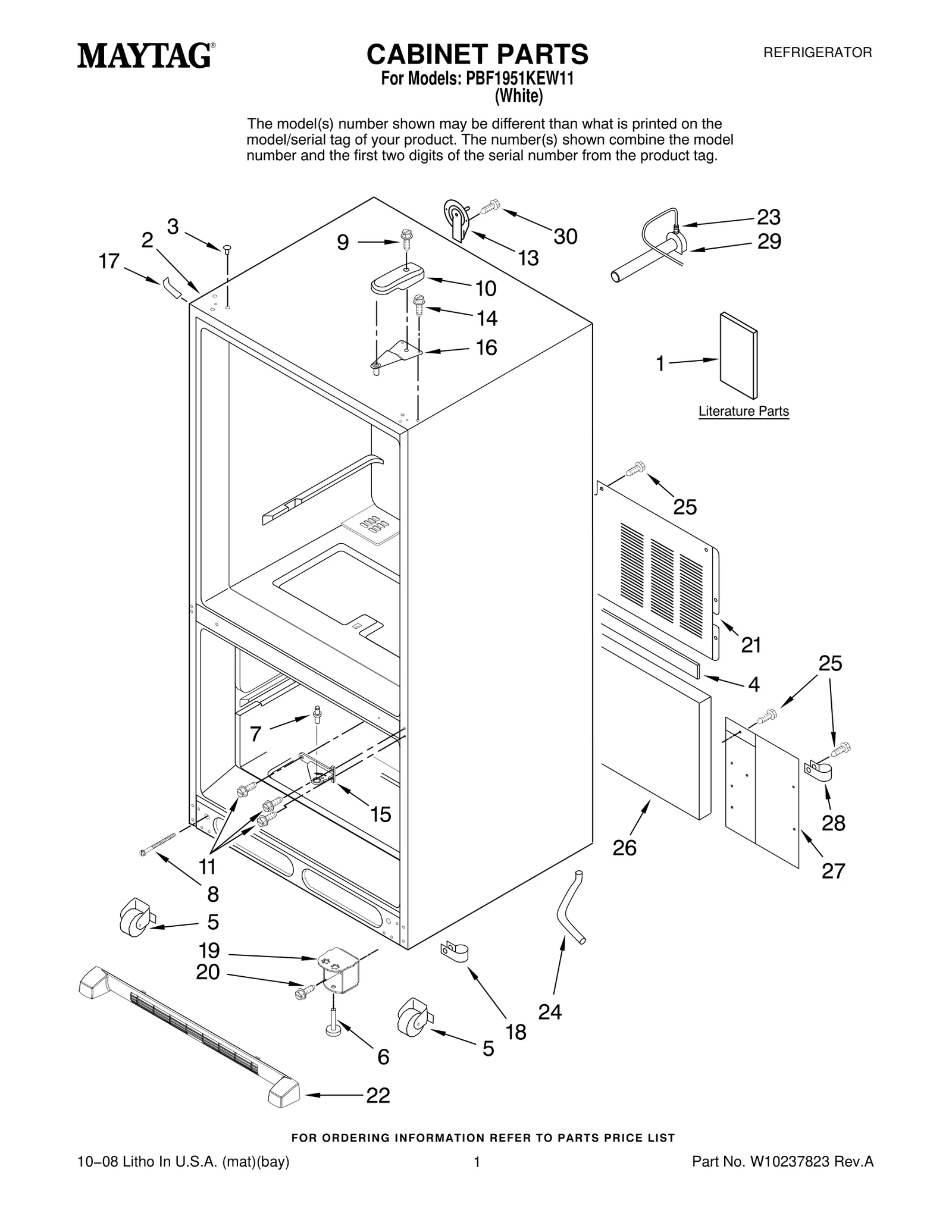

CABINET PARTS
Parts in CABINET PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175450 Use & Care Guide | - |
| 1 | – | W10183305 Energy Guide | - |
| 1 | – | W10169671 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP67001130replaces M0310729 Plug, Button (3) — White | $5.00 RepairClinic |
| 4 | – | B5759649 Gasket | - |
| 5 |  | 12580304NLA Roller Assy. (2) | Discontinued |
| 6 |  | WP67006744replaces 67006744 Foot, Brake | $5.95 ApplianceParts Pro |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Cover, Hinge — White | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 13 | | Cover, Water Line | - |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 | | W11689473replaces 67006960 Hinge, Center — White | $44.23 PartSelect |
| 16 |  | WP12566606EDreplaces 12566606ED Hinge, Top | $18.97 Parts Dr |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 18 | – | W10157973 Clip, Drain | - |
| 19 | – | 67001918 Bracket, Foot (2) | - |
| 20 |  | Screw (4) | $3.74 Parts Dr |
| 21 | – | 67006102 Cover, Unit | - |
| 22 | | 67003849NLA Grille, Toe — White | Discontinued |
| 23 |  | WPM0114003replaces M0114003 Clip, Speed | $7.95 ApplianceParts Pro |
| 24 |  | Tube, Drain | - |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | – | 67001173 Cover, Water Valve | - |
| 28 |  | W10833902replaces M0108105 Clamp, Tube | $2.97 RepairClinic |
| 29 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 30 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
