Model
Whirlpool RBD245PRS01
24" Built−In Electric Double Oven Std−Clean Lower Self−Clean Upper
Parts Sections (8)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RBD245PRS0124" Built−In Electric Double Oven Std−Clean Lower Self−Clean Upper
8 diagrams128 parts

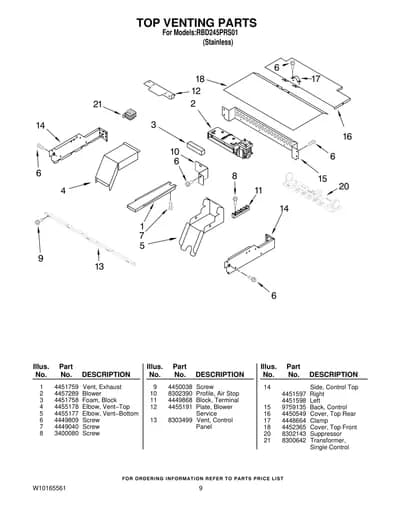

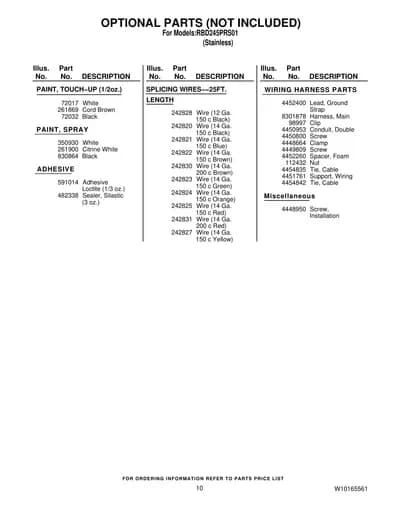

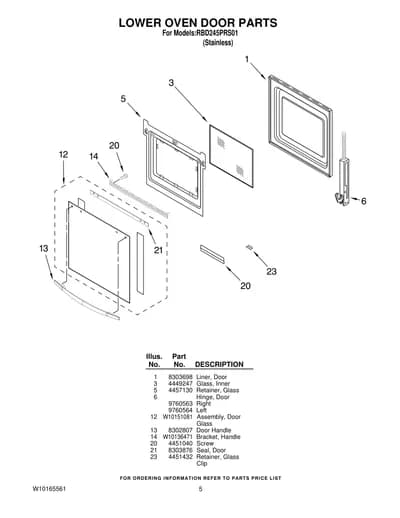

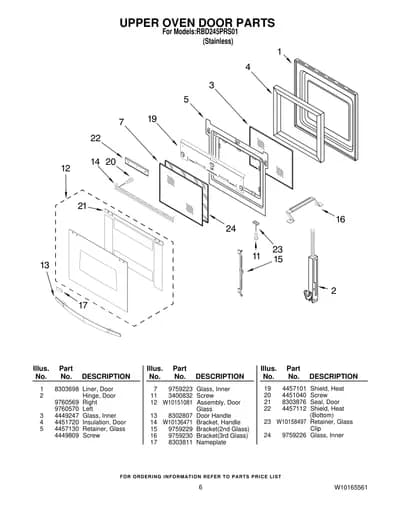

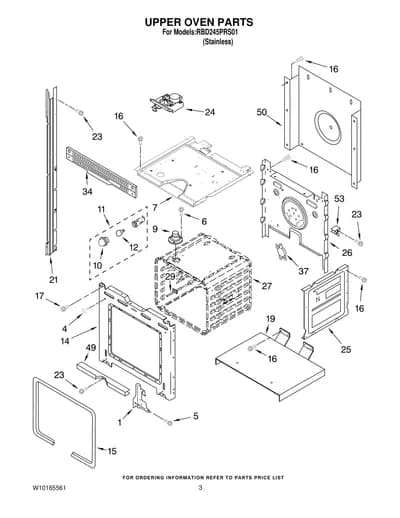

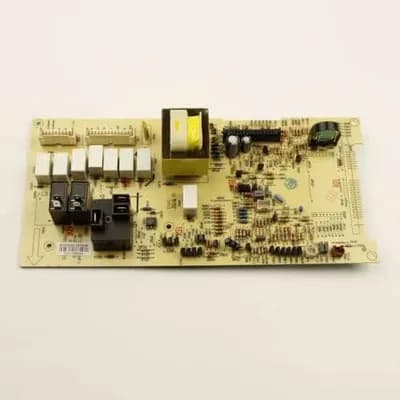

Parts Sections (8)
Diagram

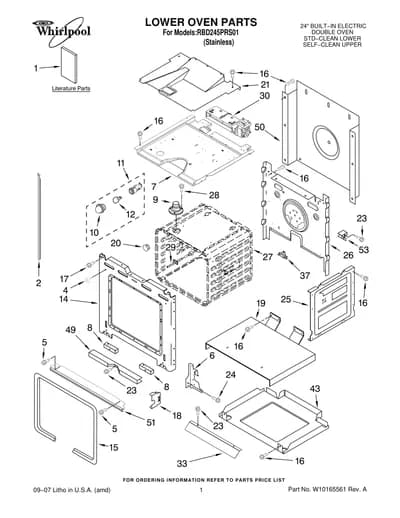

LOWER OVEN PARTS

Parts in LOWER OVEN PARTS
42 parts

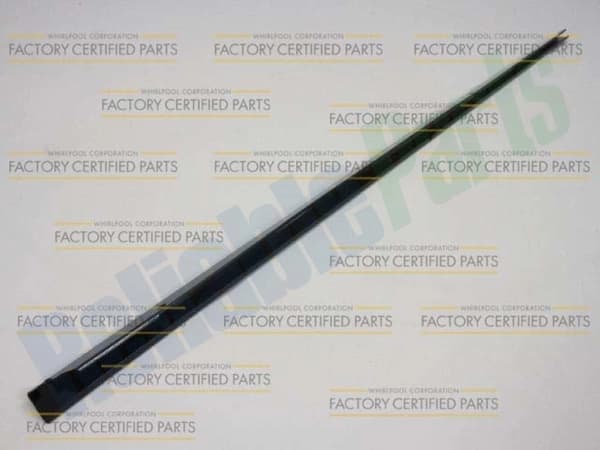

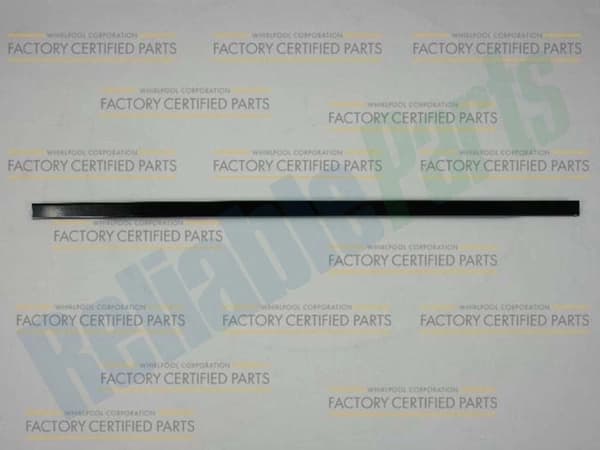

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8303871 Installation Instructions | - |
| 1 | – | 8303870 Use & Care Guide | - |
| 1 | – | 8302068 Tech Sheet | - |
| 1 | 3191638NLA Safer Cooking Tips | Discontinued | |
| 2 | ![]() | WPW10339499replaces W10136098 Trim, Side — Right | - |
| 2 | ![]() | WPW10339500replaces W10136099 Trim, Side — Left | - |
| 4 | Bumper, Door | Discontinued | |
| 5 | WP3400832replaces 3400832 Screw — Black | $2.30 Part Advantage | |
| 5 | WP3400805replaces 3400805 Screw — Zinc | $7.43 ApplianceParts Pro | |
| 6 | WP4455605replaces 4455605 Receiver, Hinge — Left | $54.41 Part Advantage | |
| 6 | WP4455606replaces 4455606 Receiver, Hinge — Right | $54.41 Part Advantage | |
| 7 | Top Chassis | - | |
| 8 | Spacer, Foam | - | |
| 9 | ![]() | W10861715replaces 4452159 Tube, Vent | - |
| 10 | Lens, Light | - | |
| 11 | WPW10734065replaces W10009930 Assembly, Oven Light | - | |
| 12 | WP4173175replaces 4452166 Bulb, Light | $27.68 Part Advantage | |

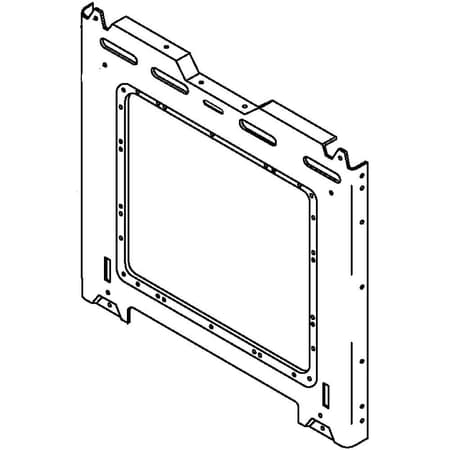

| 14 | ![]() | Frame, Front | - |
| 15 | W10203263replaces 4450491 Gasket, Door | - | |
| 16 | WP4449809replaces 4449809 Screw | $2.41 Part Advantage | |
| 17 | WPW10650400replaces 4449040 Screw | - | |
| 18 | ![]() | Bracket, Mounting Bottom Vent | - |
| 19 | Support, Insulation | - | |
| 20 | Plug, Door | - | |
| 21 | ![]() | Divider, Center Vent | - |
| 23 | WP4449154replaces 4449154 Screw | $3.72 Parts Dr | |
| 24 | WP4449743replaces 4449743 Screw | $5.00 RepairClinic | |
| 25 | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic | |
| 26 | Back, Chassis | - | |
| 27 | – | N/S Liner, Oven | - |
| 28 | W11233072replaces 3196176 Screw | $8.78 Part Advantage | |
| 29 | WPW10131825replaces 4455636 Sensor | $50.18 Part Advantage | |
| 30 | WPW10016550replaces W10016550 Blower | $118.92 Part Advantage | |
| 33 | Deflector, Vent | - | |
| 37 | WP4451354replaces 4451354 Fuse−Thermal | $36.95 ApplianceParts Pro | |
| 43 | ![]() | Base, Chassis | $38.84 RepairClinic |
| 49 | WP4448933replaces 4448933 Retainer, Gasket | $5.00 RepairClinic | |
| 50 | WP4451747replaces 4451747 Cover, Back | $36.75 RepairClinic | |
| 51 | W10153077NLA Trim, Bottom Vent | Discontinued | |
| 53 | Support, Bracket NOT ILLUSTRATED INSULATION | - | |
| 53 | WP4449314replaces 4449314 Insulation, Wrap | - | |
| 53 | WP4450363replaces 4450363 Insulation, Back | - |
