Model
Whirlpool RCC3024RB03
30" Electric Built−In Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RCC3024RB0330" Electric Built−In Cooktop
2 diagrams49 parts
Parts Sections (2)
Diagram

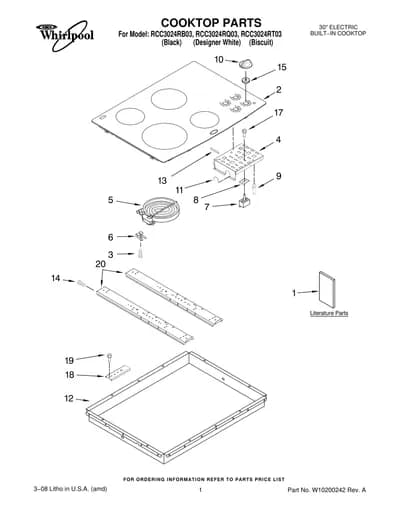

COOKTOP PARTS
Parts in COOKTOP PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8286066NLA Installation Instructions — Cooktop | Discontinued |
| 1 | – | 8304571 Installation Instructions — Undercounter Oven | - |
| 1 | – | 8286337 Installation Instructions — Wiring Diagram | - |
| 1 | – | W10162165 Installation Instructions — Use & Care Guide | - |
| 1 | – | 9762761 Installation Instructions — English | - |
| 1 | – | W10065852 Installation Instructions — French | - |
| 2 | | W10140990NLA Cooktop, Glass — Black | Discontinued |
| 2 | | Cooktop, Glass — Designer White | - |
| 2 | | W10141724NLA Cooktop, Glass — Biscuit | Discontinued |
| 3 |  | WP486754replaces 246119 Screw (8) | $5.95 ApplianceParts Pro |
| 4 | – | 8285935 Bracket, Switch Mounting | - |
| 4 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 4 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 5 |  | W10823711replaces 8523698 Element, Surface — 1200W LR−RF | $92.55 Part Advantage |
| 5 |  | W10823698replaces 8523696 Element, Surface — 1800W RR | $83.15 Part Advantage |
| 5 |  | W10823696replaces 8523692 Element, Surface — 2500W LF | $87.70 Amazon |
| 6 |  | Spring,Locator (8) | $7.15 ApplianceParts Pro |
| 7 |  | WP3191049replaces 3191049 Switch, Infinite — 1200W LR−RF | $66.87 Part Advantage |
| 7 |  | WP3191050replaces 3191050 Switch, Infinite — 1700W RR | $70.13 Part Advantage |
| 7 |  | WP4454541replaces 4454541 Switch, Infinite — 2400W LF | $62.81 Part Advantage |
| 8 |  | Seal, Switch Cover | $27.77 Part Advantage |
| 9 |  | Light, Indicator | - |
| 10 |  | WP8286043BLreplaces 8286043BL Knob, Control (4) — Black | $10.83 Part Advantage |
| 10 |  | Knob, Control (4) — Designer White | - |
| 10 |  | Knob, Control (4) — Biscuit | $28.36 RepairClinic |
| 11 | – | 8286607 Grommet, Flexible | - |
| 12 | | Box, Burner | - |
| 13 |  | W10491984replaces 3192439 Seal, Limiter | $6.20 Parts Dr |
| 14 | | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 |  | Seal, Switch Shaft (4) | $28.85 Part Advantage |
| 17 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 18 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 19 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 20 | | Rail, Element | - |
