Model
Whirlpool RCS2002RS04
20"Electric Built−In Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RCS2002RS0420"Electric Built−In Cooktop
2 diagrams40 parts
Parts Sections (2)
Diagram

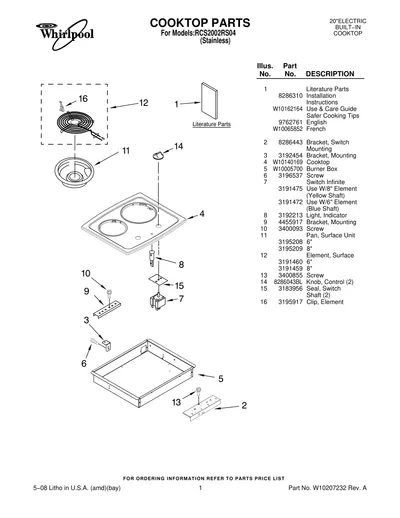

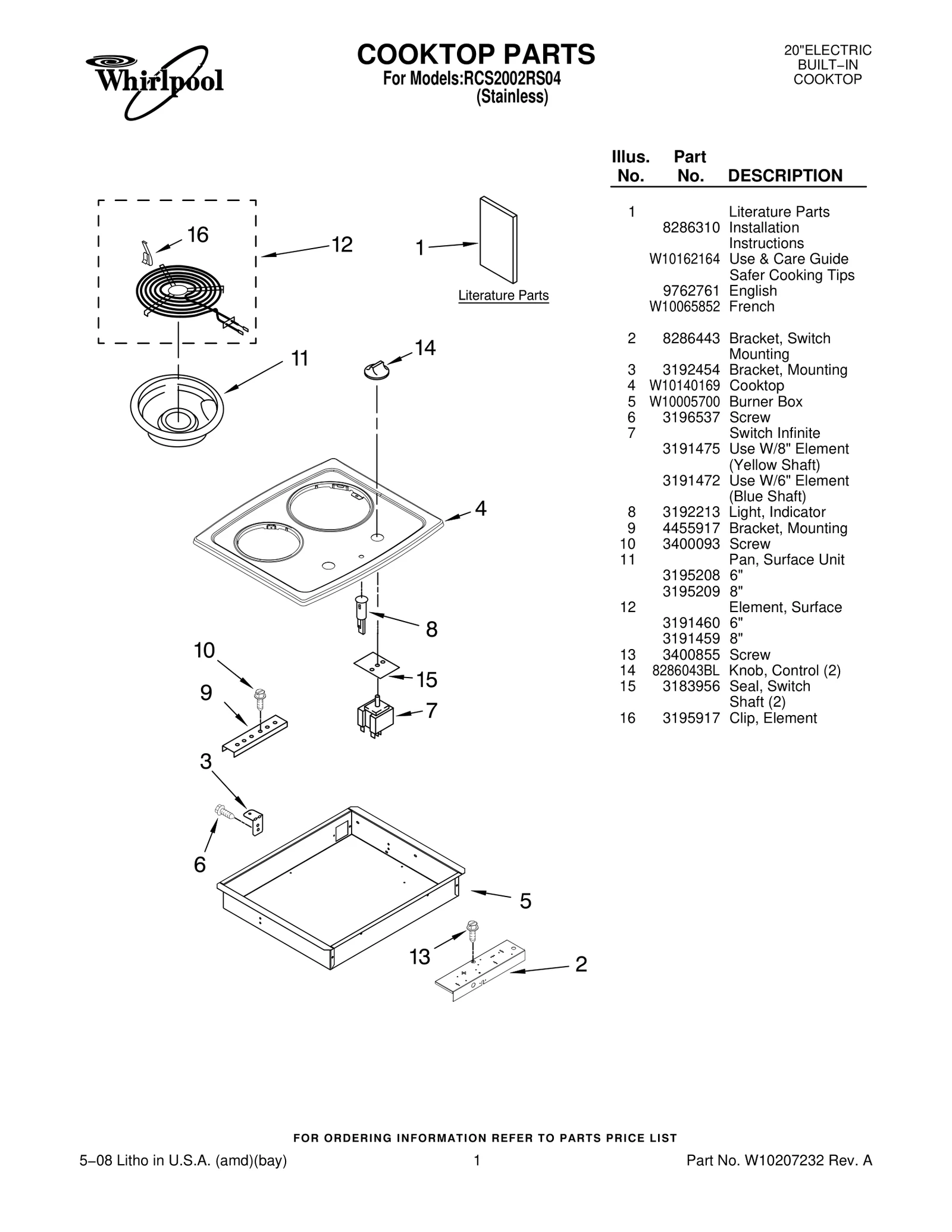

COOKTOP PARTS
Parts in COOKTOP PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286310 Installation Instructions | - |
| 1 | – | W10162164 Use & Care Guide Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WP8286443replaces 8286443 Bracket, Switch Mounting | - |
| 3 | | Bracket, Mounting | - |
| 4 |  | WPW10140169replaces W10140169 Cooktop | - |
| 5 | | Burner Box | - |
| 6 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 7 | | 3191475NLA Switch Infinite — Use W/8" Element | Discontinued |
| 7 |  | WP3191472replaces 3191472 Switch Infinite — Use W/6" Element | $71.90 Part Advantage |
| 8 | | 3192213NLA Light, Indicator | Discontinued |
| 9 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 10 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 11 |  | W10196406RWreplaces 3195208 Pan, Surface Unit — 6" | $14.95 ApplianceParts Pro |
| 11 |  | W10196405RWreplaces 3195209 Pan, Surface Unit — 8" | $13.55 ApplianceParts Pro |
| 12 |  | WP3191460replaces 3191460 Element, Surface — 6" | - |
| 12 | | 3191459NLA Element, Surface — 8" | Discontinued |
| 13 | | Screw | $5.86 ApplianceParts Pro |
| 14 |  | WP8286043BLreplaces 8286043BL Knob, Control (2) | $10.83 Part Advantage |
| 15 |  | Seal, Switch Shaft (2) | $27.77 Part Advantage |
| 16 |  | WP3195917replaces 3195917 Clip, Element | $9.57 ApplianceParts Pro |
