Model
Whirlpool RCS3004RS03
30" Electric Built−In Cooktop
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RCS3004RS0330" Electric Built−In Cooktop
1 diagram29 parts
Parts Sections (1)
Diagram

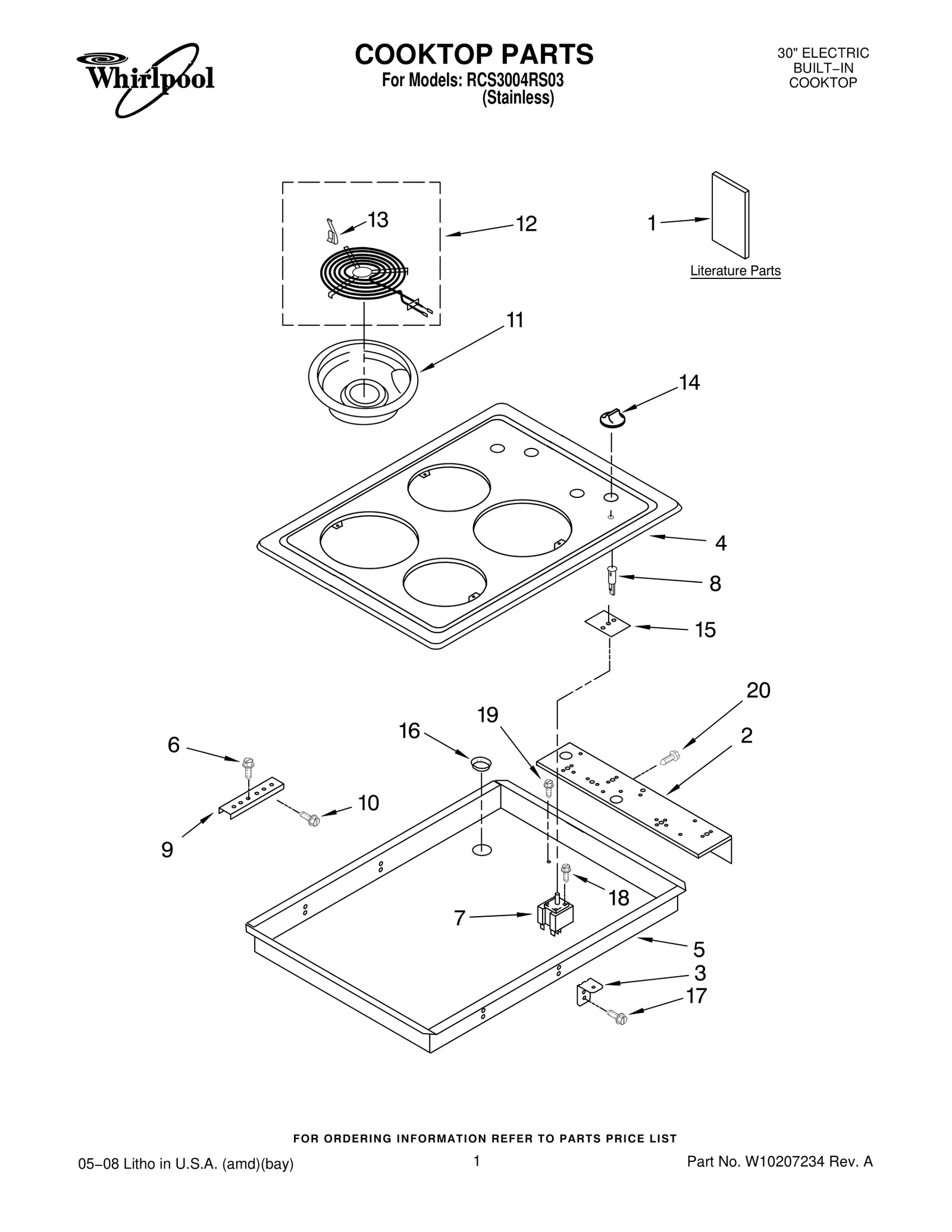

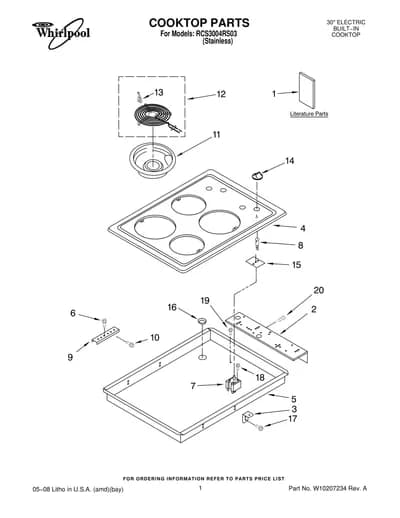

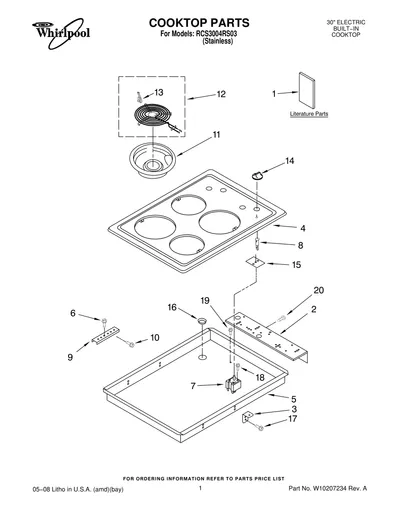

COOKTOP PARTS
Parts in COOKTOP PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286310 Installation Instructions | - |
| 1 | – | W10162164 Use & Care Guide Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 | – | 8286401 Bracket, Switch Mounting | - |
| 3 |  | Bracket, Mounting | - |
| 4 | | W10140171NLA Cooktop | Discontinued |
| 5 | | Burner Box | - |
| 6 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 7 |  | WP3191472replaces 3191472 Switch, Infinite — Use W/8" Element | $71.90 Part Advantage |
| 7 |  | WP3191471replaces 3191471 Switch, Infinite — Use W/6" Element | $80.43 Part Advantage |
| 8 |  | WP4456181replaces 4456181 Light, Indicator | $34.62 Part Advantage |
| 9 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 10 | | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 11 |  | WPW10196406replaces W10196406 6" Pan (2) | $2.31 Part Advantage |
| 11 |  | WPW10196405replaces W10196405 8" Pan (2) | $2.92 Part Advantage |
| 12 |  | WPW10345407replaces 8053265 6" (2) | $64.82 Part Advantage |
| 12 |  | WP9761346replaces 8053267 8" (2) | $40.71 Part Advantage |
| 13 |  | WP3195917replaces 3195917 Clip, Element | $9.57 ApplianceParts Pro |
| 14 |  | WP8286043BLreplaces 8286043BL Knob, Control (4) | $10.83 Part Advantage |
| 15 |  | Seal, Switch | $27.77 Part Advantage |
| 16 | | Bushing, Conduit | - |
| 17 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 18 | | Screw | $5.86 ApplianceParts Pro |
| 19 | | WP3400015replaces 3400015 Screw | - |
| 20 |  | WP3177991replaces 3177991 Screw | $3.74 Parts Dr |
| 20 | | Harness, Main | - |
| 20 | | Grommet | - |
| 20 | – | 8286375 Conduit Assembly | - |
| 20 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
