ModelWhirlpool
RF111PXSQ330" Electric Freestanding Standard Clean Range
6 diagrams133 parts
Parts Sections (6)
Diagram

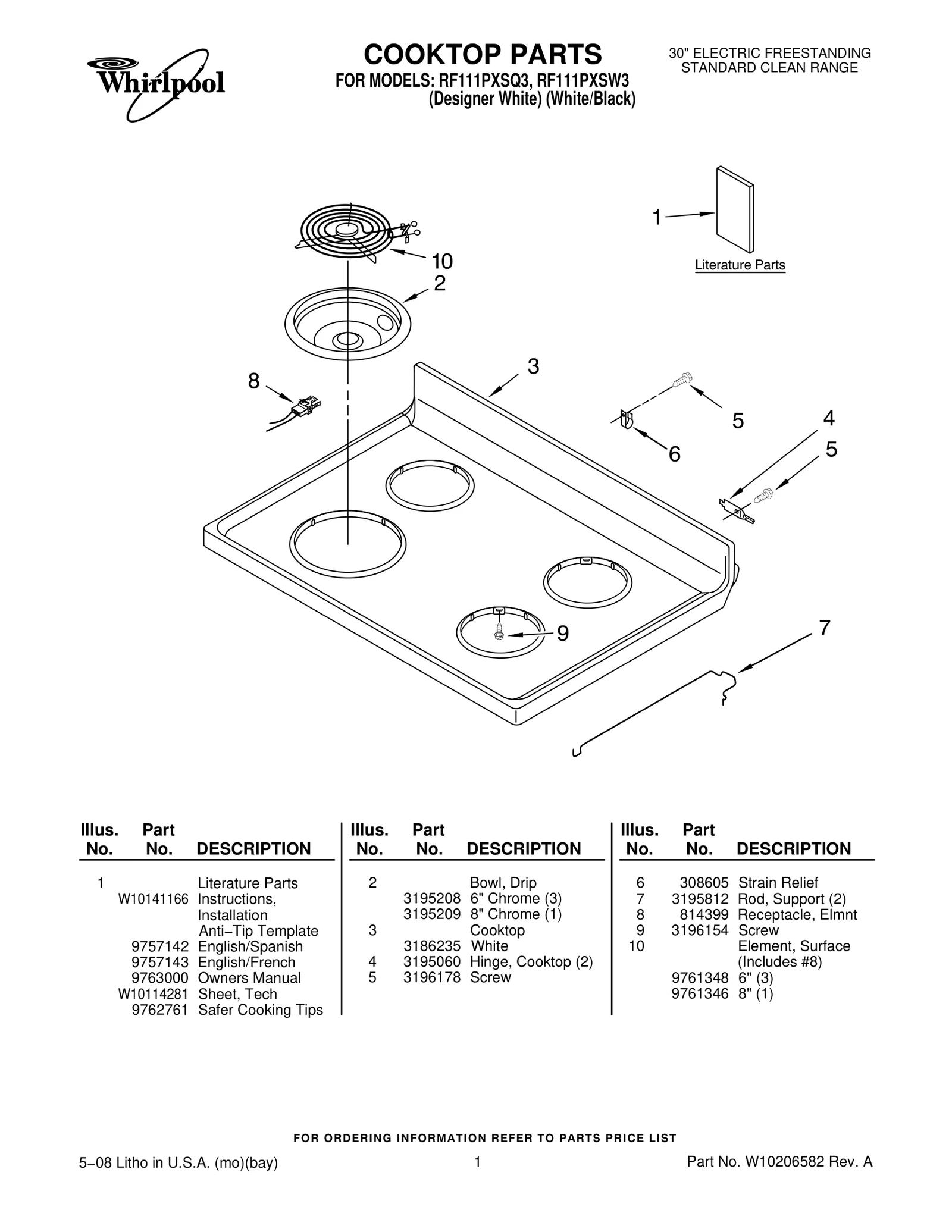

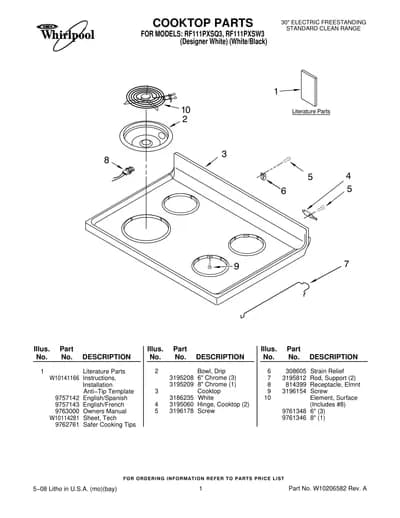

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10141166 Instructions, Installation Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9763000 Owners Manual | - |
| 1 | – | W10114281 Sheet, Tech | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | W10196406RWreplaces 3195208 6" Chrome (3) | $14.95 ApplianceParts Pro |
| 2 |  | W10196405RWreplaces 3195209 8" Chrome (1) | $13.55 ApplianceParts Pro |
| 3 |  | 3186235NLA Cooktop — White | Discontinued |
| 4 |  | WP3195060replaces 3195060 Hinge, Cooktop (2) | $3.87 Part Advantage |
| 5 |  | W11233072replaces 3196178 Screw | $8.78 Part Advantage |
| 6 | | Strain Relief | - |
| 7 |  | WP3195812replaces 3195812 Rod, Support (2) | $2.30 Part Advantage |
| 8 |  | Receptacle, Elmnt | $15.05 Part Advantage |
| 9 |  | WP3196154replaces 3196154 Screw | $3.74 Parts Dr |
| 10 |  | WPW10345407replaces 9761348 6" (3) | $64.82 Part Advantage |
| 10 |  | WP9761346replaces 9761346 8" (1) | $40.71 Part Advantage |
