Model
Whirlpool RF263LXTS3
30" Electric Freestanding Self Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RF263LXTS330" Electric Freestanding Self Clean Range
6 diagrams175 parts
Parts Sections (6)
Diagram

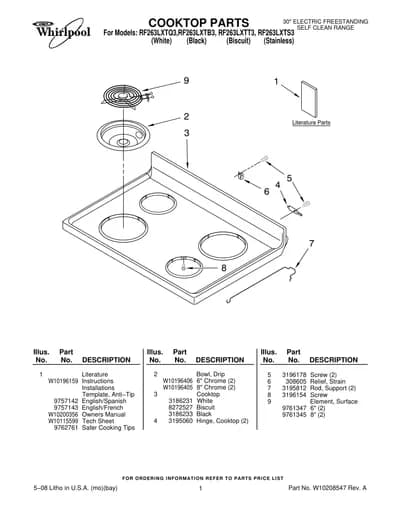

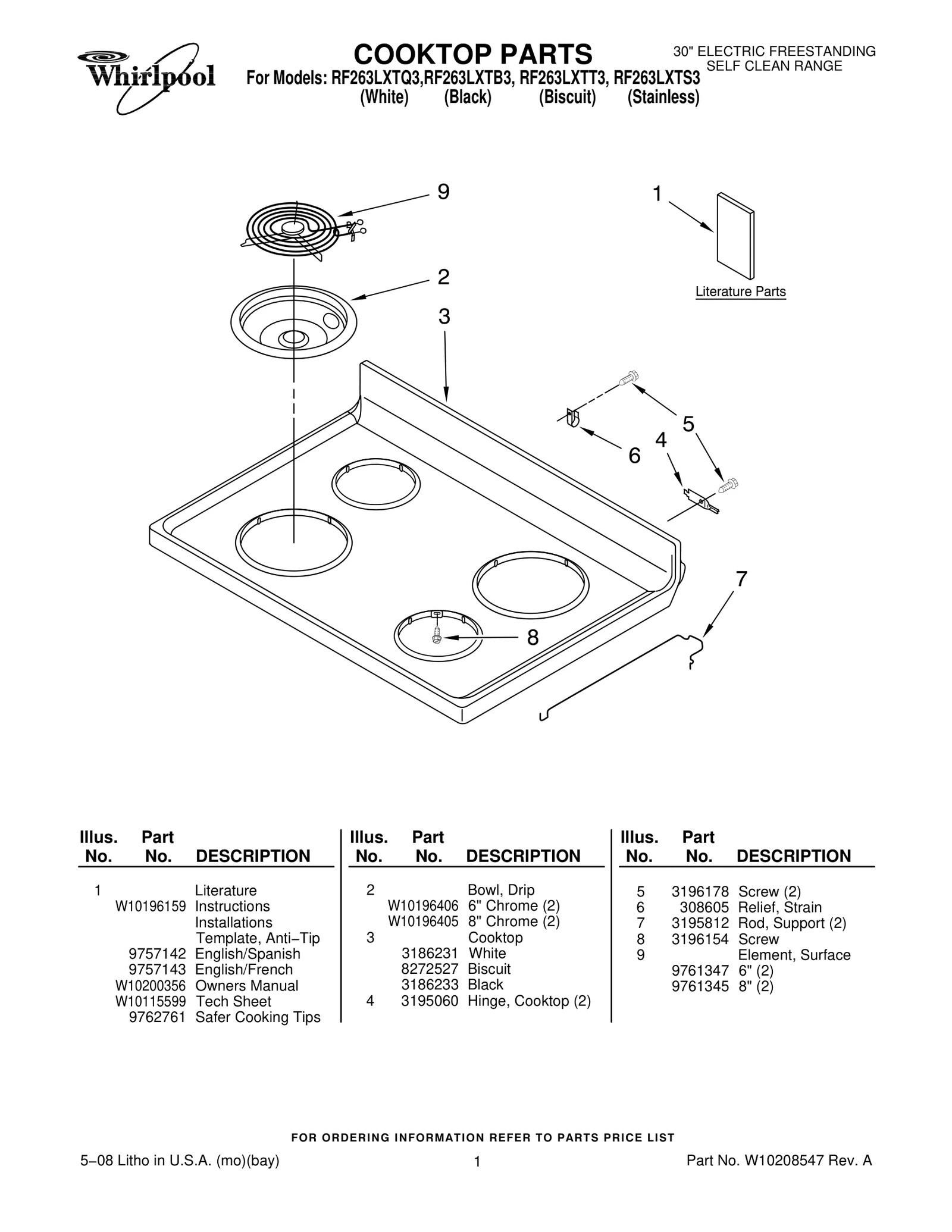

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196159 Instructions | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 |  | W10200356NLA Owners Manual | Discontinued |
| 1 | – | W10115599 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10196406replaces W10196406 6" Chrome (2) | $2.31 Part Advantage |
| 2 |  | WPW10196405replaces W10196405 8" Chrome (2) | $2.92 Part Advantage |
| 3 |  | 8195532replaces 3186231 Cooktop — White | $228.56 PartSelect |
| 3 | – | 8272527 Cooktop — Biscuit | - |
| 3 |  | 8195534replaces 3186233 Cooktop — Black | $286.77 PartSelect |
| 4 |  | WP3195060replaces 3195060 Hinge, Cooktop (2) | $3.87 Part Advantage |
| 5 |  | W11233072replaces 3196178 Screw (2) | $8.78 Part Advantage |
| 6 | | Relief, Strain | - |
| 7 |  | WP3195812replaces 3195812 Rod, Support (2) | $2.30 Part Advantage |
| 8 |  | WP3196154replaces 3196154 Screw | $3.74 Parts Dr |
| 9 |  | WP660532replaces 9761347 6" (2) | $13.01 Part Advantage |
| 9 |  | WPW10259865replaces 9761345 8" (2) | $82.84 Part Advantage |
