Model
Whirlpool RF362LXTS3
30" Electric Ceran Freestanding Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RF362LXTS330" Electric Ceran Freestanding Range
6 diagrams177 parts
Parts Sections (6)
Diagram

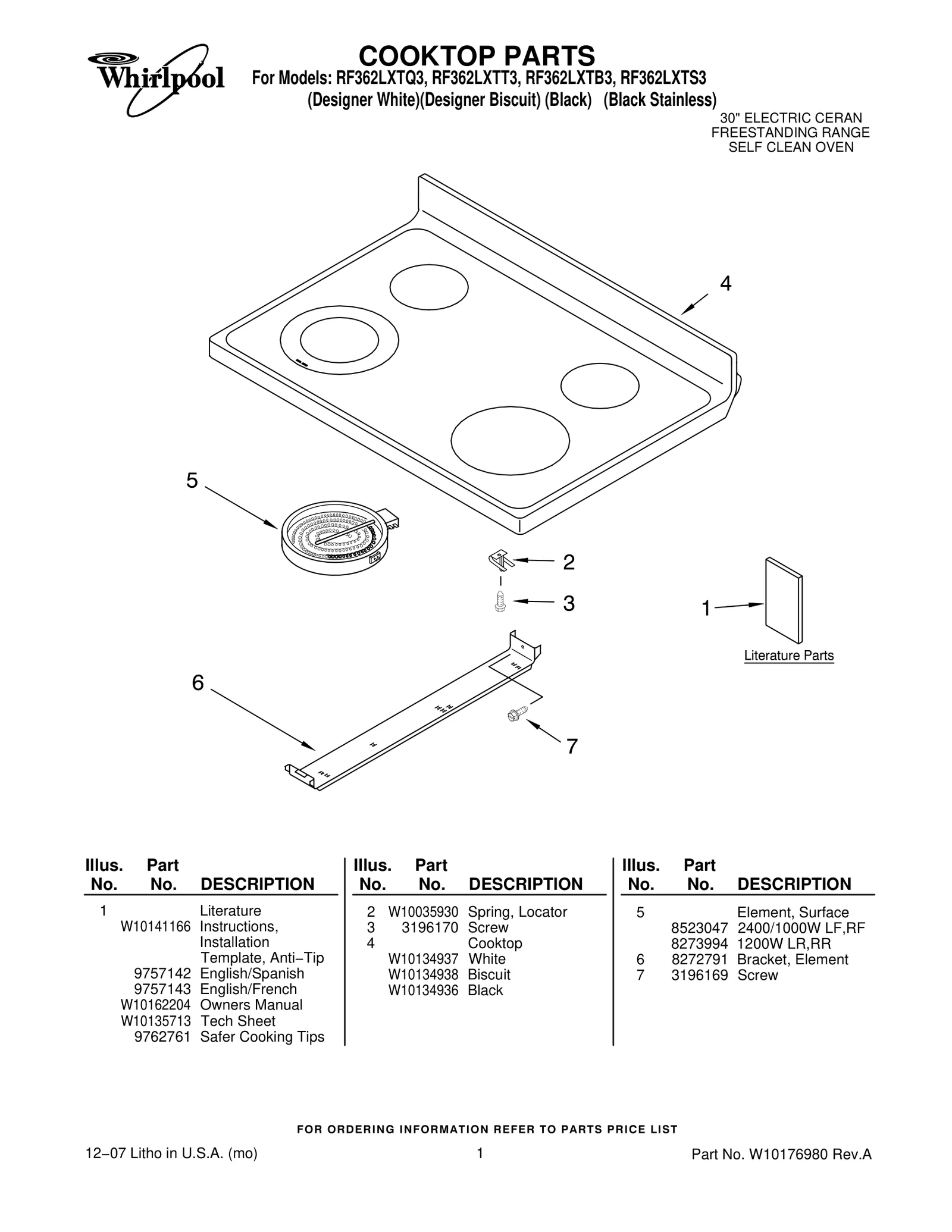

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10141166 Instructions, | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10162204 Owners Manual | - |
| 1 | – | W10135713 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | W10134937 Cooktop — White | - |
| 4 | – | W10134938 Cooktop — Biscuit | - |
| 4 | | Cooktop — Black | Discontinued |
| 5 |  | WP8523047replaces 8523047 2400/1000W LF,RF | $124.56 Parts Dr |
| 5 |  | W11171119replaces 8273994 1200W LR,RR | $85.73 Part Advantage |
| 6 | | Bracket, Element | - |
| 7 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
