Model
Whirlpool RS160LXTB0
30" Drop−In Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RS160LXTB030" Drop−In Electric Range
5 diagrams135 parts

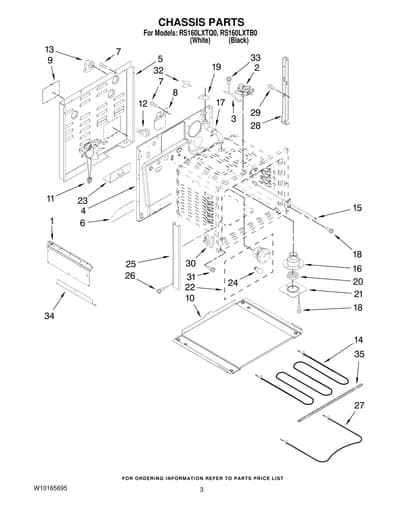

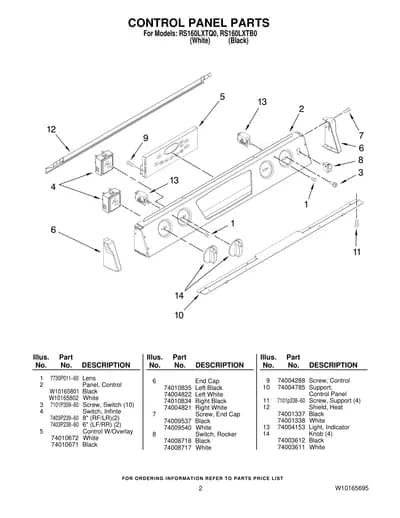

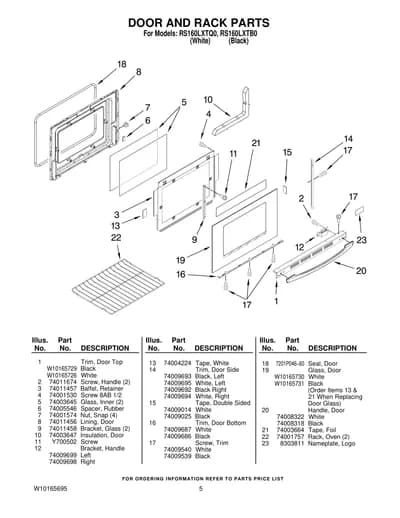

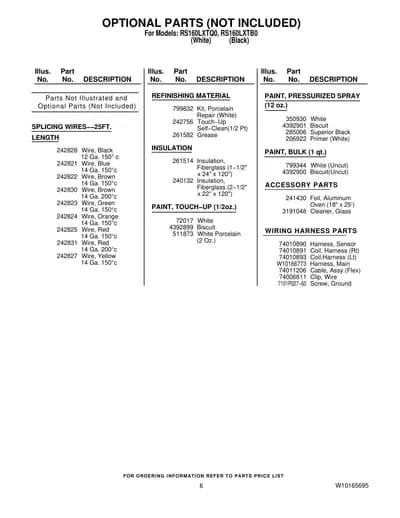

Parts Sections (5)
Diagram

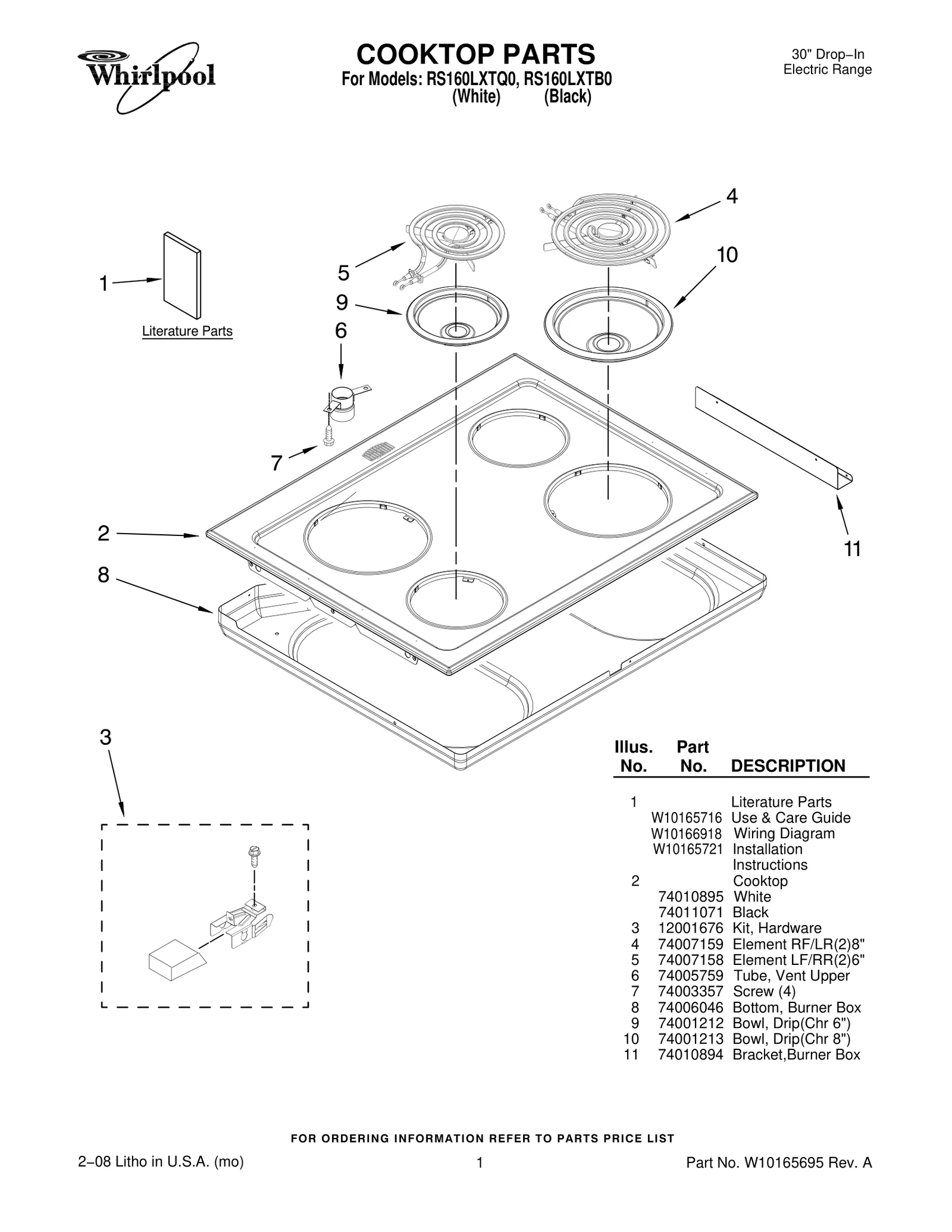

COOKTOP PARTS
Parts in COOKTOP PARTS
14 parts

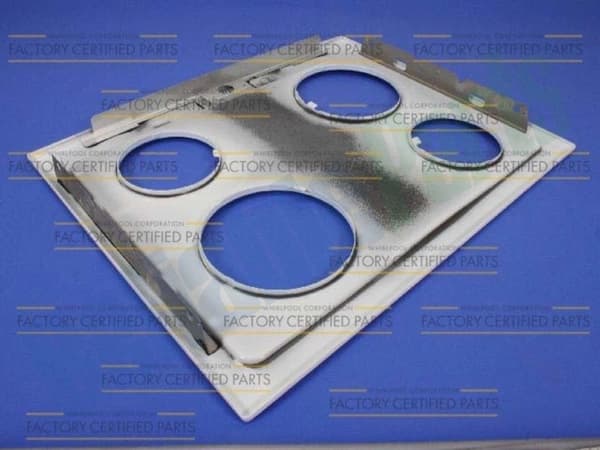

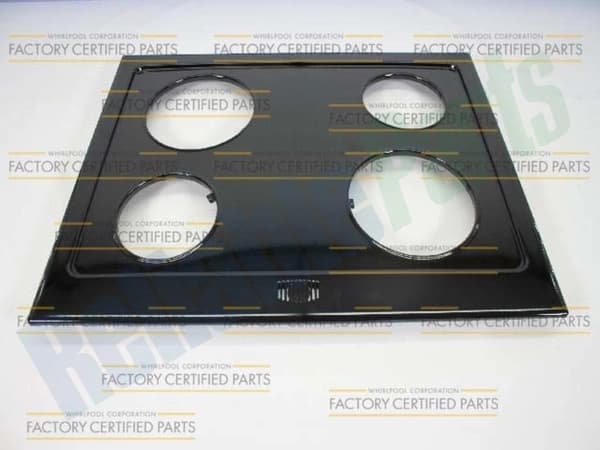

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10165716 Use & Care Guide | - |
| 1 | – | W10166918 Wiring Diagram | - |
| 1 | – | W10165721 Installation Instructions | - |
| 2 |  | 2002M200-81replaces 74010895 Cooktop — White | - |
| 2 |  | 2002M200-09replaces 74011071 Cooktop — Black | - |
| 3 |  | Kit, Hardware | $5.04 Amazon |

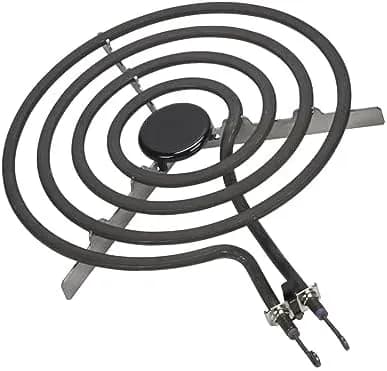

| 4 |  | WP9761346replaces 74007159 Element RF/LR(2)8" | $40.71 Part Advantage |

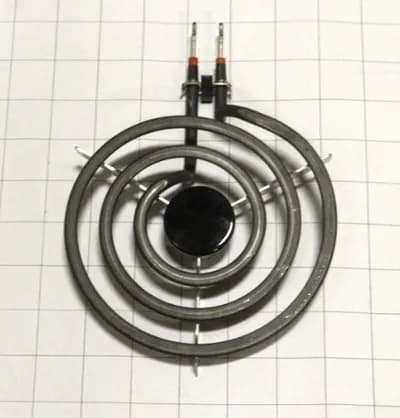

| 5 |  | WPW10345407replaces 74007158 Element LF/RR(2)6" | $64.82 Part Advantage |
| 6 | – | 74005759 Tube, Vent Upper | - |
| 7 |  | WP7101P498replaces 74003357 Screw (4) | $7.30 |
| 8 | – | 74006046 Bottom, Burner Box | - |
| 9 |  | W10196406RWreplaces 74001212 Bowl, Drip(Chr 6") | $14.95 ApplianceParts Pro |

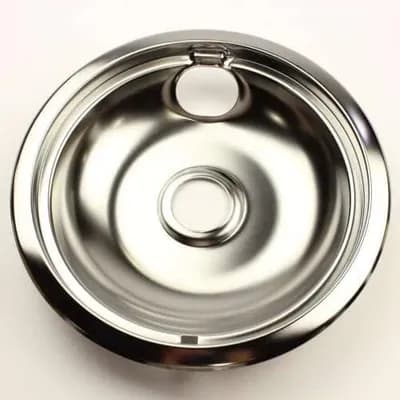

| 10 |  | WPW10196405replaces 74001213 Bowl, Drip(Chr 8") | $2.92 Part Advantage |
| 11 | | 3801F881-51replaces 74010894 Bracket,Burner Box | - |
