Model
Whirlpool RS160LXTB1
30" Drop−In Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RS160LXTB130" Drop−In Electric Range
5 diagrams118 parts
Parts Sections (5)

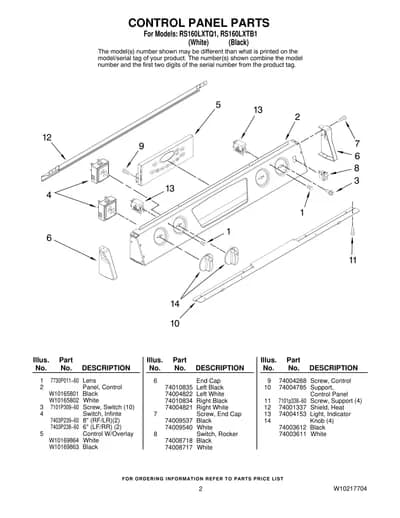

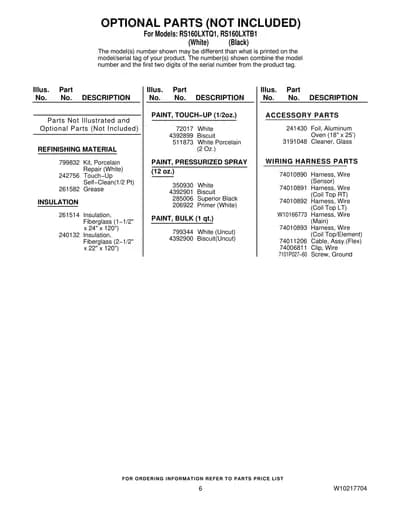

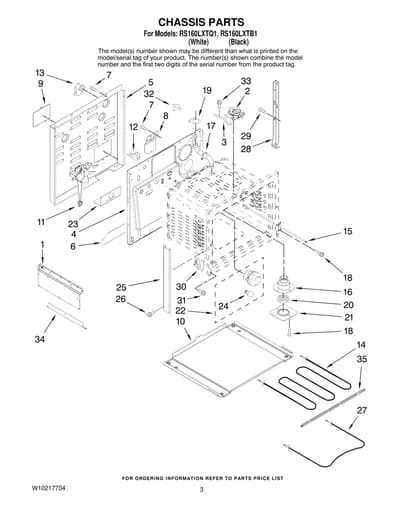

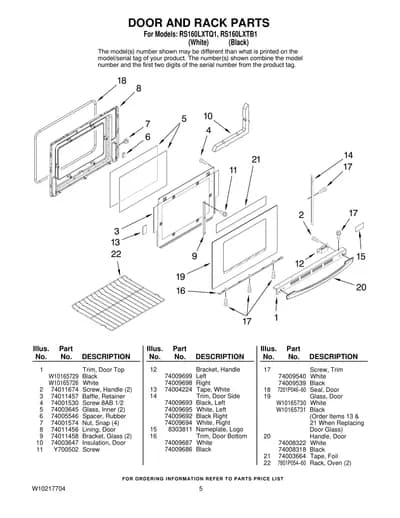

Diagram

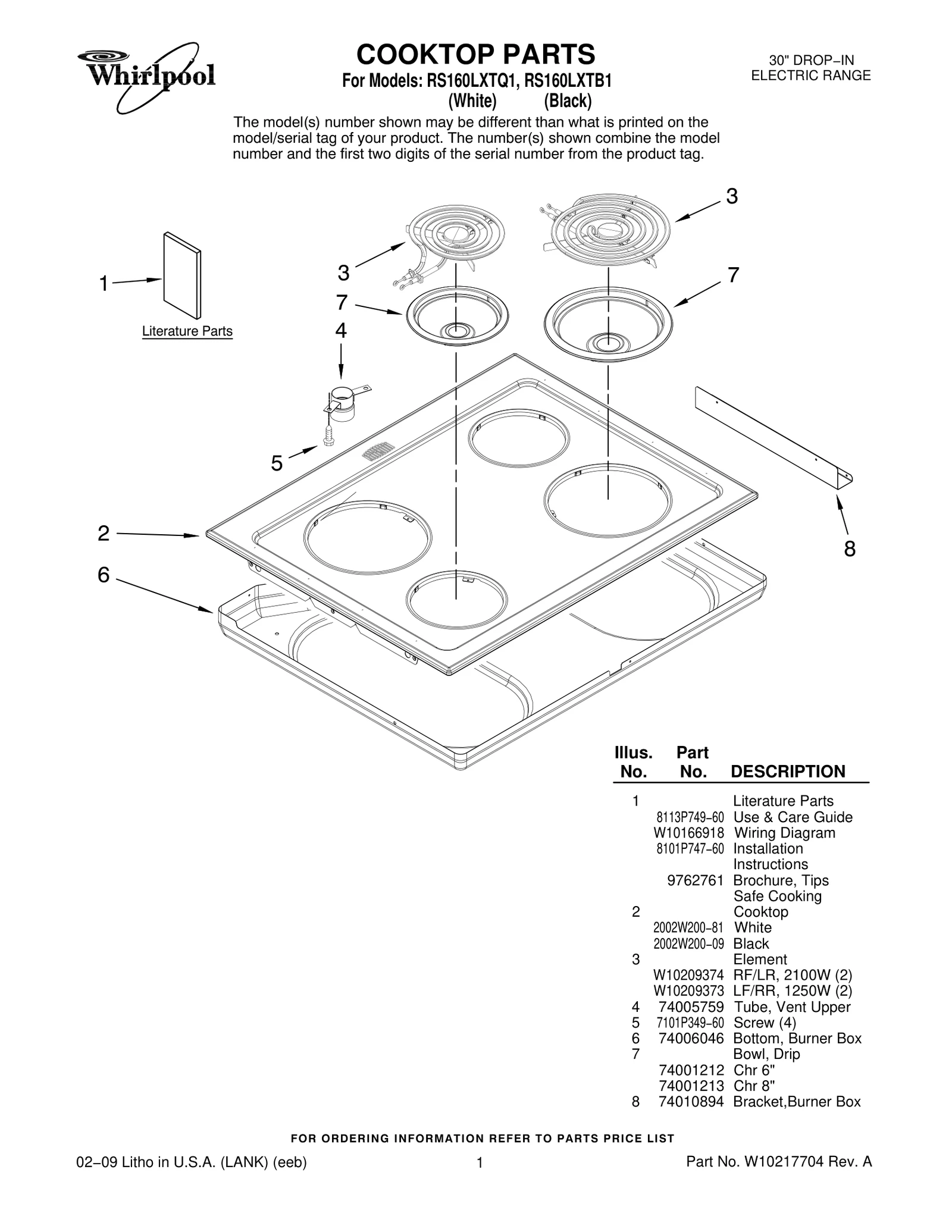

COOKTOP PARTS
Parts in COOKTOP PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10166918 8113P749−60 Use & Care Guide — Wiring Diagram | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 | – | N/S Cooktop 2002W200−81 White 2002W200−09 Black | - |
| 3 |  | WP9761346replaces W10209374 RF/LR, 2100W (2) | $40.71 Part Advantage |
| 3 |  | WPW10345407replaces W10209373 LF/RR, 1250W (2) | $64.82 Part Advantage |
| 4 | – | 74005759 Tube, Vent Upper | - |
| 5 | – | N/S 7101P349−60 Screw (4) | - |
| 6 | – | 74006046 Bottom, Burner Box | - |
| 7 |  | W10196406RWreplaces 74001212 Bowl, Drip — Chr 6" | $14.95 ApplianceParts Pro |
| 7 |  | WPW10196405replaces 74001213 Bowl, Drip — Chr 8" | $2.92 Part Advantage |
| 8 |  | 3801F881-51replaces 74010894 Bracket,Burner Box | - |
