Model
Roper RT12VKXKQ02
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRoper
RT12VKXKQ02Refrigerator
6 diagrams84 parts
Parts Sections (6)
Diagram

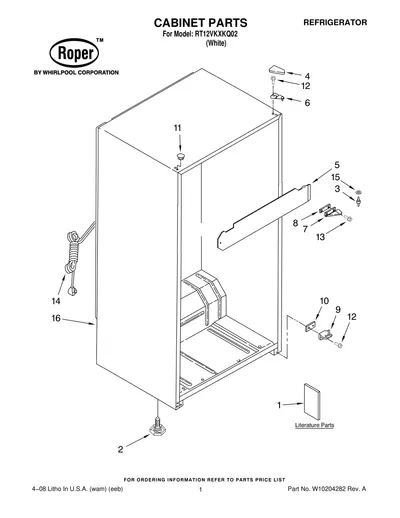

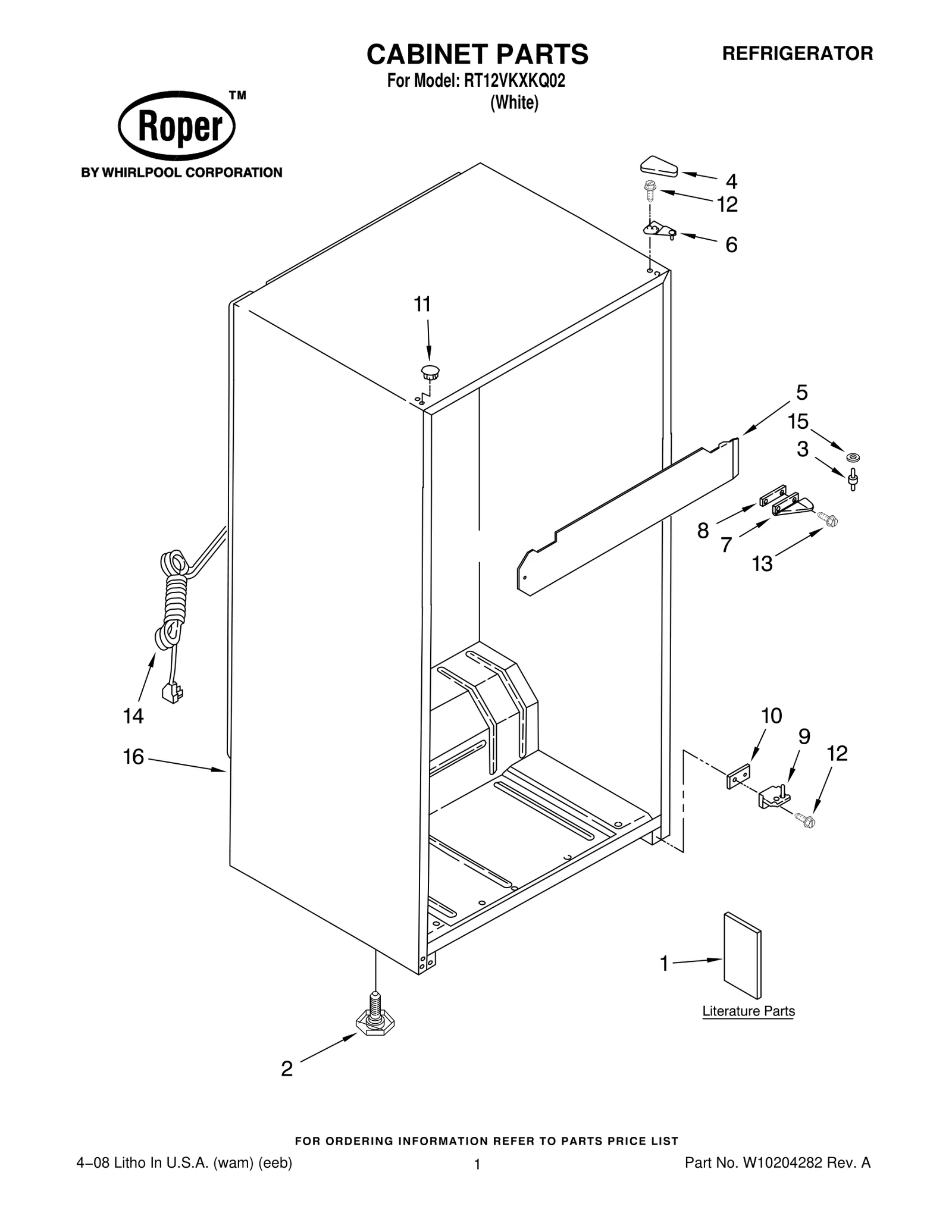

CABINET PARTS
Parts in CABINET PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 4390593 Owner’s Manual | - |
| 1 | – | 4390740 Energy Label | - |
| 2 |  | W11117769replaces 4390866 Leg, Leveler | $6.38 Part Advantage |
| 3 |  | Pin, Center Hinge | - |
| 4 | | Hinge Cover — White | - |
| 5 | – | 4390723 Center Rail | - |
| 6 |  | W10861536replaces 4390885 Hinge, Top — White | $137.45 ApplianceParts Pro |
| 7 | | Center Hinge — White | - |
| 8 | | Shim, Center Hinge | - |
| 9 | | Bottom Hinge — White | - |
| 10 | | Shim, Bottom Hinge | - |
| 11 | – | 4390836 Hole Plug — White | - |
| 12 |  | WP999367replaces 4390496 Screw | $3.60 Parts Dr |
| 13 | | WP999367replaces 4390492 Screw | $3.60 Parts Dr |
| 14 | | Cord, Service | - |
| 15 |  | W10851331replaces 4390520 Washer, Door Adjust | $2.85 RepairClinic |
| 16 | – | N/S Cabinet (Not a Serviceable Part) | - |
