Whirlpool RY160LXTS0
30" Slide−In Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RY160LXTS030" Slide−In Electric Range
6 diagrams129 parts
Parts Sections (6)

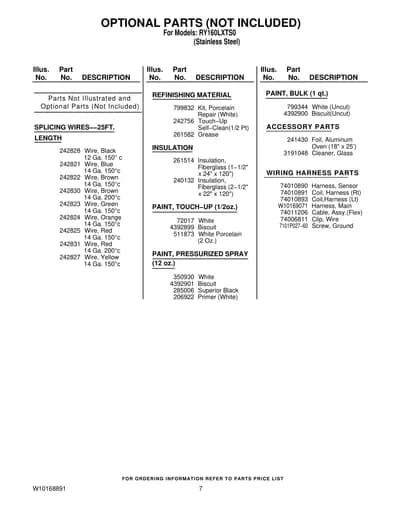

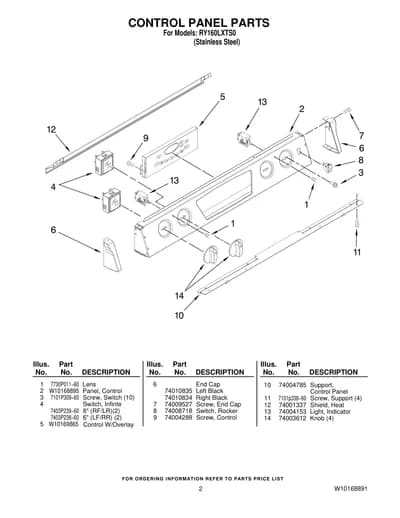

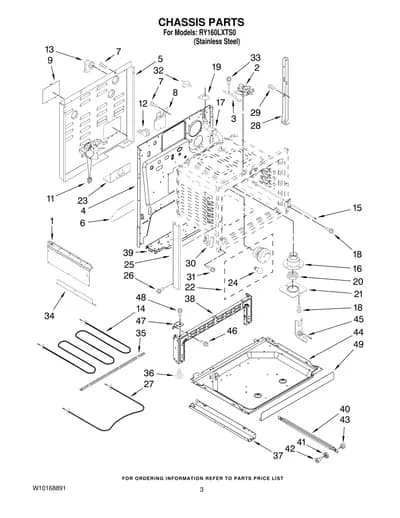

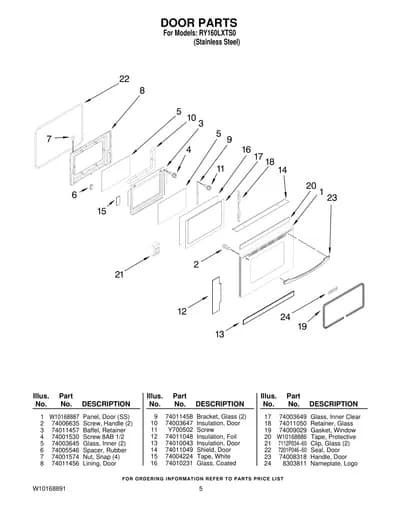

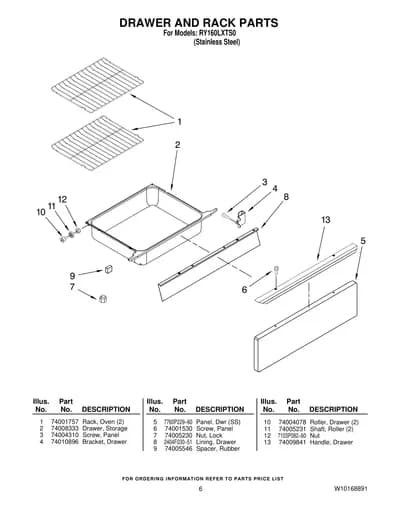

Diagram

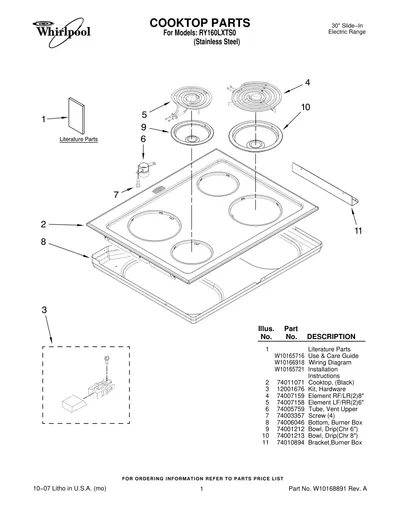

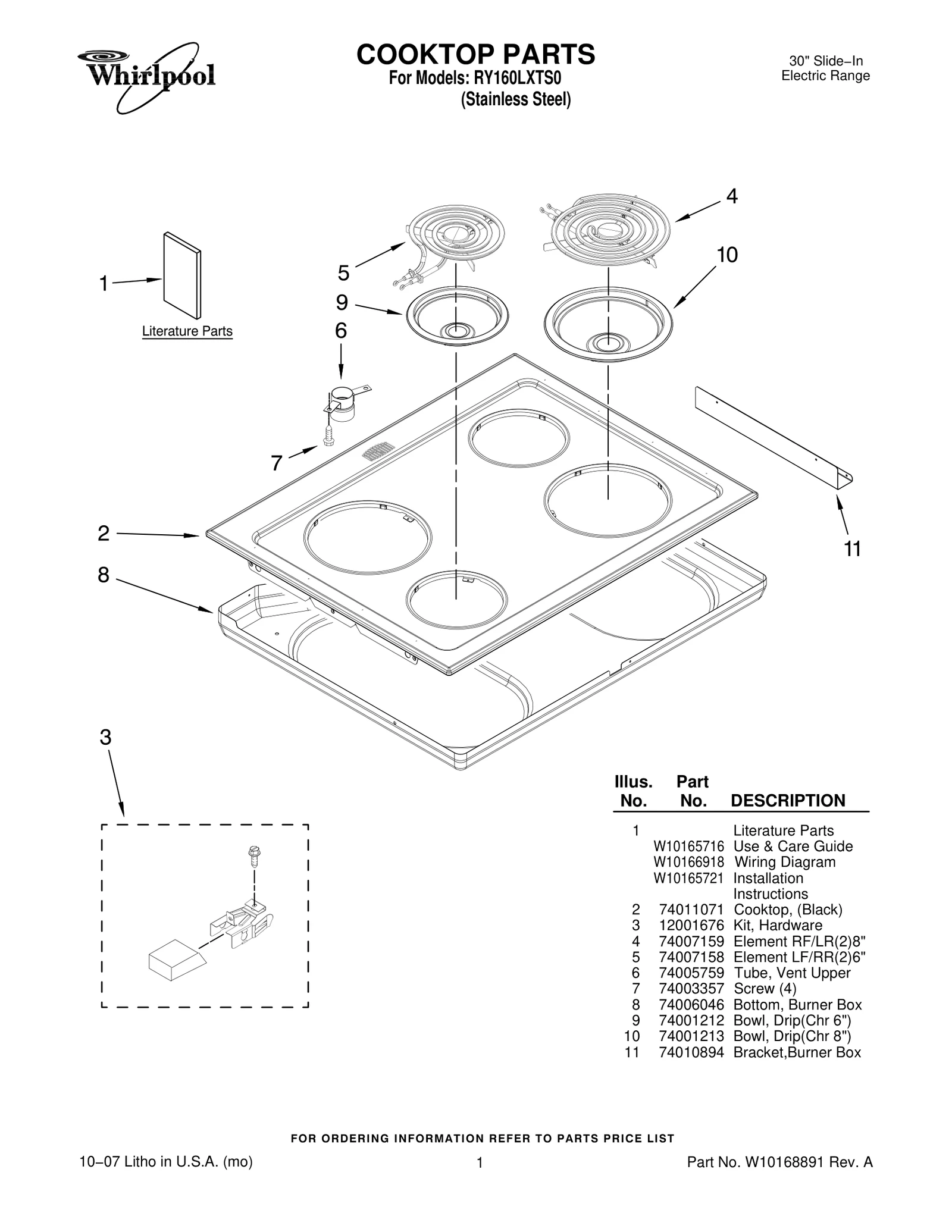

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10165716 Use & Care Guide | - |
| 1 | – | W10166918 Wiring Diagram | - |
| 1 | – | W10165721 Installation Instructions | - |
| 2 |  | 2002M200-09replaces 74011071 Cooktop, (Black) | - |
| 3 |  | Kit, Hardware | $5.04 Amazon |
| 4 |  | WP9761346replaces 74007159 Element RF/LR(2)8" | $40.71 Part Advantage |
| 5 |  | WPW10345407replaces 74007158 Element LF/RR(2)6" | $64.82 Part Advantage |
| 6 | – | 74005759 Tube, Vent Upper | - |
| 7 |  | WP7101P498replaces 74003357 Screw (4) | $7.30 |
| 8 | – | 74006046 Bottom, Burner Box | - |
| 9 |  | W10196406RWreplaces 74001212 Bowl, Drip(Chr 6") | $14.95 ApplianceParts Pro |
| 10 |  | WPW10196405replaces 74001213 Bowl, Drip(Chr 8") | $2.92 Part Advantage |
| 11 | | 3801F881-51replaces 74010894 Bracket,Burner Box | - |
