Model
Whirlpool SCS3617RQ03
36" Gas Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
SCS3617RQ0336" Gas Cooktop
2 diagrams63 parts
Parts Sections (2)
Diagram

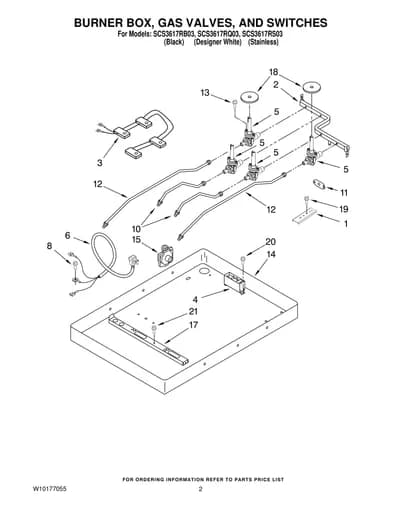

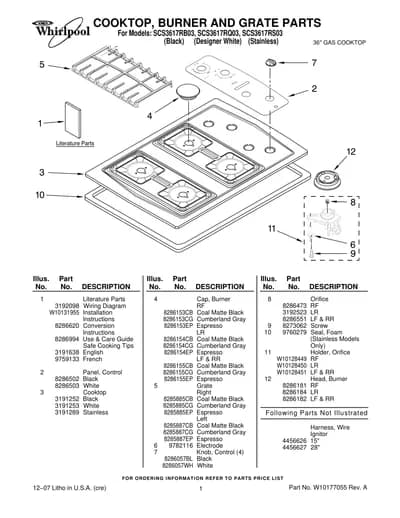

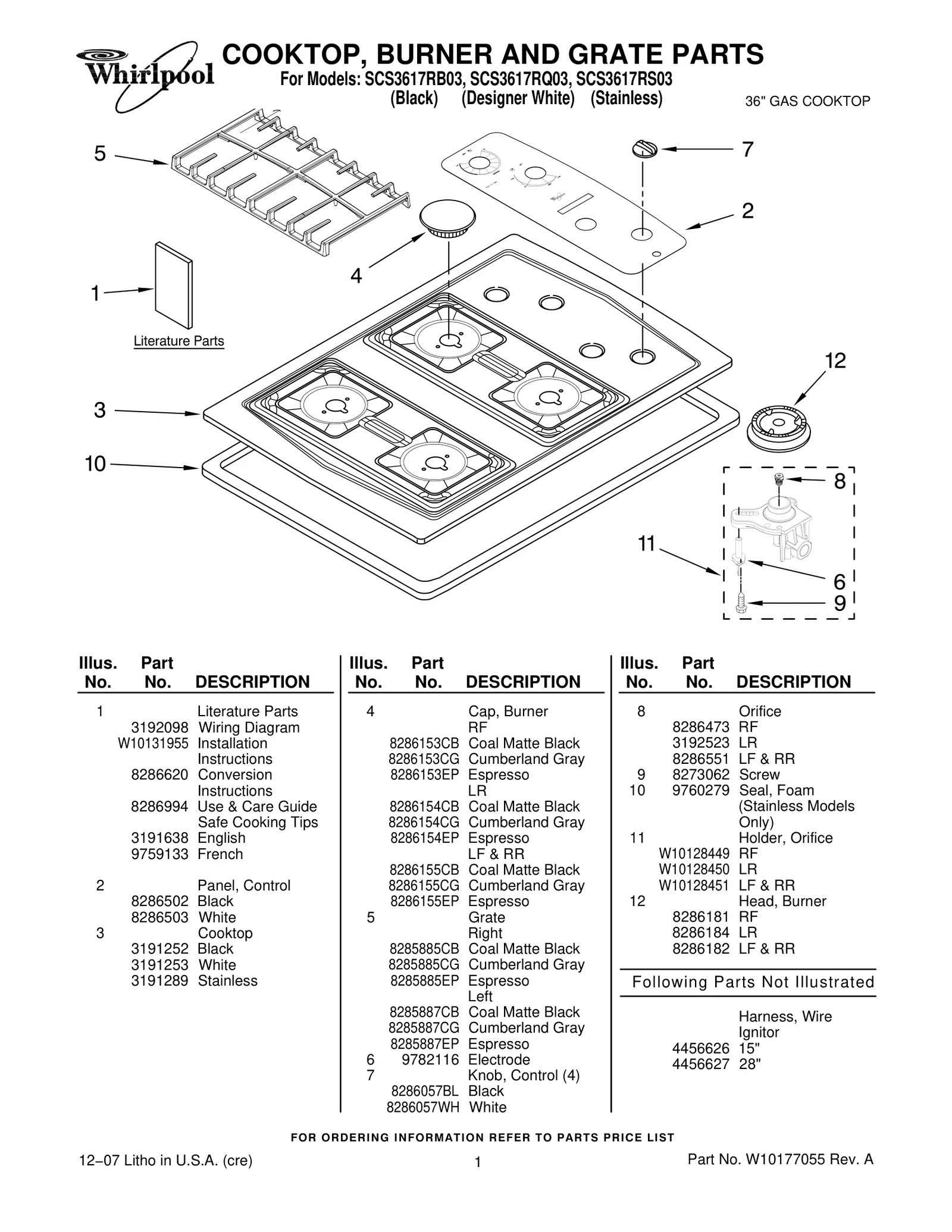

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3192098 Wiring Diagram | - |
| 1 | – | W10131955 Installation Instructions | - |
| 1 |  | 8286620NLA Conversion Instructions | Discontinued |
| 1 | – | 8286994 Use & Care Guide Safe Cooking Tips | - |
| 1 | | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 |  | WP8286502replaces 8286502 Panel, Control — Black | $78.77 PartSelect |
| 2 |  | Panel, Control — White | - |
| 3 | – | 3191252 Cooktop — Black | - |
| 3 | | 3191253NLA Cooktop — White | Discontinued |
| 3 | – | 3191289 Cooktop — Stainless | - |
| 4 |  | WP8286153CBreplaces 8286153CB Cap, Burner RF — Coal Matte Black | $54.24 PartSelect |
| 4 |  | WP8286153CGreplaces 8286153CG Cap, Burner RF — Cumberland Gray | - |
| 4 | | Cap, Burner RF — Espresso | - |
| 4 |  | WP8286154CBreplaces 8286154CB Cap, Burner RF — Coal Matte Black | $64.69 PartSelect |
| 4 |  | WP8286154CGreplaces 8286154CG Cap, Burner RF — Cumberland Gray | - |
| 4 | | Cap, Burner RF — Espresso | - |
| 4 |  | WP8286155CBreplaces 8286155CB Cap, Burner RF — Coal Matte Black | $77.75 PartSelect |
| 4 |  | WP8286155CGreplaces 8286155CG Cap, Burner RF — Cumberland Gray | $33.97 RepairClinic |
| 4 |  | Cap, Burner RF — Espresso | - |
| 5 | – | 8285885CB Grate Right — Coal Matte Black | - |
| 5 | – | 8285885CG Grate Right — Cumberland Gray | - |
| 5 | – | 8285885EP Grate Right — Espresso | - |
| 5 | – | 8285887CB Grate Right — Coal Matte Black | - |
| 5 | | Grate Right — Cumberland Gray | - |
| 5 | – | 8285887EP Grate Right — Espresso | - |
| 6 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 7 |  | WP8286057BLreplaces 8286057BL Knob, Control (4) — Black | $10.59 Part Advantage |
| 7 |  | WP8286057WHreplaces 8286057WH Knob, Control (4) — White | $5.01 Parts Dr |
| 8 |  | Orifice — RF | - |
| 8 |  | WP3192523replaces 3192523 Orifice — LR | $56.33 PartSelect |
| 8 |  | Orifice — LF & RR | - |
| 9 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 10 | | 9760279NLA Seal, Foam (Stainless Models Only) | Discontinued |
| 11 |  | WPW10128449replaces W10128449 Holder, Orifice — RF | - |
| 11 |  | WPW10128450replaces W10128450 Holder, Orifice — LR | $43.59 Part Advantage |
| 11 |  | WPW10128451replaces W10128451 Holder, Orifice — LF & RR | $33.36 Part Advantage |
| 12 |  | WPW10406243replaces 8286181 Head, Burner — RF | $12.98 Part Advantage |
| 12 |  | WPW10406283replaces 8286184 Head, Burner — LR | $37.32 Part Advantage |
| 12 |  | WPW10406797replaces 8286182 Head, Burner — LF & RR | $33.54 Part Advantage |
| 12 |  | Head, Burner — 15" | $29.10 Part Advantage |
| 12 |  | Head, Burner — 28" | $35.03 RepairClinic |
