Model
Whirlpool SF216LXSQ1
30" Gas Freestanding Standard Clean Range Electronic Ignition
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
SF216LXSQ130" Gas Freestanding Standard Clean Range Electronic Ignition
7 diagrams194 parts
Parts Sections (7)
Diagram

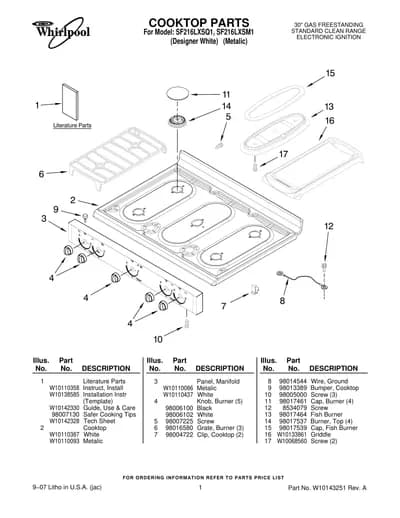

COOKTOP PARTS
Parts in COOKTOP PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10110358 Instruct, Install | - |
| 1 | – | W10138585 Installation Instr | - |
| 1 |  | Guide, Use & Care | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 1 | – | W10142328 Tech Sheet | - |
| 2 | | W10110387NLA Cooktop — White | Discontinued |
| 2 | | Cooktop — Metalic | - |
| 3 | – | W10110086 Panel, Manifold — Metalic | - |
| 3 | – | W10110437 Panel, Manifold — White | - |
| 4 |  | WP98006100replaces 98006100 Knob, Burner (5) — Black | $12.46 Part Advantage |
| 4 |  | WP98006102replaces 98006102 Knob, Burner (5) — White | $9.38 Part Advantage |
| 5 |  | WP98007225replaces 98007225 Screw | $3.74 Parts Dr |
| 6 | | 98016580NLA Grate, Burner (3) | Discontinued |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop (2) | $6.02 Parts Dr |
| 8 |  | 3184020replaces 98014544 Wire, Ground | $50.57 ApplianceParts Pro |
| 9 |  | W10831827replaces 98013389 Bumper, Cooktop | $10.33 Parts Dr |
| 10 |  | W11233072replaces 98005000 Screw (3) | $8.78 Part Advantage |
| 11 |  | WP98017461replaces 98017461 Cap, Burner (4) | $30.42 Part Advantage |
| 12 |  | W10850756replaces 8534079 Screw | $5.00 RepairClinic |
| 13 | | 98017464NLA Fish Burner | Discontinued |
| 14 |  | WP98017537replaces 98017537 Burner, Top (4) | $33.99 Parts Dr |
| 15 |  | Cap, Fish Burner | - |
| 16 |  | WPW10133861replaces W10133861 Griddle | - |
| 17 | – | W10068560 Screw (2) | - |
