Model
Whirlpool SF265LXTB1
30" Gas Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
SF265LXTB130" Gas Freestanding
7 diagrams223 parts
Parts Sections (7)
Diagram

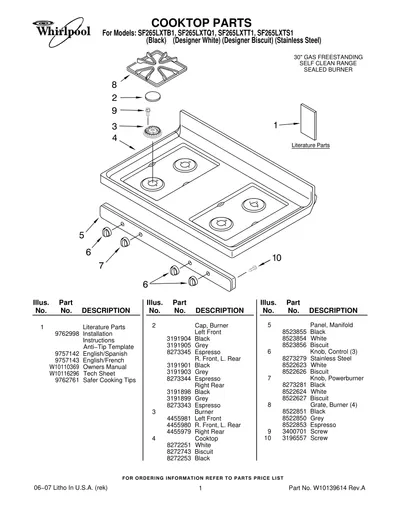

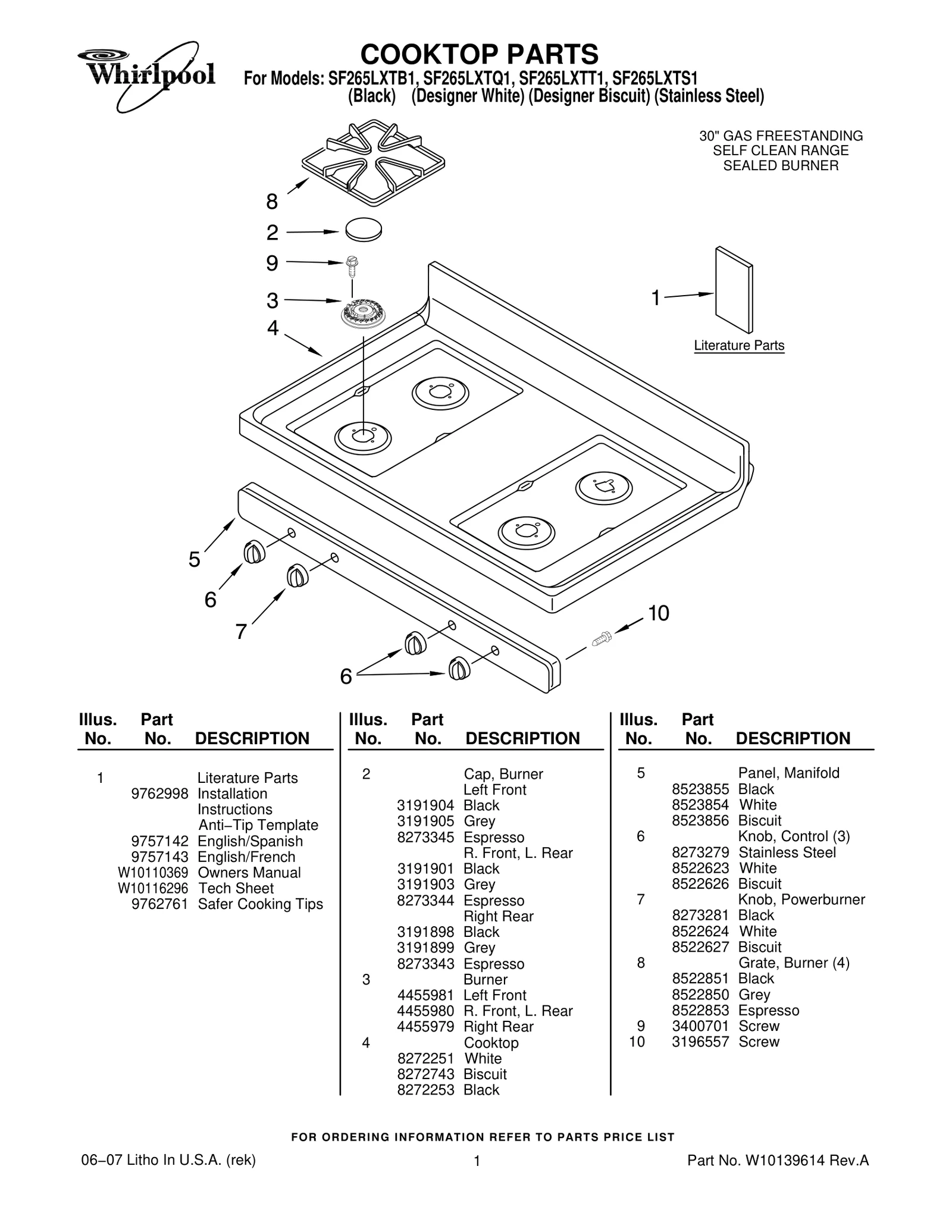

COOKTOP PARTS
Parts in COOKTOP PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762998 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10110369 Owners Manual | - |
| 1 | – | W10116296 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WP3191904replaces 3191904 Cap, Burner Left Front — Black | $118.52 PartSelect |
| 2 |  | WP3191905replaces 3191905 Cap, Burner Left Front — Grey | $63.65 ApplianceParts Pro |
| 2 |  | WP8273345replaces 8273345 Cap, Burner Left Front — Espresso | - |
| 2 |  | WP3191901replaces 3191901 Cap, Burner Left Front — Black | $77.76 ApplianceParts Pro |
| 2 |  | WP3191903replaces 3191903 Cap, Burner Left Front — Grey | $98.57 Part Advantage |
| 2 |  | WP8273344replaces 8273344 Cap, Burner Left Front — Espresso | - |
| 2 |  | WP3191898replaces 3191898 Cap, Burner Left Front — Black | $61.55 PartSelect |
| 2 |  | 3191899NLA Cap, Burner Left Front — Grey | Discontinued |
| 2 |  | WP8273343replaces 8273343 Cap, Burner Left Front — Espresso | $35.91 Part Advantage |
| 3 |  | WP4455981replaces 4455981 Burner — Left Front | $75.95 ApplianceParts Pro |
| 3 |  | WP4455980replaces 4455980 R. Front, L. Rear | $38.12 Part Advantage |
| 3 |  | W10888931replaces 4455979 Burner — Right Rear | - |
| 4 |  | W11213959replaces 8272251 Cooktop — White | - |
| 4 |  | 8195546replaces 8272743 Cooktop — Biscuit | - |
| 4 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 5 |  | Panel, Manifold — Black | - |
| 5 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 5 | | Panel, Manifold — Biscuit | - |
| 6 |  | 8273279NLA Knob, Control (3) — Stainless Steel | Discontinued |
| 6 |  | W11242931replaces 8522623 Knob, Control (3) — White | - |
| 6 | | 8522626NLA Knob, Control (3) — Biscuit | Discontinued |
| 7 | | 8273281NLA Knob, Powerburner — Black | Discontinued |
| 7 | | W11242931replaces 8522624 Knob, Powerburner — White | - |
| 7 | | Knob, Powerburner — Biscuit | Discontinued |
| 8 |  | WPW10447925replaces 8522851 Grate, Burner (4) — Black | $197.17 Parts Dr |
| 8 | | WPW10447925replaces 8522850 Grate, Burner (4) — Grey | $197.17 Parts Dr |
| 8 | | 8522853NLA Grate, Burner (4) — Espresso | Discontinued |
| 9 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 10 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
