Model
Whirlpool SF272LXTD2
30" Gas Freestanding Self Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
SF272LXTD230" Gas Freestanding Self Clean Range
7 diagrams171 parts

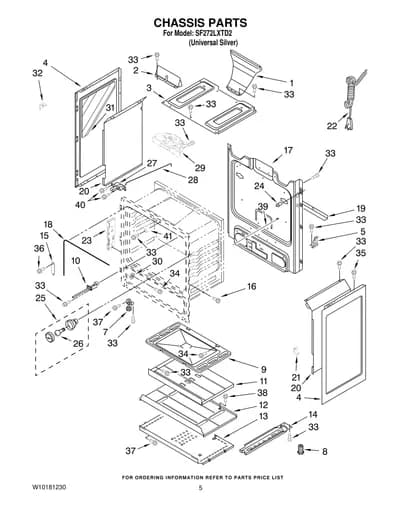

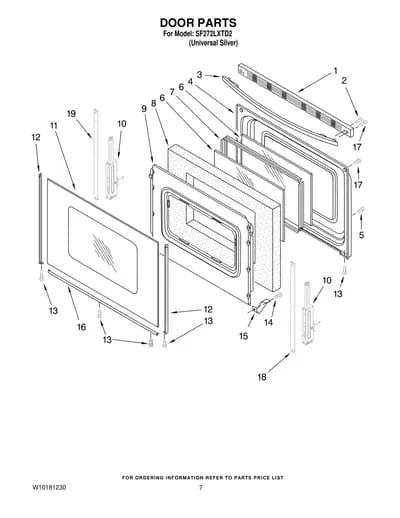

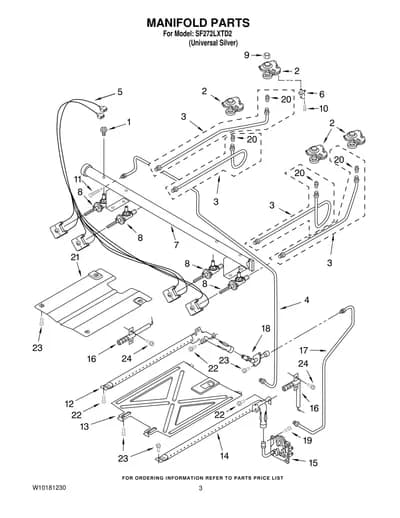

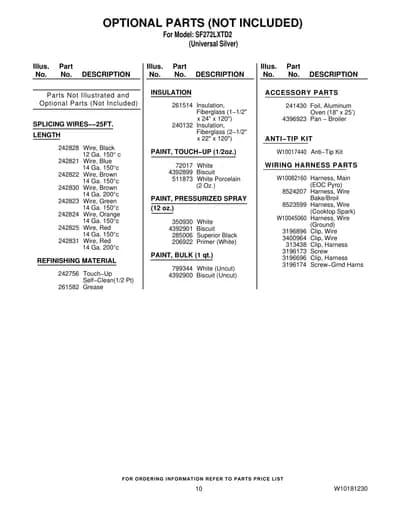

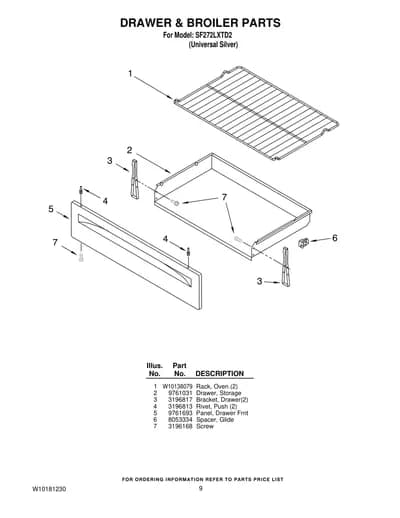

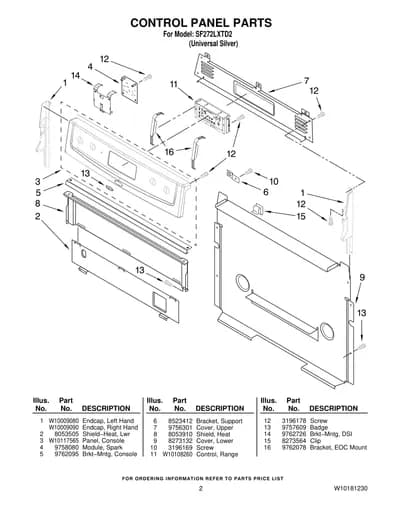

Parts Sections (7)
Diagram

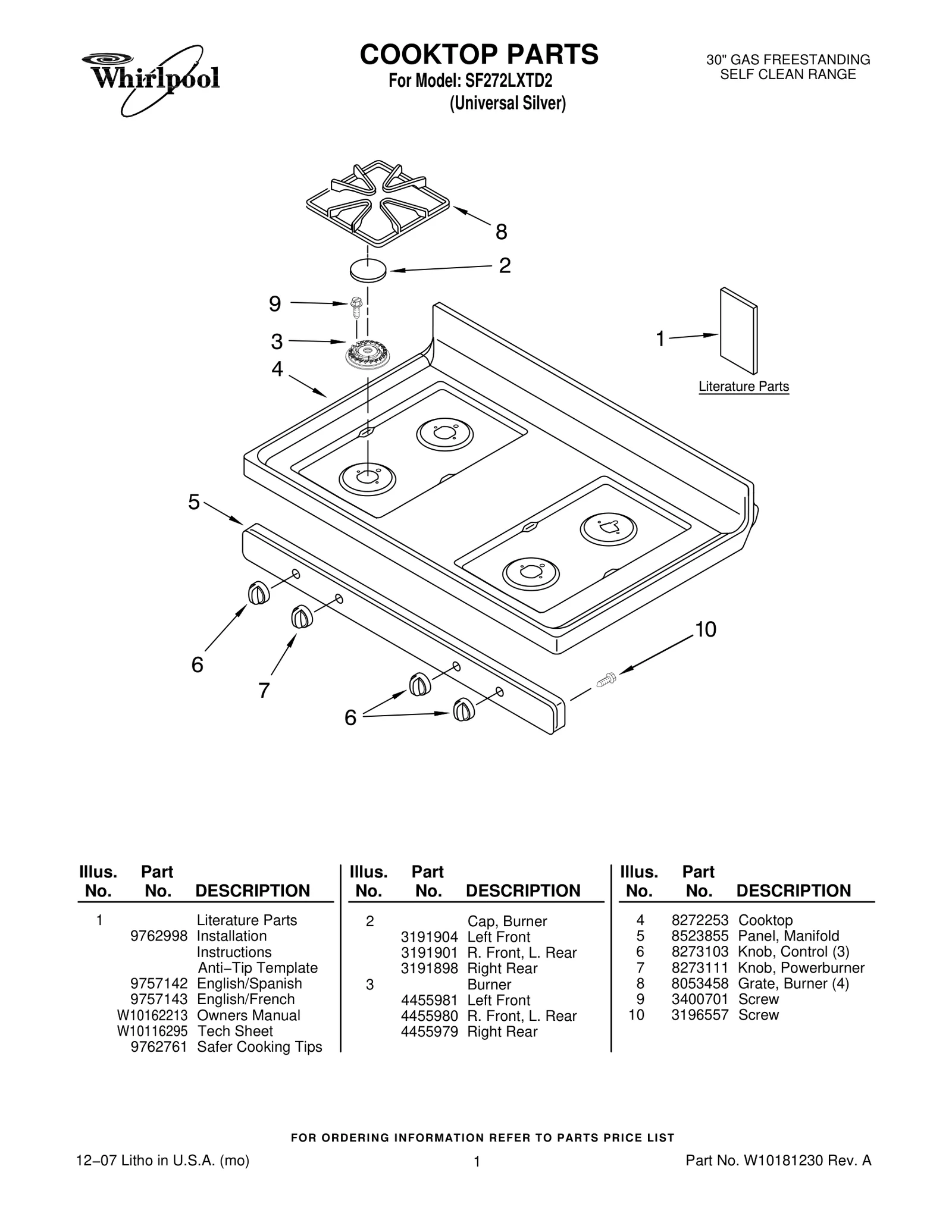

COOKTOP PARTS
Parts in COOKTOP PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762998 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10162213 Owners Manual | - |
| 1 | – | W10116295 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WP3191904replaces 3191904 Cap, Burner — Left Front | $118.52 PartSelect |
| 2 |  | WP3191901replaces 3191901 R. Front, L. Rear | $77.76 ApplianceParts Pro |
| 2 |  | WP3191898replaces 3191898 Cap, Burner — Right Rear | $61.55 PartSelect |
| 3 |  | WP4455981replaces 4455981 Burner — Left Front | $75.95 ApplianceParts Pro |
| 3 |  | WP4455980replaces 4455980 R. Front, L. Rear | $38.12 Part Advantage |
| 3 |  | WP4455979replaces 4455979 Burner — Right Rear | $37.41 Parts Dr |
| 4 |  | W11213958replaces 8272253 Cooktop | - |
| 5 |  | Panel, Manifold | - |
| 6 |  | WP8273103replaces 8273103 Knob, Control (3) | $8.66 Part Advantage |
| 7 | | WP8273103replaces 8273111 Knob, Powerburner | $8.66 Part Advantage |
| 8 |  | WPW10268483replaces 8053458 Grate, Burner (4) | $82.31 Part Advantage |
| 9 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 10 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
