Model
Whirlpool SF367LXSQ2
30" Gas Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
SF367LXSQ230" Gas Freestanding
7 diagrams217 parts
Parts Sections (7)
Diagram

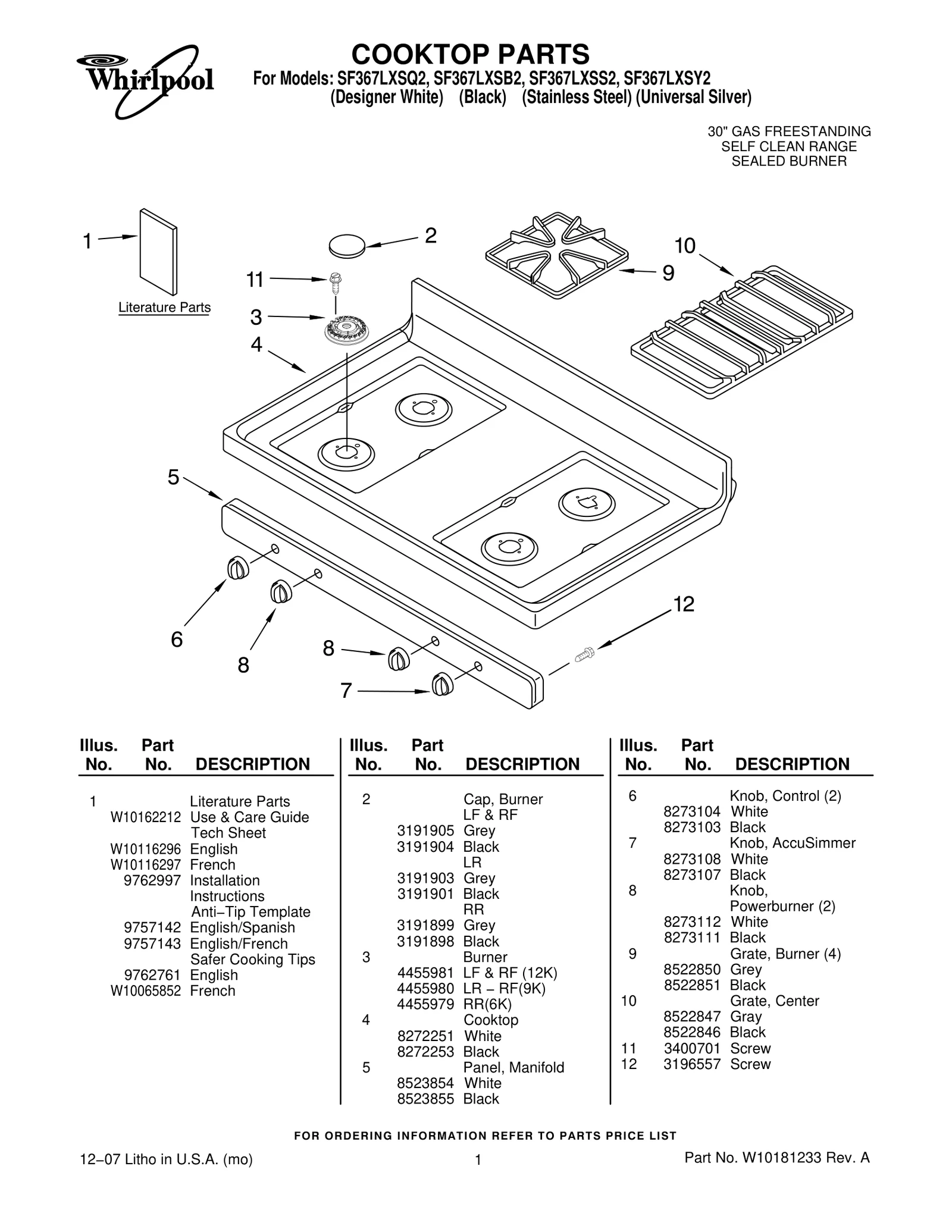

COOKTOP PARTS
Parts in COOKTOP PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10162212 Use & Care Guide Tech Sheet | - |
| 1 | – | W10116296 English | - |
| 1 | – | W10116297 French | - |
| 1 | – | 9762997 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WP3191905replaces 3191905 Cap, Burner LF & RF — Grey | $63.65 ApplianceParts Pro |
| 2 |  | WP3191904replaces 3191904 Cap, Burner LF & RF — Black | $118.52 PartSelect |
| 2 |  | WP3191903replaces 3191903 Cap, Burner LF & RF — Grey | $98.57 Part Advantage |
| 2 |  | WP3191901replaces 3191901 Cap, Burner LF & RF — Black | $77.76 ApplianceParts Pro |
| 2 |  | 3191899NLA Cap, Burner LF & RF — Grey | Discontinued |
| 2 |  | WP3191898replaces 3191898 Cap, Burner LF & RF — Black | $61.55 PartSelect |
| 3 |  | WP4455981replaces 4455981 LF & RF (12K) | $75.95 ApplianceParts Pro |
| 3 |  | WP4455980replaces 4455980 LR − RF(9K) | $38.12 Part Advantage |
| 3 |  | W10888931replaces 4455979 RR(6K) | - |
| 4 |  | W11213959replaces 8272251 Cooktop — White | - |
| 4 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 5 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 5 |  | Panel, Manifold — Black | - |
| 6 |  | WP8273104replaces 8273104 Knob, Control (2) — White | $8.39 Part Advantage |
| 6 |  | WP8273103replaces 8273103 Knob, Control (2) — Black | $8.66 Part Advantage |
| 7 | | WP8273104replaces 8273108 Knob, AccuSimmer — White | $8.39 Part Advantage |
| 7 | | WP8273103replaces 8273107 Knob, AccuSimmer — Black | $8.66 Part Advantage |
| 8 | | WP8273104replaces 8273112 Knob, Powerburner (2) — White | $8.39 Part Advantage |
| 8 | | WP8273103replaces 8273111 Knob, Powerburner (2) — Black | $8.66 Part Advantage |
| 9 |  | WPW10447925replaces 8522850 Grate, Burner (4) — Grey | $197.17 Parts Dr |
| 9 | | WPW10447925replaces 8522851 Grate, Burner (4) — Black | $197.17 Parts Dr |
| 10 | | Grate, Center — Gray | - |
| 10 | | 8522846NLA Grate, Center — Black | Discontinued |
| 11 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 12 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
