Model
Estate TES325VQ0
30" Electric Freestanding Self Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TES325VQ030" Electric Freestanding Self Clean Range
6 diagrams142 parts
Parts Sections (6)
Diagram

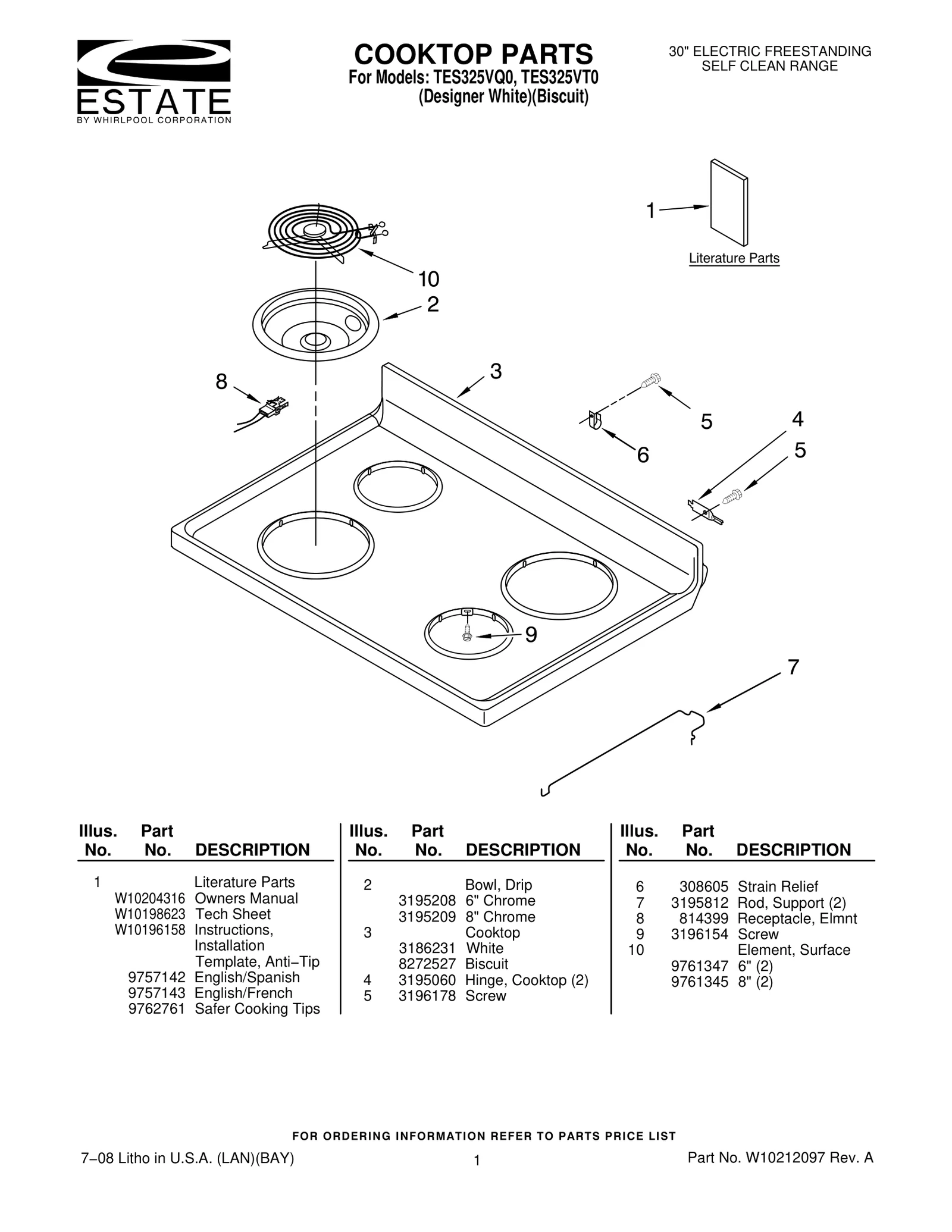

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10204316 Owners Manual | - |
| 1 | – | W10198623 Tech Sheet | - |
| 1 | – | W10196158 Instructions, Installation Template, Anti−Tip | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | W10196406RWreplaces 3195208 Bowl, Drip — 6" Chrome | $14.95 ApplianceParts Pro |
| 2 |  | W10196405RWreplaces 3195209 Bowl, Drip — 8" Chrome | $13.55 ApplianceParts Pro |
| 3 |  | 8195532replaces 3186231 Cooktop — White | $228.56 PartSelect |
| 3 | – | 8272527 Cooktop — Biscuit | - |
| 4 |  | WP3195060replaces 3195060 Hinge, Cooktop (2) | $3.87 Part Advantage |
| 5 |  | W11233072replaces 3196178 Screw | $8.78 Part Advantage |
| 6 |  | Strain Relief | - |
| 7 |  | WP3195812replaces 3195812 Rod, Support (2) | $2.30 Part Advantage |
| 8 |  | Receptacle, Elmnt | $15.05 Part Advantage |
| 9 |  | WP3196154replaces 3196154 Screw | $3.74 Parts Dr |
| 10 |  | WP660532replaces 9761347 6" (2) | $13.01 Part Advantage |
| 10 |  | WPW10259865replaces 9761345 8" (2) | $82.84 Part Advantage |
