Model
Estate TES355VB0
30" Electric Ceran Freestanding Range Self Clean Convection Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TES355VB030" Electric Ceran Freestanding Range Self Clean Convection Oven
6 diagrams136 parts
Parts Sections (6)
Diagram

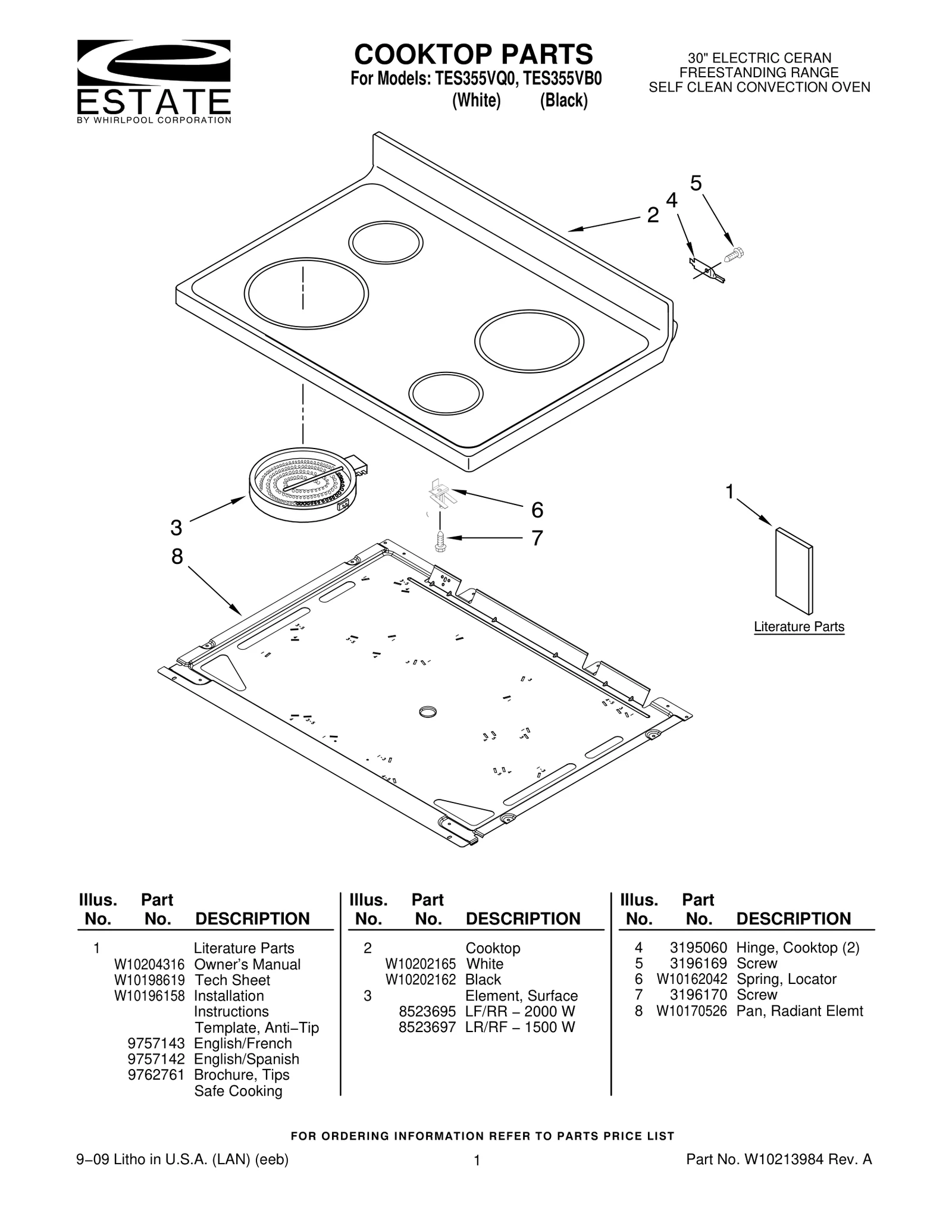

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10204316 Owner’s Manual | - |
| 1 | – | W10198619 Tech Sheet | - |
| 1 | – | W10196158 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 |  | W10248202replaces W10202165 Cooktop — White | - |
| 2 |  | W10248201replaces W10202162 Cooktop — Black | - |
| 3 |  | WPW10242957replaces 8523695 Element, Surface — LF/RR − 2000 W | $137.35 Part Advantage |
| 3 |  | W10823699replaces 8523697 Element, Surface — LR/RF − 1500 W | $92.39 Parts Dr |
| 4 |  | WP3195060replaces 3195060 Hinge, Cooktop (2) | $3.87 Part Advantage |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 8 |  | Pan, Radiant Elemt | - |
