Model
Estate TGP200VDQ0
20" Gas Freestanding Standard Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TGP200VDQ020" Gas Freestanding Standard Clean Range
7 diagrams127 parts
Parts Sections (7)
Diagram

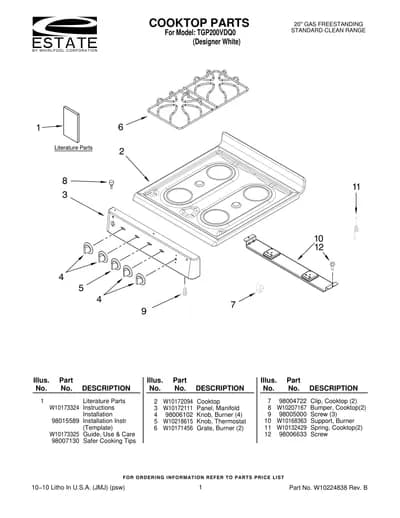

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10173324 Instructions Installation | - |
| 1 | – | 98015589 Installation Instr | - |
| 1 | – | W10173325 Guide, Use & Care | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 2 |  | Cooktop | - |
| 3 | | Panel, Manifold | - |

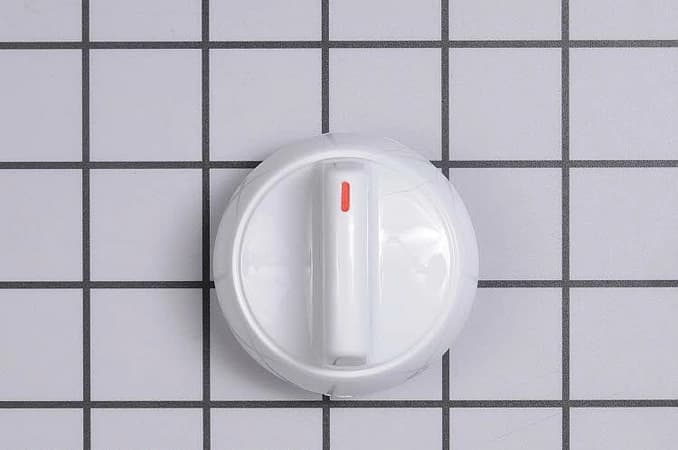

| 4 |  | WP98006102replaces 98006102 Knob, Burner (4) | $9.38 Part Advantage |
| 5 |  | Knob, Thermostat | - |
| 6 |  | WPW10180089replaces W10171456 Grate, Burner (2) | $61.30 RepairClinic |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop (2) | $6.02 Parts Dr |
| 8 | | Bumper, Cooktop(2) | - |
| 9 |  | W11233072replaces 98005000 Screw (3) | $8.78 Part Advantage |
| 10 | | Support, Burner | - |
| 11 | – | W10132429 Spring, Cooktop(2) | - |
| 12 |  | W10837731replaces 98006633 Screw | $2.30 Part Advantage |
