Model
Estate TGP300TQ1
30" Gas Freestanding Standard Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TGP300TQ130" Gas Freestanding Standard Clean Range
7 diagrams123 parts
Parts Sections (7)
Diagram

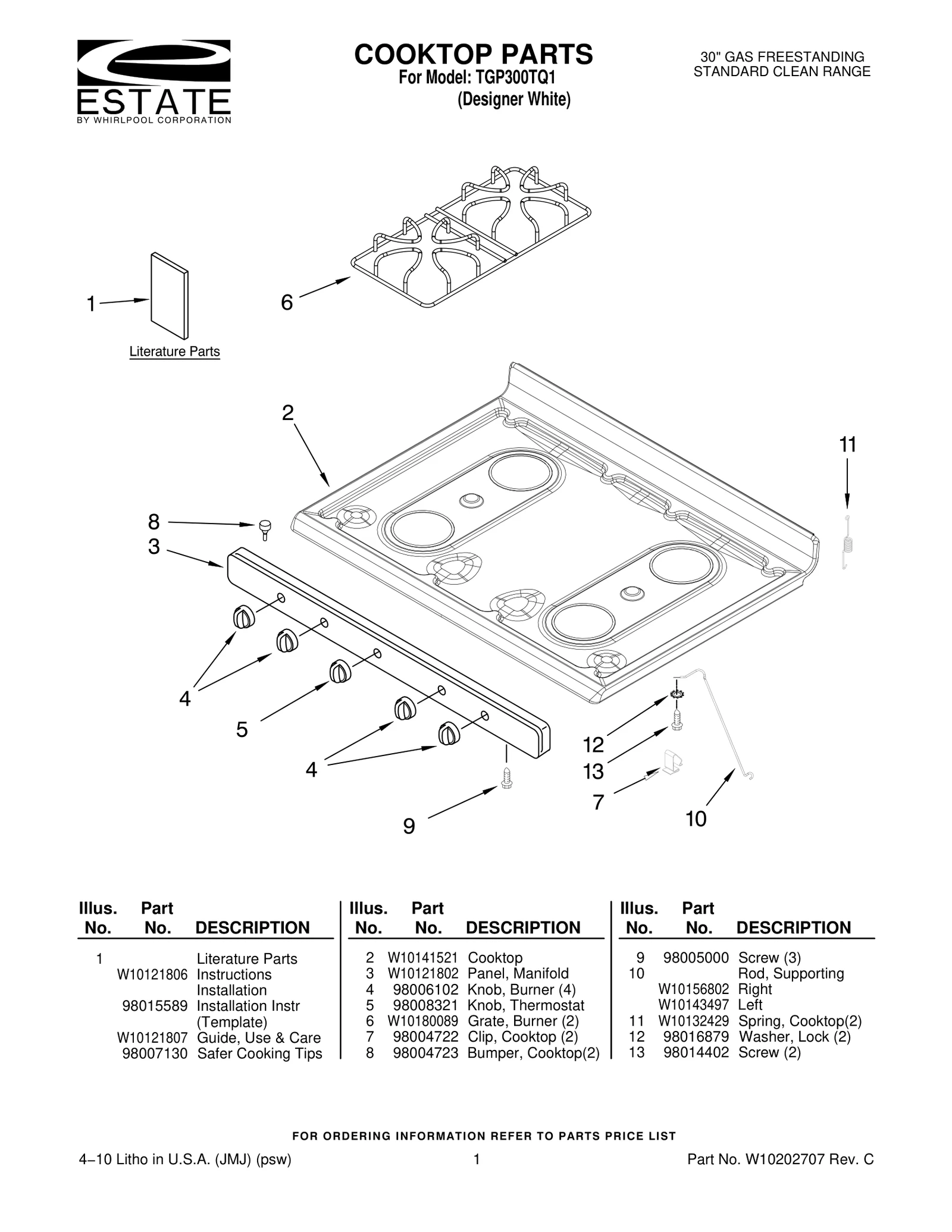

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10121806 Instructions Installation | - |
| 1 | – | 98015589 Installation Instr | - |
| 1 | – | W10121807 Guide, Use & Care | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 2 |  | WPW10141521replaces W10141521 Cooktop | - |
| 3 | – | W10121802 Panel, Manifold | - |
| 4 |  | WP98006102replaces 98006102 Knob, Burner (4) | $9.38 Part Advantage |
| 5 |  | WP98008321replaces 98008321 Knob, Thermostat | $12.01 Parts Dr |
| 6 |  | WPW10180089replaces W10180089 Grate, Burner (2) | $61.30 RepairClinic |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop (2) | $6.02 Parts Dr |

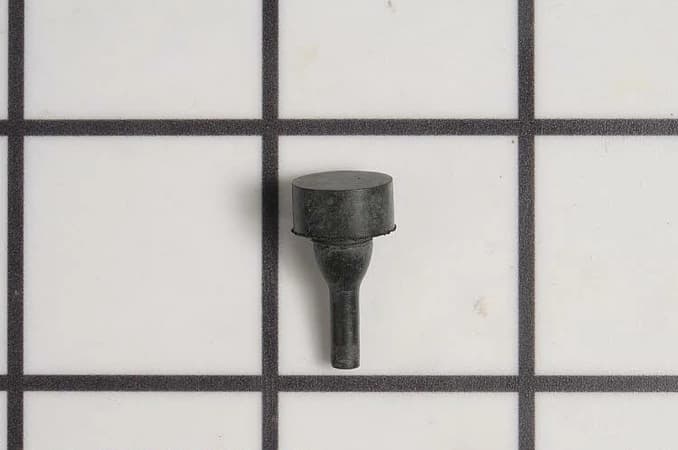

| 8 |  | Bumper, Cooktop(2) | - |
| 9 |  | W11233072replaces 98005000 Screw (3) | $8.78 Part Advantage |
| 10 | – | W10156802 Rod, Supporting — Right | - |
| 10 | – | W10143497 Rod, Supporting — Left | - |
| 11 | – | W10132429 Spring, Cooktop(2) | - |
| 12 | – | 98016879 Washer, Lock (2) | - |
| 13 |  | WP486754replaces 98014402 Screw (2) | $5.95 ApplianceParts Pro |
