Model
Estate TGS325VB1
30" Gas Freestanding Self Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TGS325VB130" Gas Freestanding Self Clean Range
7 diagrams183 parts
Parts Sections (7)
Diagram

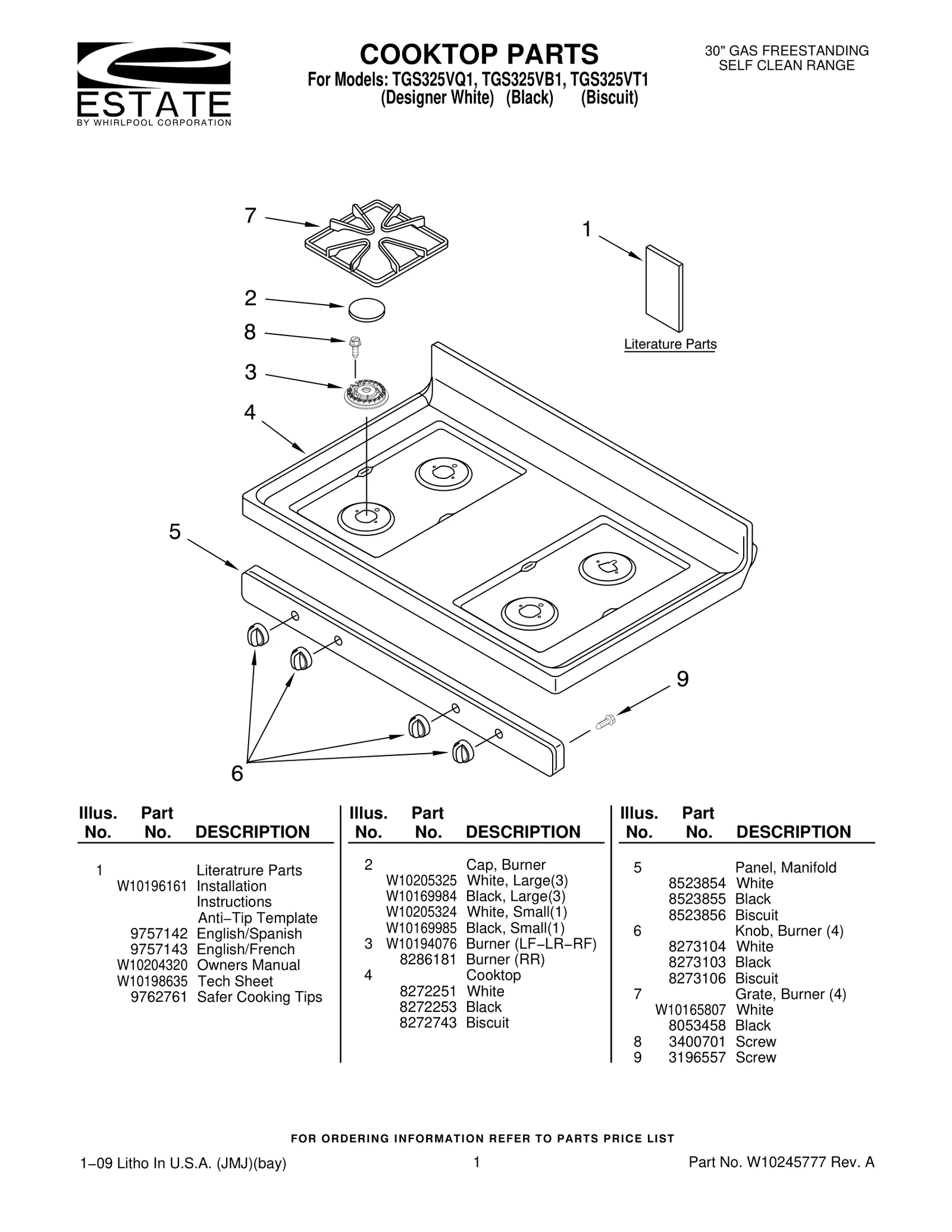

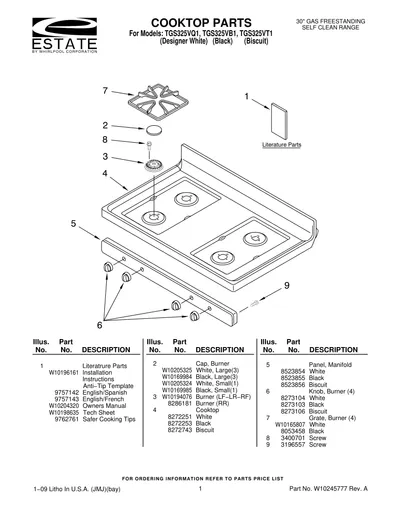

COOKTOP PARTS
Parts in COOKTOP PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10204320 Owners Manual | - |
| 1 | – | W10198635 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | White, Large(3) | - |
| 2 |  | WPW10169984replaces W10169984 Black, Large(3) | $50.56 PartSelect |
| 2 | | W10205324NLA White, Small(1) | Discontinued |
| 2 |  | WPW10169985replaces W10169985 Black, Small(1) | $55.29 PartSelect |
| 3 |  | WPW10406283replaces W10194076 Burner (LF−LR−RF) | $37.32 Part Advantage |
| 3 |  | WPW10406243replaces 8286181 Burner (RR) | $12.98 Part Advantage |
| 4 |  | W11213959replaces 8272251 Cooktop — White | - |
| 4 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 4 |  | 8195546replaces 8272743 Cooktop — Biscuit | - |
| 5 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 5 |  | Panel, Manifold — Black | - |
| 5 | | Panel, Manifold — Biscuit | - |
| 6 |  | WP8273104replaces 8273104 Knob, Burner (4) — White | $8.39 Part Advantage |
| 6 |  | WP8273103replaces 8273103 Knob, Burner (4) — Black | $8.66 Part Advantage |
| 6 |  | WP8273106replaces 8273106 Knob, Burner (4) — Biscuit | $12.01 Parts Dr |

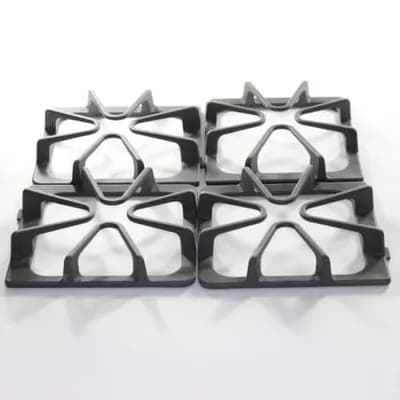

| 7 |  | W10837340replaces W10165807 Grate, Burner (4) — White | $193.57 ApplianceParts Pro |
| 7 |  | WPW10268483replaces 8053458 Grate, Burner (4) — Black | $82.31 Part Advantage |
| 8 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 9 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
