Model
Estate TGS326TD0
30" Gas Freestanding Self Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TGS326TD030" Gas Freestanding Self Clean Range
7 diagrams168 parts
Parts Sections (7)
Diagram

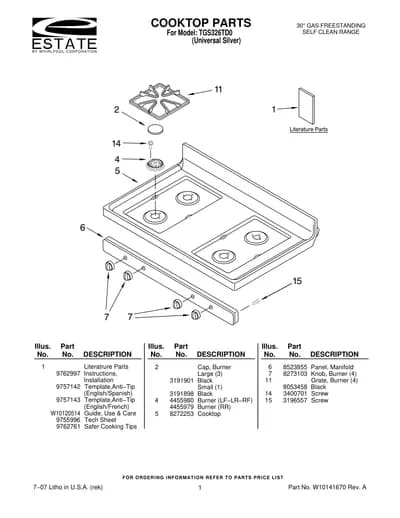

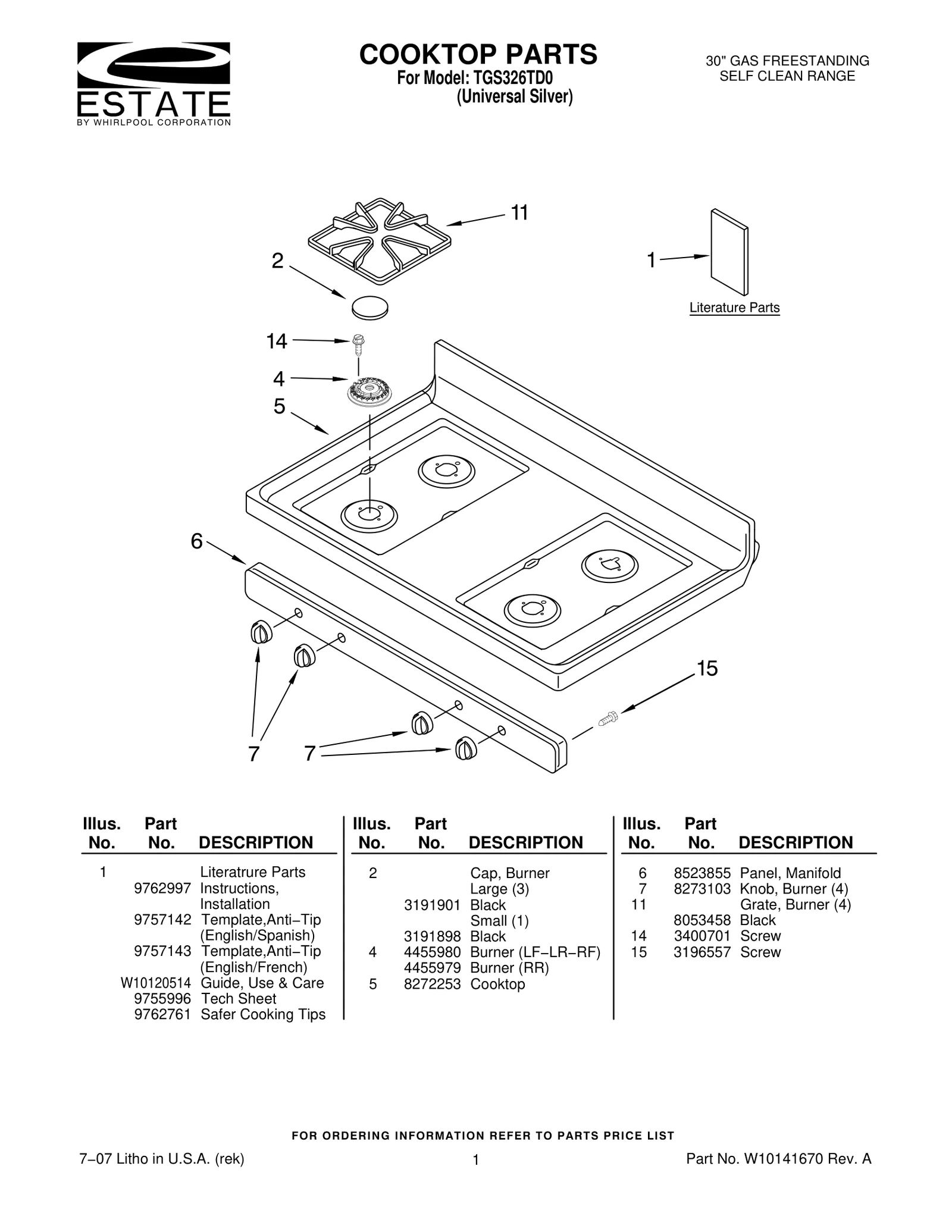

COOKTOP PARTS
Parts in COOKTOP PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762997 Instructions, Installation | - |
| 1 | – | 9757142 Template,Anti−Tip | - |
| 1 | – | 9757143 Template,Anti−Tip | - |
| 1 | – | W10120514 Guide, Use & Care | - |
| 1 | – | 9755996 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WP3191901replaces 3191901 Cap, Burner Large (3) — Black | $77.76 ApplianceParts Pro |
| 2 |  | WP3191898replaces 3191898 Cap, Burner Large (3) — Black | $61.55 PartSelect |
| 4 |  | WP4455980replaces 4455980 Burner (LF−LR−RF) | $38.12 Part Advantage |
| 4 |  | W10888931replaces 4455979 Burner (RR) | - |
| 5 |  | W11213958replaces 8272253 Cooktop | - |
| 6 |  | Panel, Manifold | - |
| 7 |  | WP8273103replaces 8273103 Knob, Burner (4) | $8.66 Part Advantage |
| 11 |  | WPW10268483replaces 8053458 Grate, Burner (4) — Black | $82.31 Part Advantage |
| 14 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 15 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
