Model
Estate TMH16XST3
Microwave Oven 1.6 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TMH16XST3Microwave Oven 1.6 Cu. Ft.
6 diagrams92 parts
Parts Sections (6)
Diagram

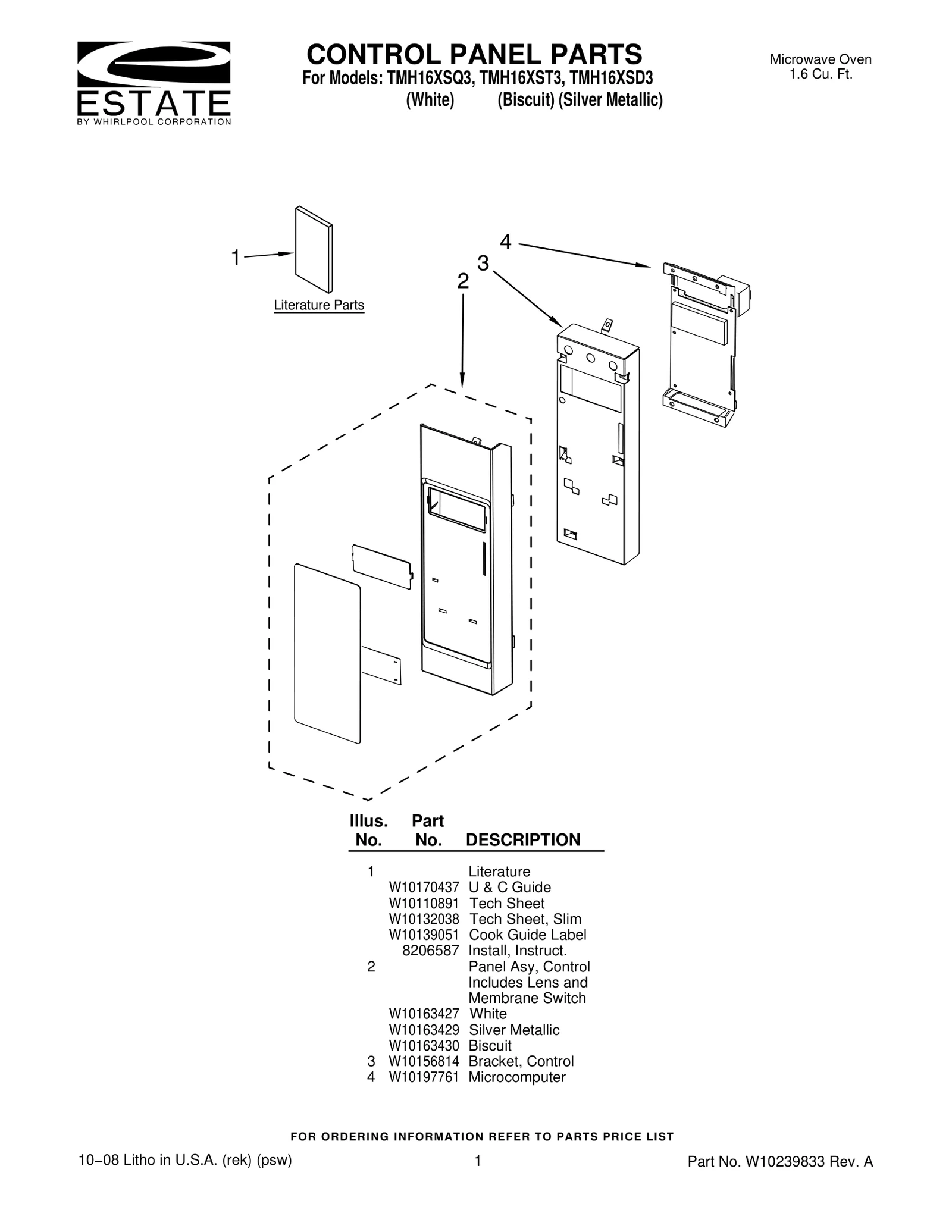

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10170437 U & C Guide | - |
| 1 | – | W10110891 Tech Sheet | - |
| 1 | – | W10132038 Tech Sheet, Slim | - |
| 1 | – | W10139051 Cook Guide Label | - |
| 1 | – | 8206587 Install, Instruct. | - |
| 2 |  | Panel Asy, Control Includes Lens and Membrane Switch — White | - |
| 2 | | Panel Asy, Control Includes Lens and Membrane Switch — Silver Metallic | - |
| 2 | – | W10163430 Panel Asy, Control Includes Lens and Membrane Switch — Biscuit | - |
| 3 | | W10156814NLA Bracket, Control | Discontinued |
| 4 | | W10197761NLA Microcomputer | Discontinued |
