Model
Estate TT16DKXSQ02
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
TT16DKXSQ02Refrigerator
6 diagrams164 parts

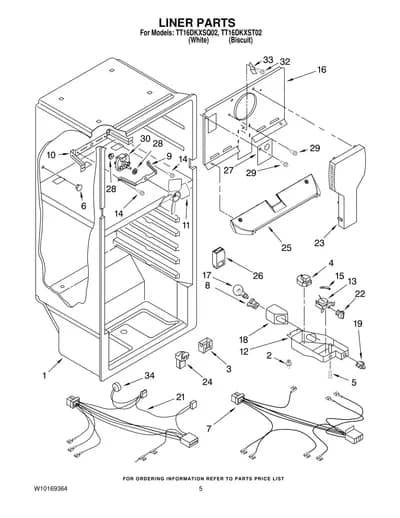

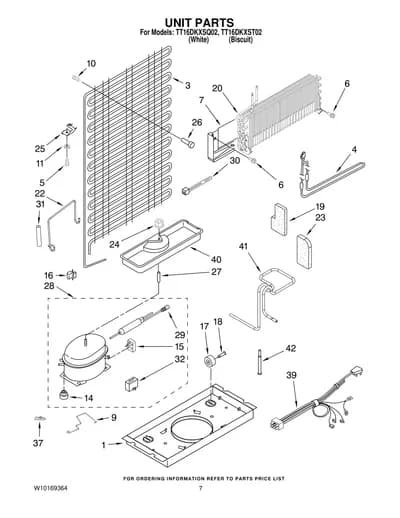

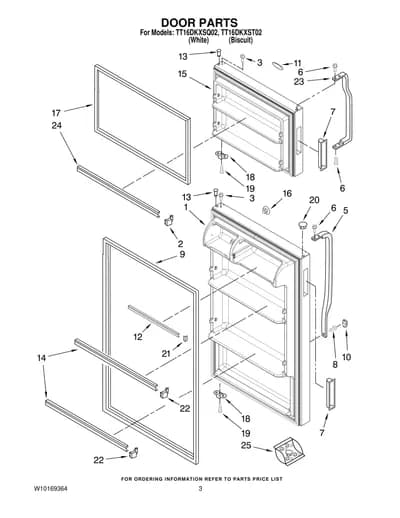

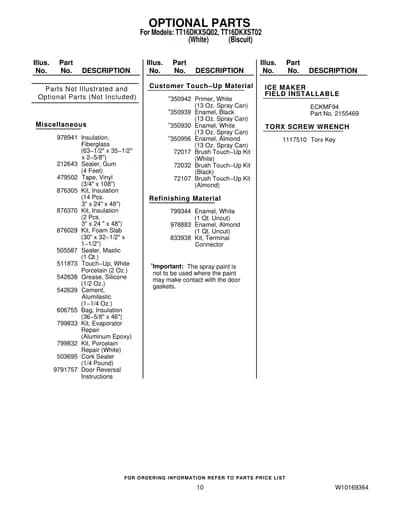

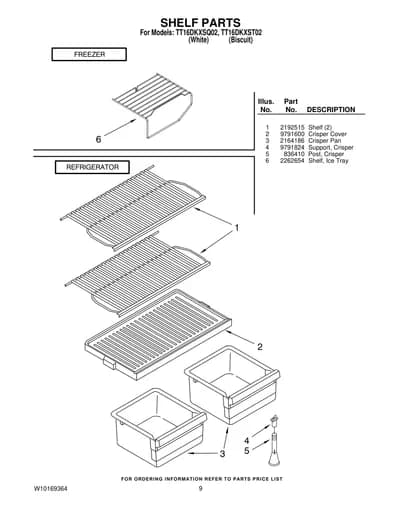

Parts Sections (6)
Diagram

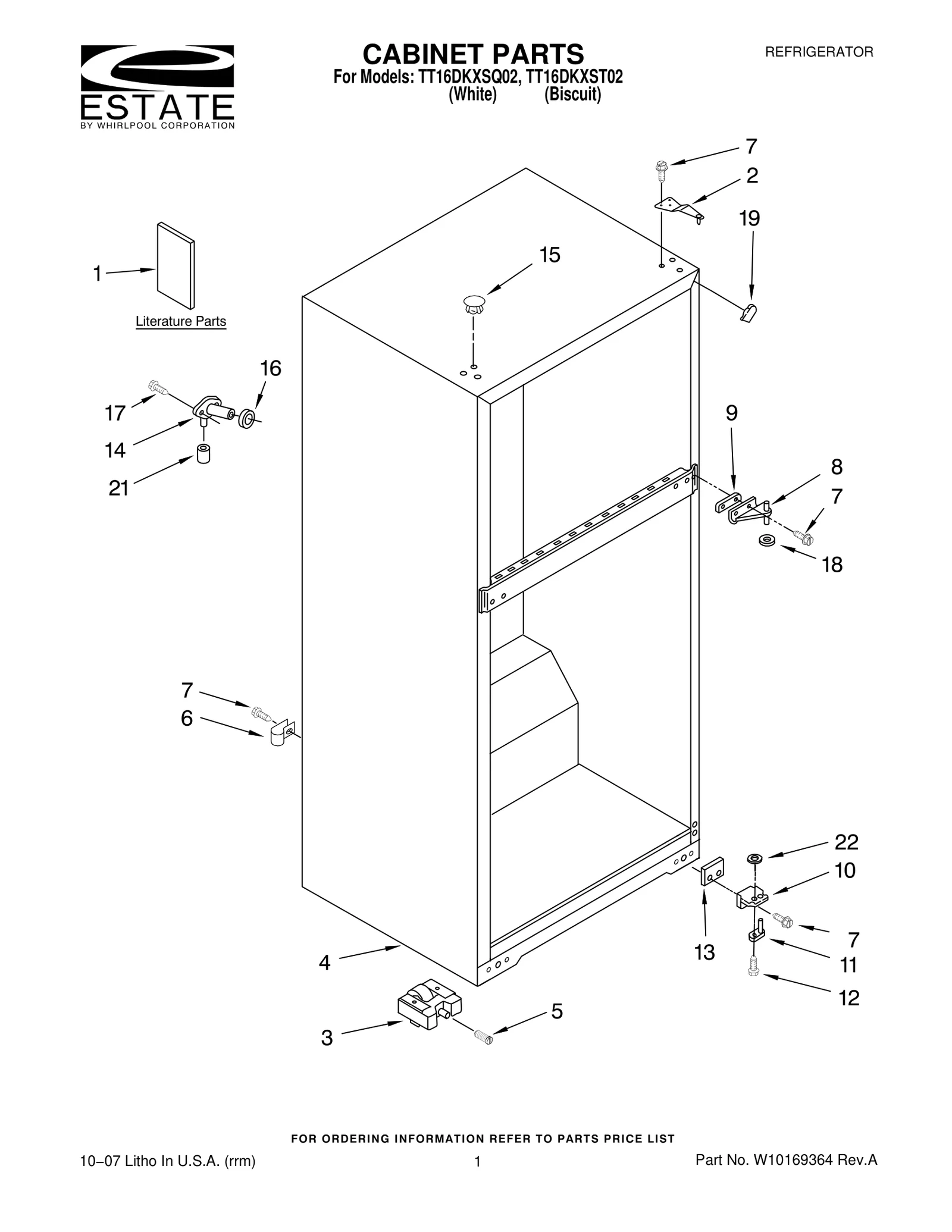

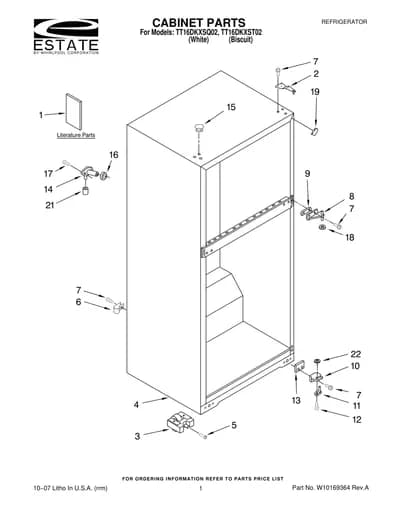

CABINET PARTS
Parts in CABINET PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10155304 Service & | - |
| 1 | – | W10123840 Energy Label | - |
| 1 | – | 2316077 Use & Care Guide | - |
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2261963 Hinge (Top) | $41.83 Part Advantage |
| 3 |  | Roller−Front | - |
| 4 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 5 |  | Screw | - |
| 6 |  | Clamp−Cord | - |
| 7 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 8 |  | WP2166037replaces 2166086 Hinge, Center | $49.72 Part Advantage |
| 9 |  | Shim, Hinge Center | $26.61 Parts Dr |
| 10 |  | WP2325482replaces 2221926 Hinge Butt | $33.11 Parts Dr |
| 11 |  | 9791682NLA Hinge−Pin Bott. | Discontinued |
| 12 |  | WP3428970replaces 3428970 Screw | $5.75 Parts Dr |
| 13 |  | WP2201567replaces 2201567 Shim, Bottom Hinge | $5.95 ApplianceParts Pro |
| 14 |  | WP2196157replaces 2174760 Fitting, Water Tube | $4.42 Part Advantage |
| 15 |  | WP2151652replaces 2201012 Hole Plug (6) — White | $7.50 Part Advantage |
| 15 | | WP2200924replaces 2200924 Hole Plug (6) — Biscuit | $5.95 ApplianceParts Pro |
| 16 |  | WP1106508replaces 1106508 Seal | $6.42 ApplianceParts Pro |
| 17 |  | WP488729replaces 2262176 Screw | $2.41 Part Advantage |
| 18 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 19 |  | W10859322replaces 2166003 Corner Filler — White | $9.57 ApplianceParts Pro |
| 19 | | Corner Filler — Biscuit | - |
| 21 |  | WP487996replaces 487996 Cap Bushing | $6.95 ApplianceParts Pro |
| 22 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
