Model
Roper TUD8750SD2
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRoper
TUD8750SD2Undercounter Dishwasher
12 diagrams139 parts
Parts Sections (12)
Diagram

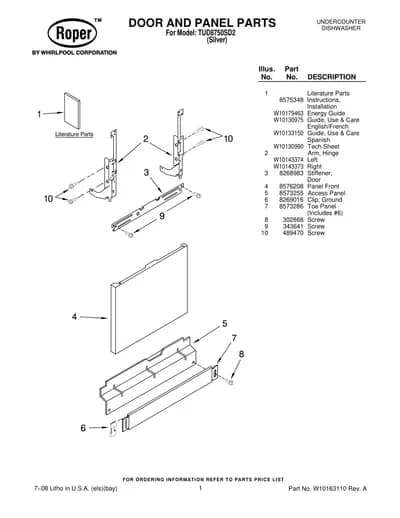

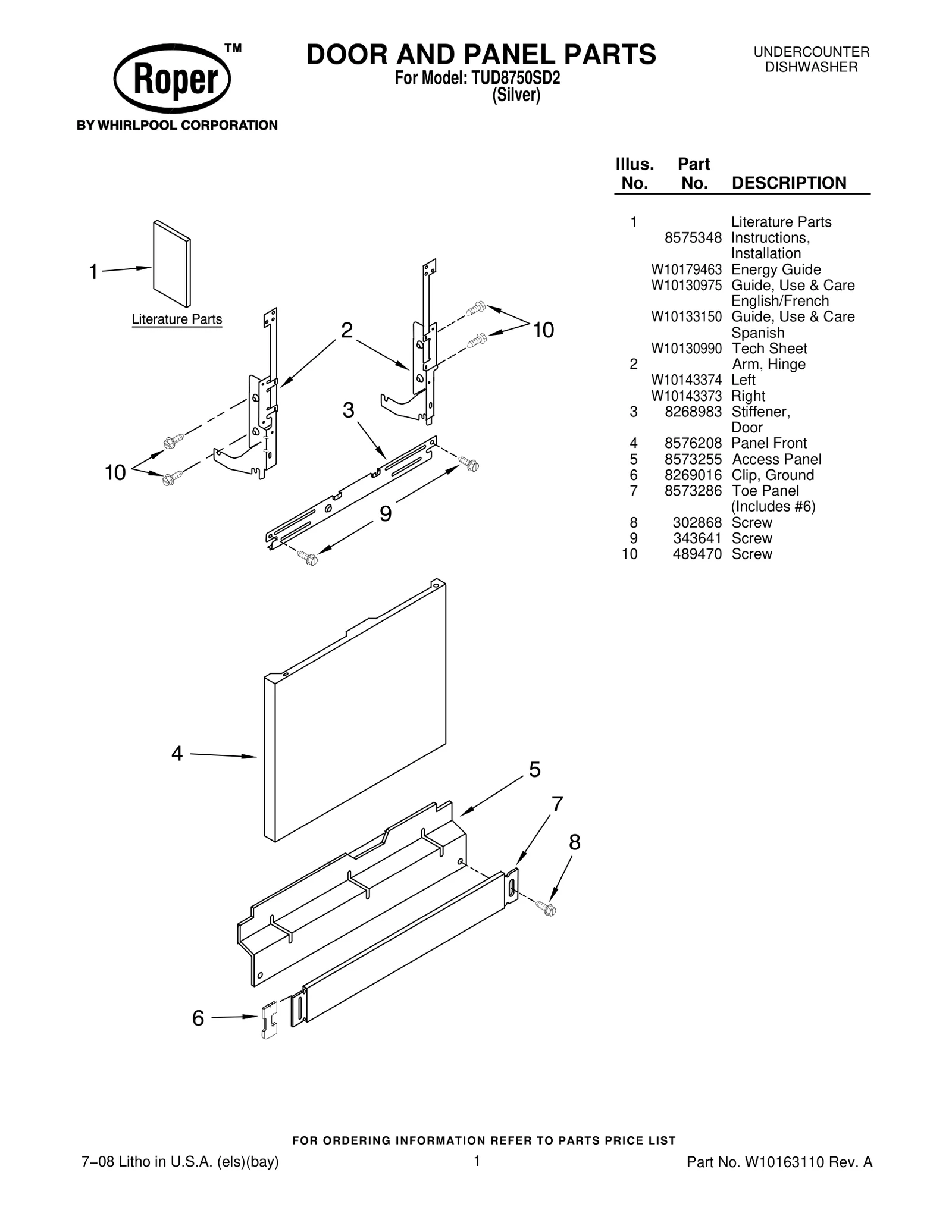

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8575348 Instructions, Installation | - |
| 1 | – | W10179463 Energy Guide | - |
| 1 |  | W10130975NLA Guide, Use & Care English/French | Discontinued |
| 1 | – | W10133150 Guide, Use & Care Spanish | - |
| 1 | | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11613573replaces W10143374 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces W10143373 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 | | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | 8576208NLA Panel Front | Discontinued |
| 5 |  | W11763736replaces 8573255 Access Panel | $16.47 Part Advantage |
| 6 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
| 7 |  | W10871196replaces 8573286 Toe Panel | $66.43 Amazon |
| 8 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 9 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 10 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
