Model
Whirlpool WDE101LVQ0
30" Drop−In Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WDE101LVQ030" Drop−In Electric Range
5 diagrams91 parts

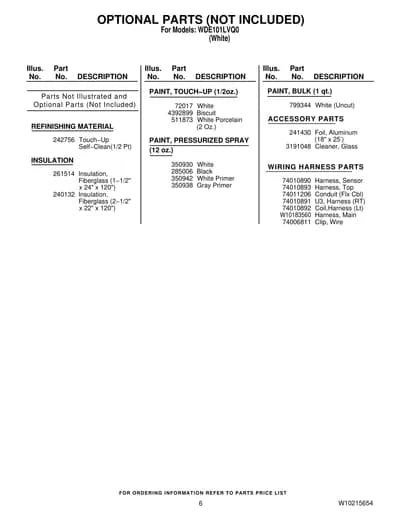

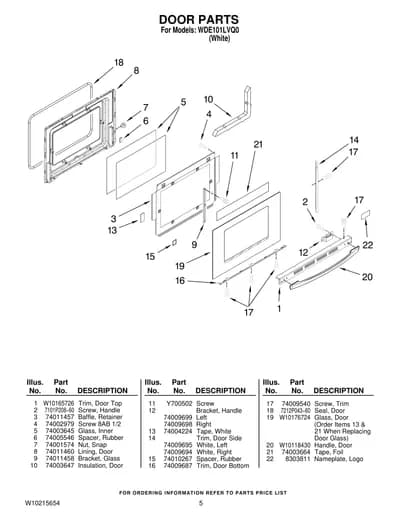

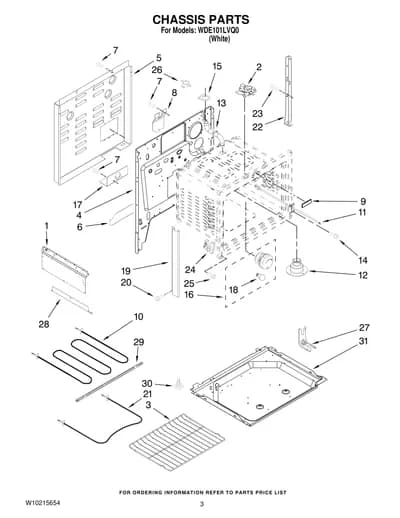

Parts Sections (5)
Diagram

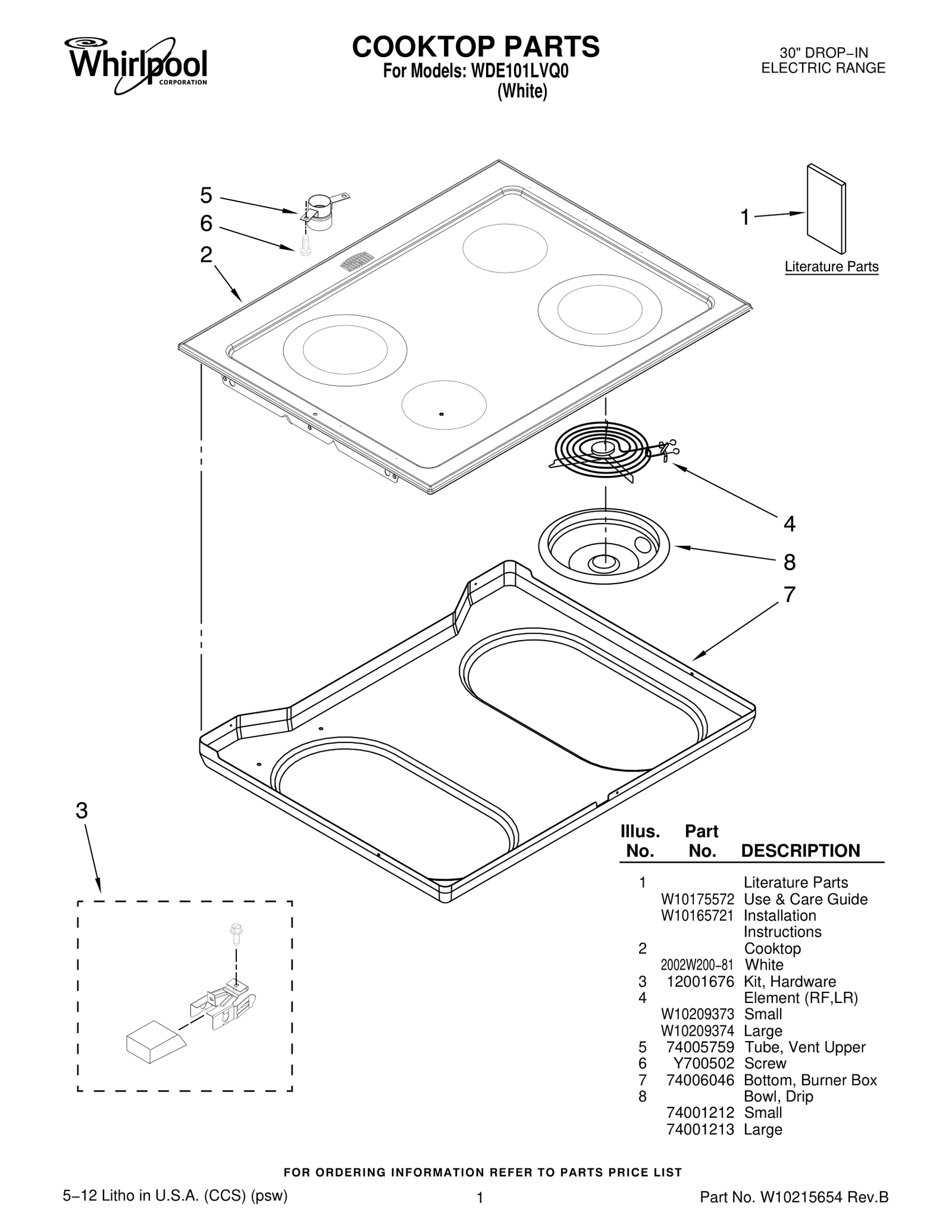

COOKTOP PARTS
Parts in COOKTOP PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175572 Use & Care Guide | - |
| 1 | – | W10165721 Installation Instructions | - |
| 2 | – | N/S Cooktop 2002W200−81 White | - |
| 3 |  | Kit, Hardware | $5.04 Amazon |
| 4 |  | WPW10345407replaces W10209373 Element (RF,LR) — Small | $64.82 Part Advantage |
| 4 |  | WP9761346replaces W10209374 Element (RF,LR) — Large | $40.71 Part Advantage |
| 5 | – | 74005759 Tube, Vent Upper | - |
| 6 |  | WP90767replaces Y700502 Screw | $2.30 Part Advantage |
| 7 | – | 74006046 Bottom, Burner Box | - |
| 8 |  | W10196406RWreplaces 74001212 Bowl, Drip — Small | $14.95 ApplianceParts Pro |
| 8 |  | WPW10196405replaces 74001213 Bowl, Drip — Large | $2.92 Part Advantage |
