Model
Whirlpool WDE350LVS0
30" Drop−In Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WDE350LVS030" Drop−In Electric Range
5 diagrams28 parts
Parts Sections (5)
Diagram

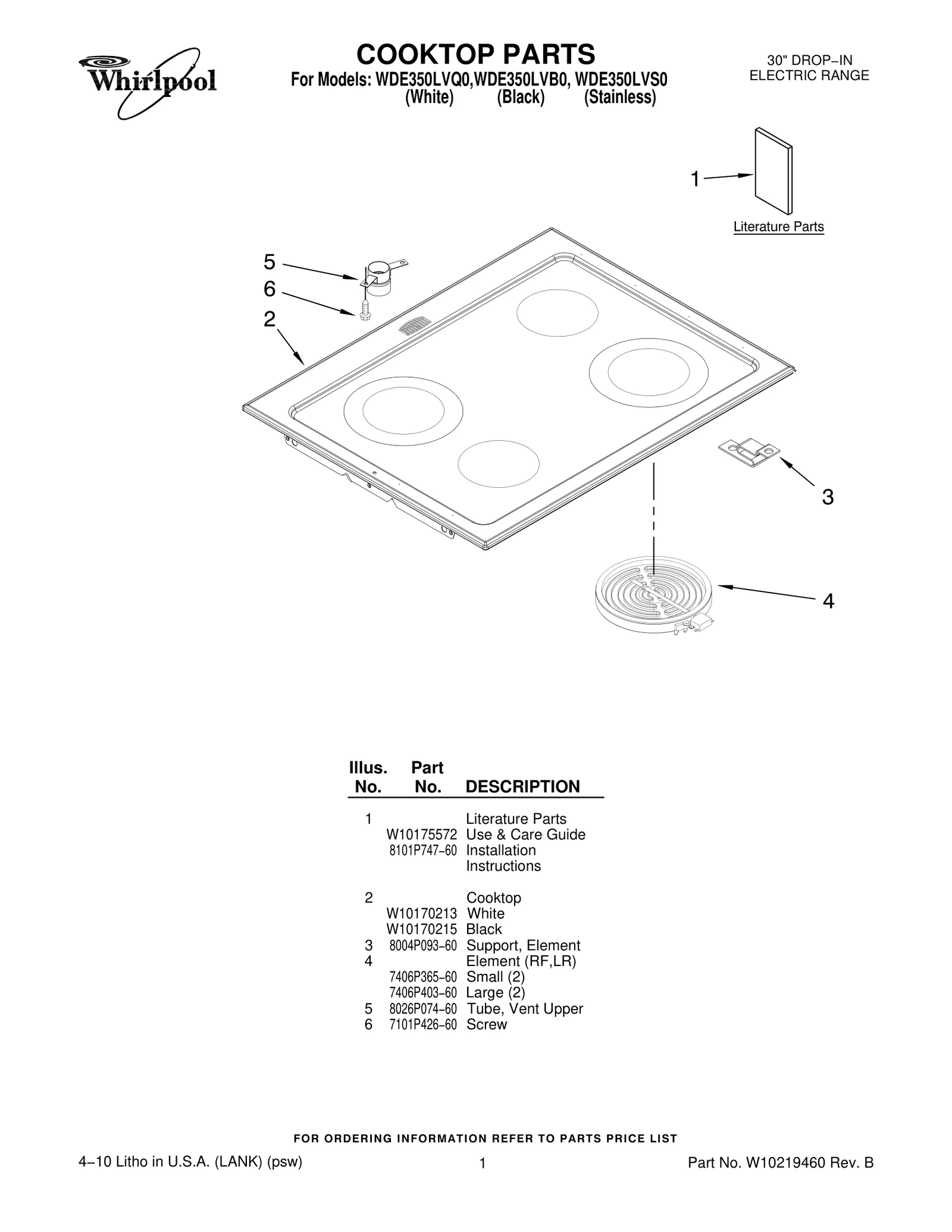

COOKTOP PARTS
Parts in COOKTOP PARTS
7 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175572 Use & Care Guide 8101P747−60 Installation Instructions | - |
| 2 |  | W10170209replaces W10170213 Cooktop — White | - |
| 2 |  | W10170215NLA Cooktop — Black | Discontinued |
| 3 | – | N/S 8004P093−60 Support, Element | - |
| 4 | – | N/S Element (RF,LR) 7406P365−60 Small (2) 7406P403−60 Large (2) | - |
| 5 | – | N/S 8026P074−60 Tube, Vent Upper | - |
| 6 | – | N/S 7101P426−60 Screw | - |
