Model
Whirlpool WED5000VQ1
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WED5000VQ129" Electric Dryer
4 diagrams106 parts

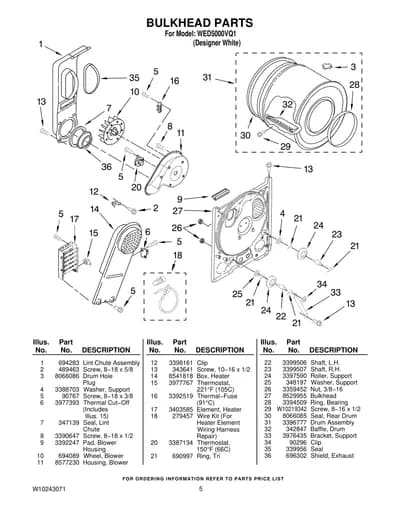

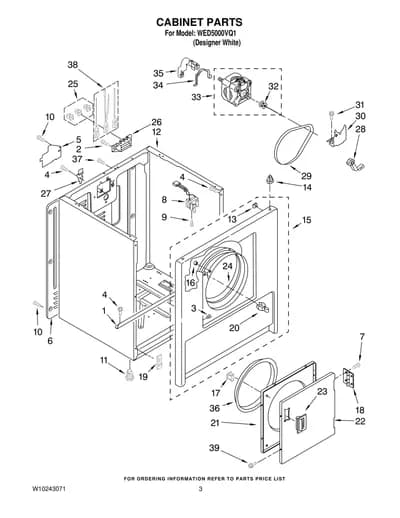

Parts Sections (4)
Diagram

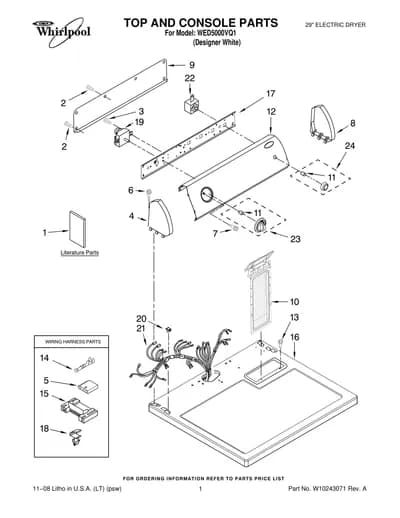

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10150610 Use & Care Guide | - |
| 1 | – | W10042960 Sheet, | - |
| 1 | – | W10150612 Installation | - |
| 1 | – | W10185979 Wiring Diagram | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 |  | WP489069replaces 693995 Screw, Hex Head | $2.30 Part Advantage |
| 3 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 4 |  | W10820038replaces 8271365 Cap, End (L.H.) | $62.39 PartSelect |
| 5 |  | Connector | - |
| 6 |  | WP388326replaces 388326 Screw, Console | $5.00 RepairClinic |
| 7 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 8 | | W10820038replaces 8271359 Cap, End (R.H.) | $62.39 PartSelect |
| 9 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 10 |  | W10874409replaces 8557861 Screen, Lint | $37.37 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 | | Panel, Control | - |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | – | 8557930 Top | - |
| 17 | – | 8544895 Bracket, Control | - |
| 18 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 19 |  | WPW10185970replaces W10185970 Timer, 60 Hz. | $70.69 Amazon |
| 20 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 21 | | W10186068NLA Harness, Wiring | Discontinued |
| 22 |  | WP3977456replaces 3977456 Switch, Push−To−Start | $12.92 Part Advantage |
| 23 |  | Timer Knob Assembly | Discontinued |
| 24 |  | WP8566065replaces 8566065 Knob, Push−To−Start | - |
