Model
Whirlpool WED5700VW0
29"Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WED5700VW029"Electric Dryer
4 diagrams133 parts

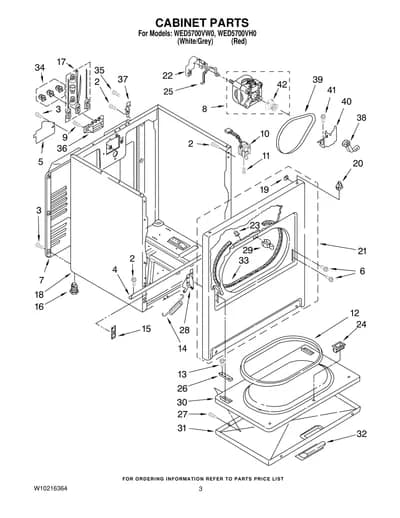

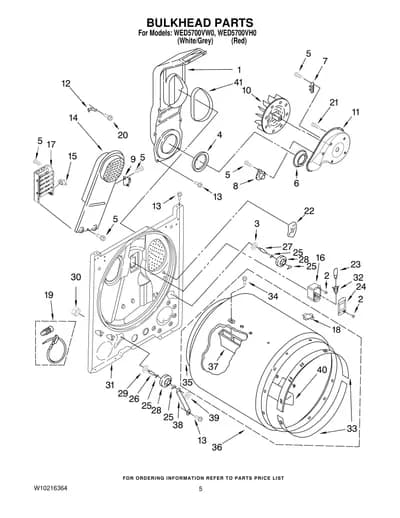

Parts Sections (4)
Diagram

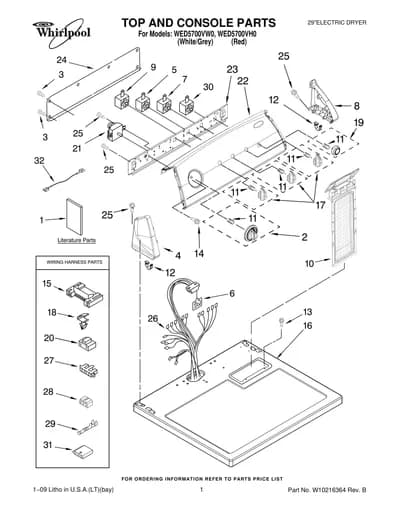

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10103406replaces 8274261 Literature Parts | - |
| 1 | – | W10150612 Instruction | - |
| 1 | – | W10042950 Sheet, | - |
| 1 | – | W10150610 Use & Care Guide | - |
| 1 | – | 8299791 Wiring Diagram | - |
| 2 |  | W10034750NLA Timer Knob Assembly | Discontinued |
| 3 |  | WP489069replaces 693995 Screw, Hex Head | $2.30 Part Advantage |
| 4 | | W11087440replaces 8566035 Cap, End (L.H.) — White | - |
| 4 | – | W10205959 Cap, End (L.H.) — Red | - |
| 5 |  | Switch, Wrinkle Shield | $37.20 RepairClinic |
| 6 |  | WPW10476828replaces 8558178 Control, C−Version | $199.96 ApplianceParts Pro |
| 7 | | WP3398093replaces 3398093 Buzzer, Adjustable | - |
| 8 | | W11087440replaces 8566032 Cap, End (R.H.) — White | - |
| 8 | – | W10205953 Cap, End (R.H.) — Red | - |
| 9 |  | Switch, Temperature | $106.36 PartSelect |
| 10 |  | W11778253replaces 8557857 Screen, Lint — White | $32.05 Part Advantage |
| 10 | | W10205825NLA Screen, Lint — Red | Discontinued |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 |  | WP8563663replaces 8559800 Top — White | $101.61 Part Advantage |
| 16 | – | W10214597 Top — Red | - |
| 17 | | W10034380NLA Knob, Control (3) | Discontinued |
| 18 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 19 |  | Knob, Push−To−Start | $65.16 RepairClinic |
| 20 |  | Connector, | - |
| 21 |  | WP3406725replaces 3406725 Timer, 60 Hz. | $137.04 Part Advantage |
| 22 | | Panel, Control | - |
| 23 | | Bracket, Control | - |
| 24 | | W10103406replaces 8274261 Panel, Rear Console | - |
| 25 |  | WP90767replaces 8533971 Screw, Mounting | $2.30 Part Advantage |
| 26 | | Harness, Wiring | - |
| 27 |  | Connector | - |
| 28 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 29 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 30 |  | WP3398094replaces 3398094 Switch, Push−To−Start | $40.61 Part Advantage |
| 31 |  | Connector | - |
| 32 | | Jumper, Timer Signal Switch | - |
