Whirlpool WED6600VW0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WED6600VW029" Electric Dryer
4 diagrams148 parts
Parts Sections (4)
Diagram

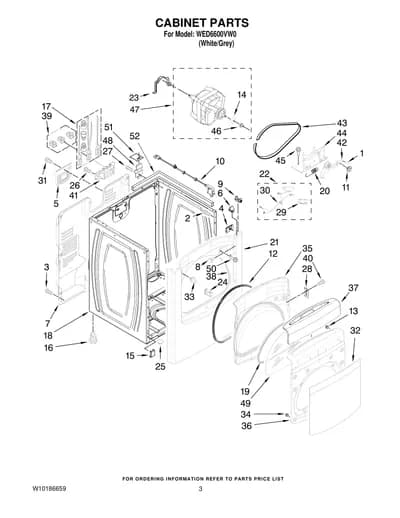

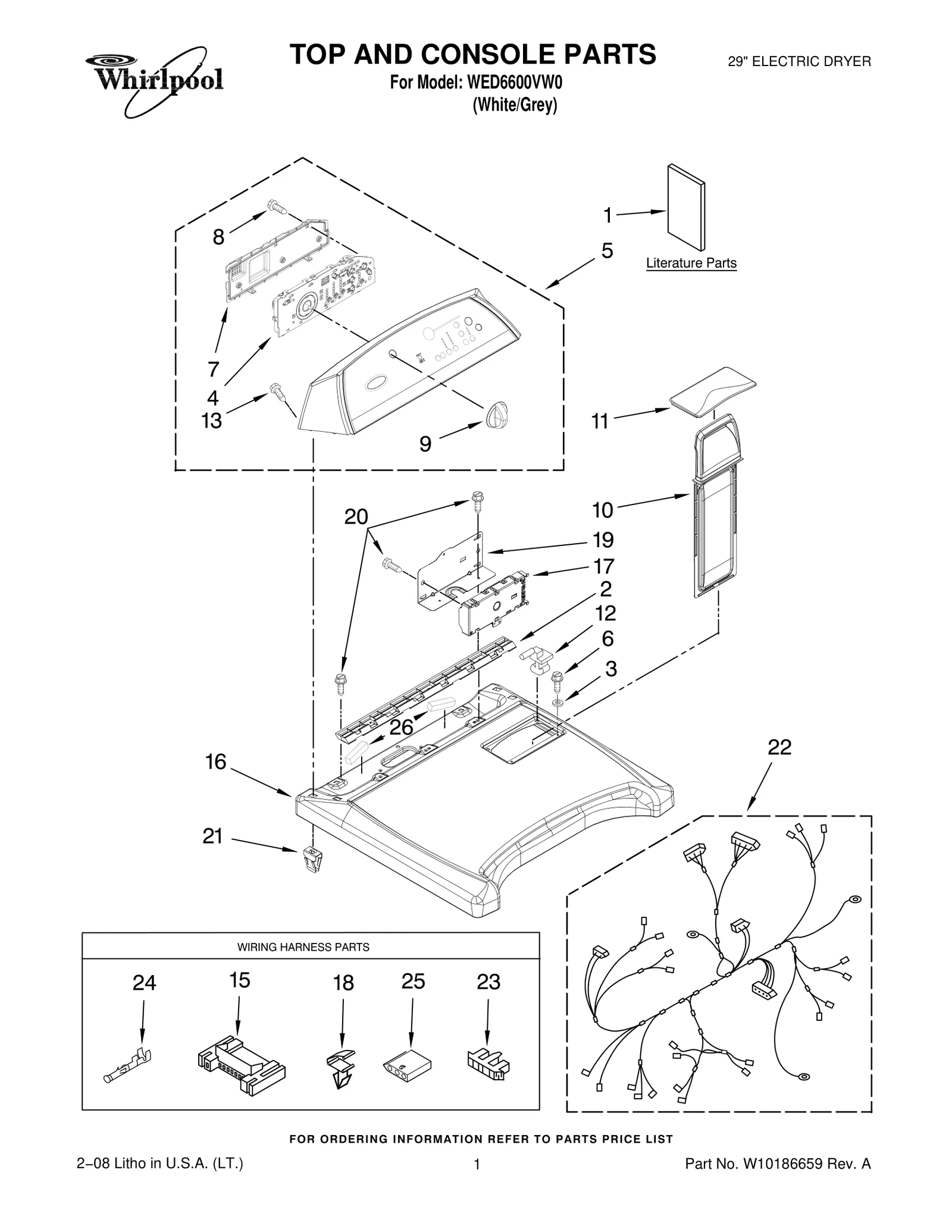

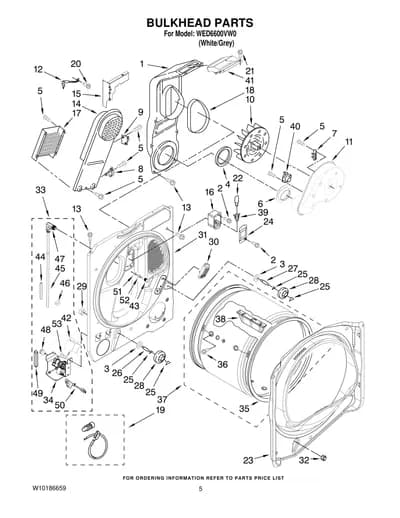

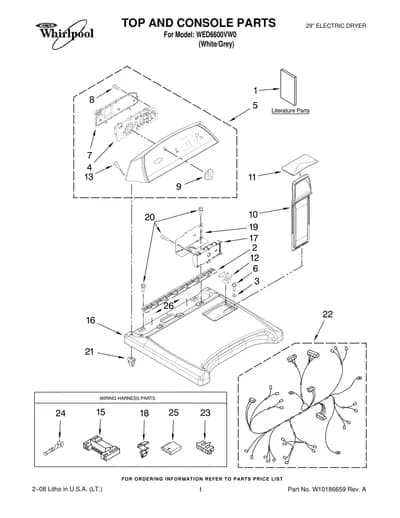

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10156037 Tech Sheet | - |
| 1 | – | W10164159 Guide, Use & Care | - |
| 1 |  | W10150650NLA Guide, Quick Start | Discontinued |
| 1 | – | W10139322 Tip Sheet | - |
| 1 | – | W10134980 Installation, | - |
| 1 | – | W10166435 Performance | - |
| 1 | | 677818NLA Do−It−Yourself | Discontinued |
| 2 | | Bracket, Console | - |
| 3 | – | 237446 Washer (Top/Chute) | - |
| 4 | | W10051165NLA User Interface | Discontinued |
| 5 | | W10146153NLA Panel, Console | Discontinued |
| 6 |  | WP3196557replaces 3196537 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 7 |  | Cover, Rear | - |
| 8 |  | WP4449745replaces W10003770 Screw, 6−19 x 3/64 | - |
| 9 |  | WP8574957replaces 8574957 Knob, Assembly | $54.62 RepairClinic |
| 10 |  | WP8572270replaces 8572270 Assembly, Lint Screen | $45.40 Part Advantage |
| 11 | | W10168227NLA Cover, Lint Screen | Discontinued |
| 12 |  | WPW10044470replaces W10044470 Hinge, R.H. | $3.38 Part Advantage |
| 12 |  | WPW10044480replaces W10044480 Hinge, L.H. | $3.38 Part Advantage |
| 13 |  | Screw | - |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | Top | - |
| 17 | | W10111616NLA Control, Electronic | Discontinued |
| 18 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 19 | | Bracket, Machine Controller | - |
| 20 |  | WP33001882replaces 337686 Screw, 8−18 x 7/16 | $27.07 ApplianceParts Pro |
| 21 |  | Clip, Console | - |
| 22 |  | Harness Wiring | $94.38 RepairClinic |
| 23 |  | Connector | - |
| 24 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 25 |  | Connector, Timer | - |
| 26 | | W10183819replaces W10177487 Seal, Foam Console | - |
